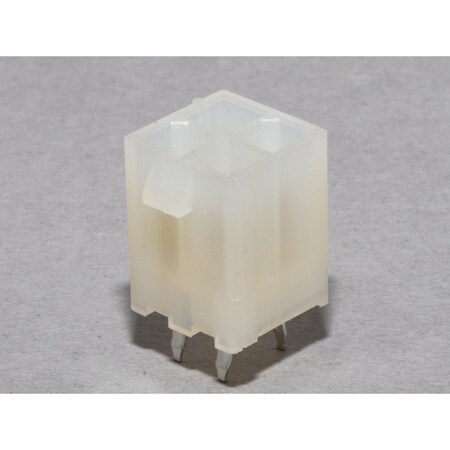

39-29-0043, Conn Power HDR 4 POS 4.2mm Solder ST Thru-Hole 4 Terminal 1 Port Mini-Fit Jr Bag (50 Items)
- Brand: Molex / Waldom
- PartNumber: 39-29-0043
- Model: 39-29-0043
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 5566-04AGS |
| Alternate Part No. | 538-39-29-0043 |
| Brand | Molex |
| Category | Connectors, Interconnec. |
| Circuits (Loaded) | 4 |
| Circuits (maximum) | 4 |
| Color | Natural |
| Color - Resin | Natural |
| Connector Type | Male Pin |
| Contact Finish - Mating | 30.0?in (0.76?m) |
| Contact Finish - Post | Brass |
| Contact Finish Thicknes. | Tin |
| Contact Finish Thicknes. | General Purpose, Indust. |
| Contact Gender | Pin (Male) |
| Contact Length - Mating | 0.138" (3.50mm) |
| Contact Length - Post | - |
| Contact Material | Brass, Polyamide (PA66). |
| Contact Plating | Gold |
| Contact Shape | Gold |
| Contact Type | 0.165" (4.20mm) |
| Current - Maximum per C. | 9.0A |
| Current Rating | 9 A |
| Current Rating (Amps) | - |
| Durability (mating cycl. | 30 |
| Duration at Max. Proces. | 5 |
| Family Name | Mini-Fit Jr. |
| Fastening Type | - |
| Features | - |
| Flammability | 94V-2 |
| Housing Material | Polyamide (PA) |
| Ingress Protection | UL94 V-2 |
| Insulation Color | - |
| Insulation Height | Square |
| Insulation Material | - |
| Manufacturer | Molex |
| Manufacturer Part No. | 39-29-0043 |
| Mated Stacking Heights | 100.0?in (2.54?m) |
| Material - Metal | Brass |
| Material - Plating Mati. | Gold |
| Material - Plating Term. | Matte Tin |
| Material - Resin | Nylon |
| Material Flammability R. | Natural |
| Mfr | Molex |
| Mounting Angle | Vertical |
| Mounting Type | Solder |
| Number of Circuits | 4 |
| Number of Contacts | 6 |
| Number of Positions | 2, 4 |
| Number of Positions Loa. | Board to Cable/Wire |
| Number of Rows | 2, 0.165" (4.20mm) |
| Operating Temperature | - |
| Orientation | Vertical |
| Overall Contact Length | 0.504" (12.80mm) |
| Package | Active |
| Packaging | Bulk |
| Part # Aliases | 0039290043 |
| Part Status | Header |
| PC Tail Length | 3.50mm |
| PCB Thickness - Recomme. | 1.60mm |
| Pitch | 4.2 mm, 4.20 mm (0.165") |
| Pitch - Mating | 4 |
| Pitch - Mating Interface | 4.20mm |
| Pitch - Termination Int. | 4.20mm |
| Plating Material | Gold |
| Plating min - Mating | 0.762?m |
| Plating min - Terminati. | 2.540?m |
| Primary Type | Soft Shell |
| Process Temperature max. | 260 |
| Product Category | Headers & Wire Housings |
| Product Type | Header Assemblies |
| Row Spacing | 5.5 mm |
| Row Spacing - Mating | All |
| Series | Bulk, 5566, 5566 Series |
| Shrouded | Fully |
| Shrouding | Through Hole |
| Special Features | Low-Halogen |
| Style | Shrouded - 4 Wall |
| Temperature Range - Ope. | -40? to +105?C |
| Termination | Locking Ramp |
| Termination Interface: . | Through Hole |
| Termination Style | Through Hole |
| Tradename | Mini-Fit Jr. |
| Type | Header, Pin Header |
| UL | E29179 |
| Voltage - Maximum | 600V |
| Voltage Rating | -, 600 V |
