NTN Bearing 6901ZZNR

B003MUCJM2

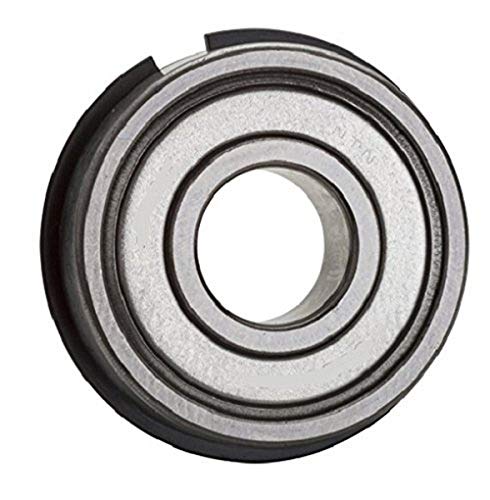

NTN Bearing 6901ZZNR Single Row Deep Groove Radial Ball Bearing with Snap Ring, Normal Clearance, Steel Cage, 12 mm Bore ID, 24 mm OD, 6 mm Width, Double Shielded

NTN Bearing 6901ZZNR Single Row Deep Groove Radial Ball Bearing with Snap Ring, Normal Clearance, Steel Cage, 12 mm Bore ID, 24 mm OD, 6 mm Width, Double Shieldedzoom

Attributes

Key Value
bearing material:High Carbon Chrome Steel
Bore0.472 Inch | 12 Millime.
Bore typeRound
bore type:Round
Cage MaterialSteel
cage material:Steel
Category - BDISingle Row Ball Bearing
closure type:Double Shielded
dynamic load capacity:2890 N
EAN4547359011555
EnclosureDouble Shielded, 2 Meta.
fillet radius:0.3 mm
finish/coating:Uncoated
Harmonized Tariff Code8482.10.50.68
Inch - MetricMetric
inner ring width:6 mm
Internal ClearanceC0-Medium
internal clearance:CN
Internal Special Featur.No
Keyword StringBall
Limiting speed - grease27000 rpm
Long Description12MM Bore; 24MM Outside.
Manufacturer Item Number6901ZZNR
Manufacturer NameNTN
MaterialHigh Carbon Chrome Steel
Maximum Capacity / Fill.No
maximum rpm (grease):27000 rpm
maximum rpm:27000 rpm
Minimum Buy QuantityN/A
NounBearing
Operating temperature r.-40 to 250 F
operating temperature r.-40 to 120
Outer Race Width0.236 Inch | 6 Millimet.
outer ring width:6 mm
Outside Diameter0.945 Inch | 24 Millime.
Precision ClassABEC 1 | ISO P0
precision rating:ISO Class 0
Product Group - BDIB00308
Radial internal clearan.CN
Rolling ElementBall Bearing
row type & fill slot:Single Row Non-Fill Slot
series:69
Snap RingYes
snap ring included:With Snap Ring
static load capacity:1460 N
UNSPSC31171504
Weight / Kilogram0.011
Weight / LBS0.024

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomBDI Express120971043.841535331In StockNTN0.024243.84153533 @ 1
thumbzoommotionindustries.com0454461045.461In StockNTN45.46 @ 1
thumbzoomPurvis6901ZZNR50.61In StockNTN Bearing Corporation50.6 @ 1
thumbzoomMRO Supply278183171.461In StockNTN Bearing171.46 @ 1
