- mpnPANBSN10-L
- brandname: Panduit
- manufacturername: Panduit

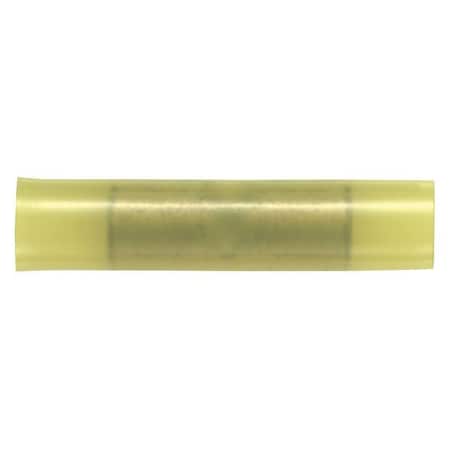

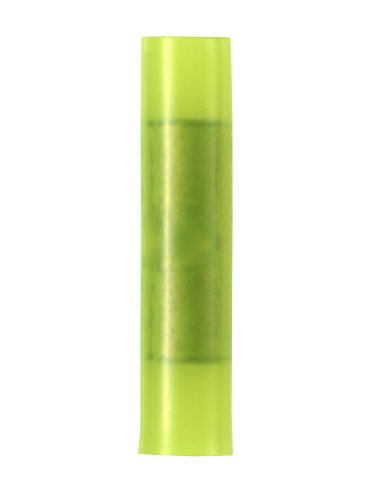

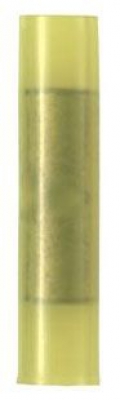

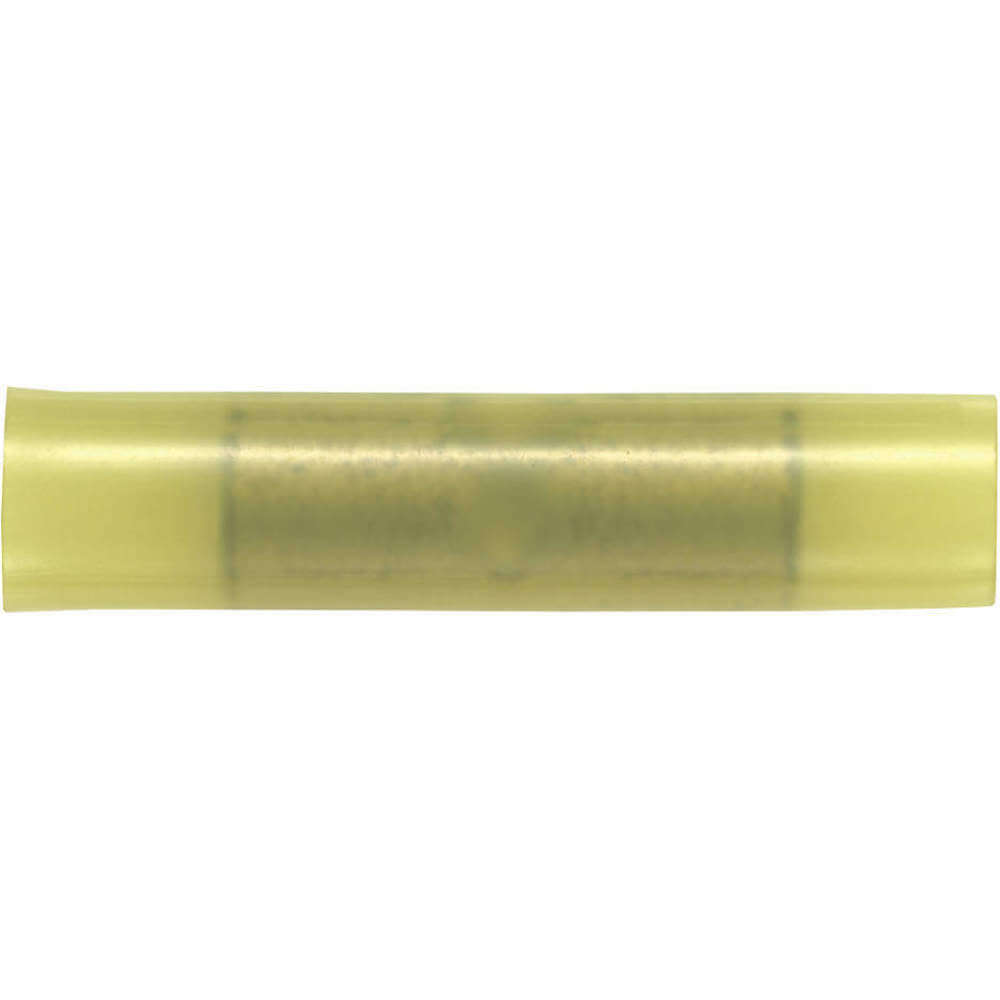

Panduit BSN10-L Butt Splice, Nylon Insulated, 12 - 10 AWG Wire Range, Yellow (50-Pack)
- Brand: Panduit
- PartNumber: BSN10-L
- Model: BSN10-L
- Color: Yellow
- Size: 50-Pack
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 12 - 10 |
| Application | RoHS Directive is not a. |
| Approval | Approval |
| Approvals | CSA, UL |
| Barrel Inner Diameter | Barrel Inner Diameter |
| Barrel Inside Dia. | 0.21 in |
| Barrel Inside Diameter | 0.21 in |
| Barrel Outer Diameter | Barrel Outer Diameter |
| Barrel Outside Diameter | 0.27 in |
| Base Product Number | BSN10 |
| Body Finish | Tin Plated |
| Body Material | Copper |
| Brand | Pan-Term?, Panduit, Pan. |
| Carton | 50 |
| Catalog Number | BSN10-L |
| Category | Connectors, Interconnec. |
| Category Description | Terminals |
| class | One Way |
| Classification | Terminals |
| Color | Yellow |
| Color Family | Yellow |
| Compatible Installation. | CT- 2500/L, CT-100, CT-. |
| Conductor Range | 12 AWG - 10 AWG |
| connection | Standard |
| Connection | Standard |
| Connection Material | Tin-Plated Copper |
| Connection Type | Crimp |
| connector | RoHS Directive is not a. |
| Connector Type | Butt Splice |
| Contact Finish | Tin |
| Contact Material | Copper |
| Country of Origin | MX - Mexico, Mexico |
| Country of Origin (subj. | United States |
| Description | Nylon-Ins Butt Splice |
| ECCN | EAR99 |
| extra long description | PAN BSN10-L Pan-Term? B. |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Finish | Tin-Plated |
| Fixture Type | 600 |
| For Maximum Wire Insula. | 0.21 in |
| For Wire Size | 10 AWG, 12 AWG |
| For Wire Type | Stranded |
| Gross Weight | 0.0169 lbs |
| GTIN | 00074983830046 |
| Insulated | Insulated |
| Insulation | Fully Insulated, Nylon |
| insulation | Nylon |
| Insulation Color | Yellow, Insulation Color |
| Insulation Material | Nylon |
| Insulation Type | Insulation Type, Nylon |
| Item | Splice Connector |
| Item Number | BSN10-L |
| Item Type | Butt Splice |
| Long Description | Panduit BSN10-L Nylon I. |
| Made in USA | No |
| Manufacturer | Panduit |
| Manufacturer Part Number | BSN10-L |
| Manufacturers Part Numb. | BSN10-L |
| Material | Copper, Nylon |
| Max Temp | 221 ?F |
| Max. Temp. | 221 Degrees F |
| Max. Voltage | 600 V |
| Maximum Insulation Diam. | Maximum Insulation Diam. |
| Maximum Operating Tempe. | 221 Degrees F |
| Maximum Voltage | 600 V |
| Maximum Wire Size | 10 AWG |
| media | Yes |
| Mfr | Panduit Corp |
| Minimum Wire Size | 12 AWG |
| Mounting | 9/32 |
| Net Weight | 0.0169 lbs |
| Number of Splices | 2 |
| Number of Wire Entries | 2 |
| Overall Length | 1.14 in |
| Overall Width | 0.27 in |
| Package | Bulk, 250 |
| Package Quantity | 50 |
| Packaging | 50 per Package |
| Plating Material | Tin |
| Product Series | Pan-Term Splices |
| Product Status | Active |
| Product Type | Pan-Term? BSN10-L Butt . |
| Rated Voltage | 600V |
| RoHS Compliant | Yes |
| Seam | Brazed |
| Seam Style | Brazed |
| Series | Pan-Term? |
| Size | 12 - 10 |
| Special Features | Butted Configuration Pr. |
| Standard | C22.2 No 65 |
| standard | C22.2 No 65 |
| Standards | American Bureau of Ship. |
| Strip Length | 5/16 in |
| sub brand | Pan-Term?? |
| Temperature Rating | 221 Degrees Fahrenheit . |
| Terminal Material | Copper |
| Terminal Type | Splice - Butt, Butt Spl. |
| Termination | Crimp |
| Termination Style | Crimp |
| Type | Butt Splice, Insulated,. |
| UL Standards | UL 486C |
| UNSPSC | 39121409, 39121449 - Wi. |
| UPC | 074983830046 |
| UPC ID | UPC ID |
| Voltage Rating | 600, Voltage Rating |
| Volts | 600 V |
| Weight per each | 0.325 |
| Width | 0.27 in. |
| Wire Gauge | 10-12 AWG |
| Wire Range | 12 to 10 AWG, Wire Range |
| Wire Size | 12-10 AWG |
| Wire Size (AWG) | 10 AWG, 11 AWG, 12 AWG |
| Wire Size Range | 12 AWG - 10 AWG |
| Wire Strip Length | 0.281 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | BSN10-L | 1.07 | 1 | 125 | | PANDUIT | | 1.07 @ 50 |
 | cbtcompany.com | BSN10-L | 1.2 | 1 | 150 | | PANDUIT | | 1.2 @ 50 |
 | mecampbell.com | PANBSN10-L | 1.2 | 50 | 50 | 53 | Panduit | | 1.2 @ 50 |
 | Galco | BSN10-L-PNDT | 1.3 | 250 | 50 | | Panduit | 0.0169 | 1.3 @ 250 |
 | crescentelectric.com | 192184 | 1.37 | 1 | 450 | | Panduit | | 1.37 @ 50 |
 | Platt.com | 0016319 | 1.41 | 1 | 150 | | Panduit | | 1.41 @ 50 |
 | Newark | 14AC1947 | 1.52 | 250 | 50 | | PANDUIT | | 1.52 @ 100 |
| us.rs-online.com | 72259593 | 1.57 | 250 | 50 | | Panduit | | 1.57 @ 250 |
| Digi-Key | 317365 | 1.574 | 1 | 53 | | Panduit Corp | | 1.574 @ 50 |
 | Elliott Electric | BSN10L | 1.7825 | 1 | 50 | | Panduit | 0.325 | 1.7825 @ 50 |
 | electricalparts.com | BSN10-L | 55.1936 | 1 | 50 | | Panduit | | 55.1936 @ 50 |
 | Carlton Bates Company | 07498383004 | 59.5 | 1 | 50 | | PANDUIT | | 59.5 @ 50 |
 | alldataresource.com | 250994 | 65.84 | 1 | 50 | | Panduit | | 65.84 @ 50 |
 | jensentools.com | 10014967 | 66.82 | 1 | 50 | | Panduit | | 66.82 @ 50 |
 | Zoro | G0059976 | 80.49 | 1 | 84 | | Panduit | 0.3 | 80.49 @ 50 |
 | Raptor Supplies | AH8XVG | 130.841685 | 1 | 50 | | PANDUIT | | 130.841685 @ 50 |
 | turtle.com | PAN BSN10-L | 141.8 | 1 | 50 | | Panduit | | 141.8 @ 50 |
| Graybar | 88197191 | 146.8544 | 1 | 150 | | Panduit | | 146.8544 @ 50 |
| steinerelectric.com | 6980 | 174.48 | 1 | 50 | | Panduit | | 174.48 @ 50 |
| Kele | BSN10-L | 261.79 | 1 | 50 | | Panduit | | 261.79 @ 50 |
 | gordonelectricsupply.com | BSN10-L | 316.48 | 1 | 50 | 12 | PANDUIT | | 316.48 @ 50 |
