Parker Quick Couplings B20-5BP

B01GEQVGKG

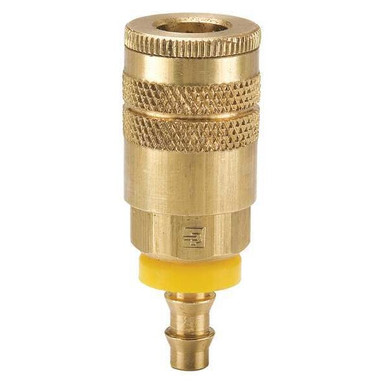

Parker B20-5BP Valved Pneumatic Quick Coupler 3/8 Push-Lok Brass

Parker B20-5BP Valved Pneumatic Quick Coupler 3/8 Push-Lok Brasszoom

Attributes

Key Value
ApplicationPneumatic
Availability:Clearance, In Stock
Barb Size3/8 in
Barb Size - Quick Conne.3/8"
BarbedYes
Body Size - Quick Conne.1/4 in
BrandParker
Brand:Parker?
Connection TypeHose Barb
Country of Origin (subj.United States
Country:United States
Coupling ComponentSocket
Coupling Locking TypeSleeve
Coupling Size1/4 in
Current Stock57
Description:COUPLER
Dimensions0.9 in Dia
Dimensions:0.9 in Dia x 2.47 in L
Domestic/ImportDomestic
Domestic/Import:Domestic
End StyleQuick Connect Coupler x.
End Style:Push-Lok Hose Barb
Fitting TypeMale Hose Barb
Fitting/Connector Type:Coupling
For Hose I.D.3/8 in
For Use WithPneumatic
Hex Size3/4 in
Hex Size:3/4 in
Hose Connection - Quick.Push On
Hose Fitting GenderMale
Hose Fitting Size3/8 in
Inch/MetricInch
Includes ValveYes
Industry Standards:MIL-C-4109F, ISO 6150-B
Inner Diameter0.375 Inch
InterchangeIndustrial Interchange
Interchange TypeIndustrial
Interchange Type - Quic.Industrial
International ShippingNo
ItemQuick Connect Hose Coup.
Length2.47 in
Locking Type - Quick Co.Sleeve
ManufacturerParker Hannifin - Pione.
Manufacturer:Parker Hannifin
MaterialBrass
Material - Quick Connec.Brass
Max Pressure300 PSI (20 bar)
Max. Flow25 cfm
Max. Flow Rate707.92 lpm
Max. Pressure - Quick C.300 psi
Max. Working Pressure @.300 psi
MFG Part #:B20-5BP
MpnB20-5BP
MPN:B20-5BP
Nominal Size1/4 x 3/8 in
Nominal Size:1/4 x 3/8 in
Overall Length2 31/64 in
Parker DivisionQuick Coupling
Parker GroupFluid Connector
Pressure Rating300 psi
Pressure Rating:300 psi
Promotion RestrictionNot eligible for promot.
Quick Connect Air Coupl.3/8"
Quick Connect Air Coupl.1/4"
Quick Connect Air Coupl.Push On
Quick Connect Air Coupl.Industrial
Quick Connect Air Coupl.Sleeve
Quick Connect Air Coupl.Brass
Quick Connect Air Coupl.300 psi
Quick Connect Air Coupl.Quick Coupler Body
Quick Connect Air Coupl.Nitrile
RSPID:20177312
RSPN:20177312
Seal MaterialNitrile
Seals - Quick Connect A.Nitrile
Series20, 20 Series
Series:20
SKUZO-G4873653
Standard Pack:Order QTY must be in mu.
Supplier:Parker Hannifin - Pione.
Temp. Range-40 Degrees to 250 Deg.
Temperature Rating-40 to 250 deg F
Temperature Rating:-40 to 250 deg F
TypeIndustrial Interchange .
Type:General Purpose, Straig.
UNSPSC:27131613
Valve TypeTubular

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsustainablesupply.comC268015614.181In StockParker0.214.18 @ 1
kscdirect.comPIO B20-5BP15.341In StockParker Hannifin - Pioneer Division15.34 @ 1
grainger.caWWG30N26015.49595811In StockPARKER0.215.4959581 @ 1
MRO Stop64402094116.161In StockParker16.16 @ 1
thumbzoomZoroG487365318.2311258Parker0.218.23 @ 1
thumbzoomWilsonB20-5BP19.651In StockParker - Quick Coupling Division19.65 @ 1
thumbzoombscsource.comB205BP19.891In StockParker19.89 @ 1
thumbzoomGuardian8493075921.321In StockParker21.32 @ 1
Airline HydraulicsPARKER B20-5BP21.341In StockParker21.34 @ 1
AmazonTPB01GEQVGKG22.851In Stock2Parker Quick Couplings22.85 @ 1
thumbzoomNational Supply Network8493075930.141In StockParker30.14 @ 1
thumbzoomRaptor SuppliesAC4VXQ30.29135851In StockPARKER30.2913585 @ 1
thumbzoomsimsupply.comZO-G487365332.95157Parker32.95 @ 1
thumbzoomResourceful SupplyB20-5BP57.51012Parker Hannifin57.5 @ 10
