CAI - SQUARE D 9080GK6

B07J2WKHV9

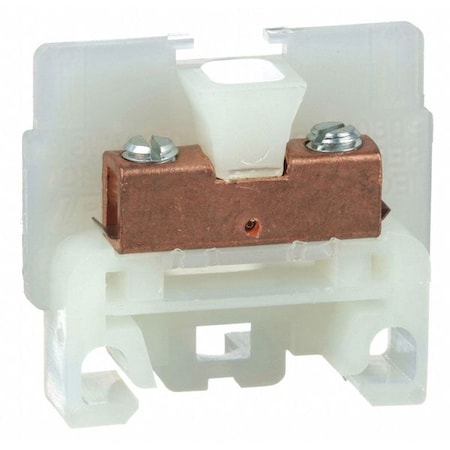

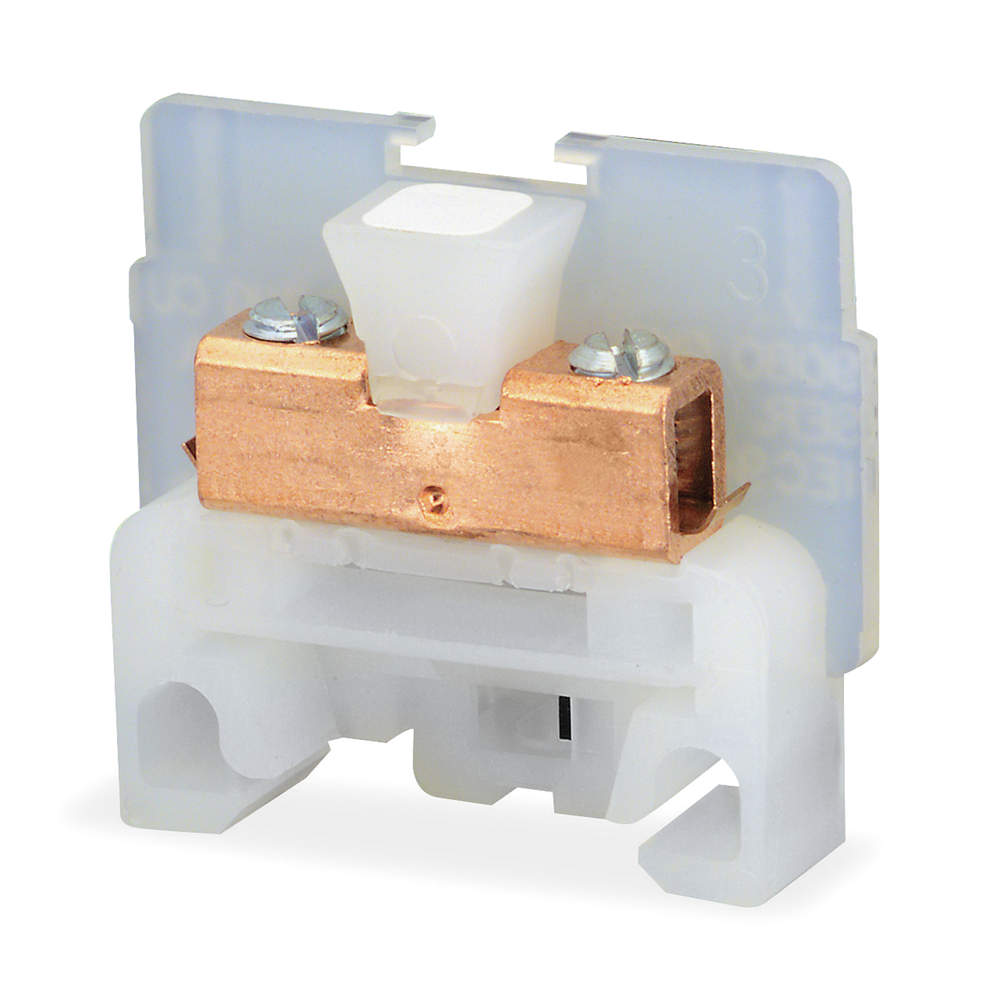

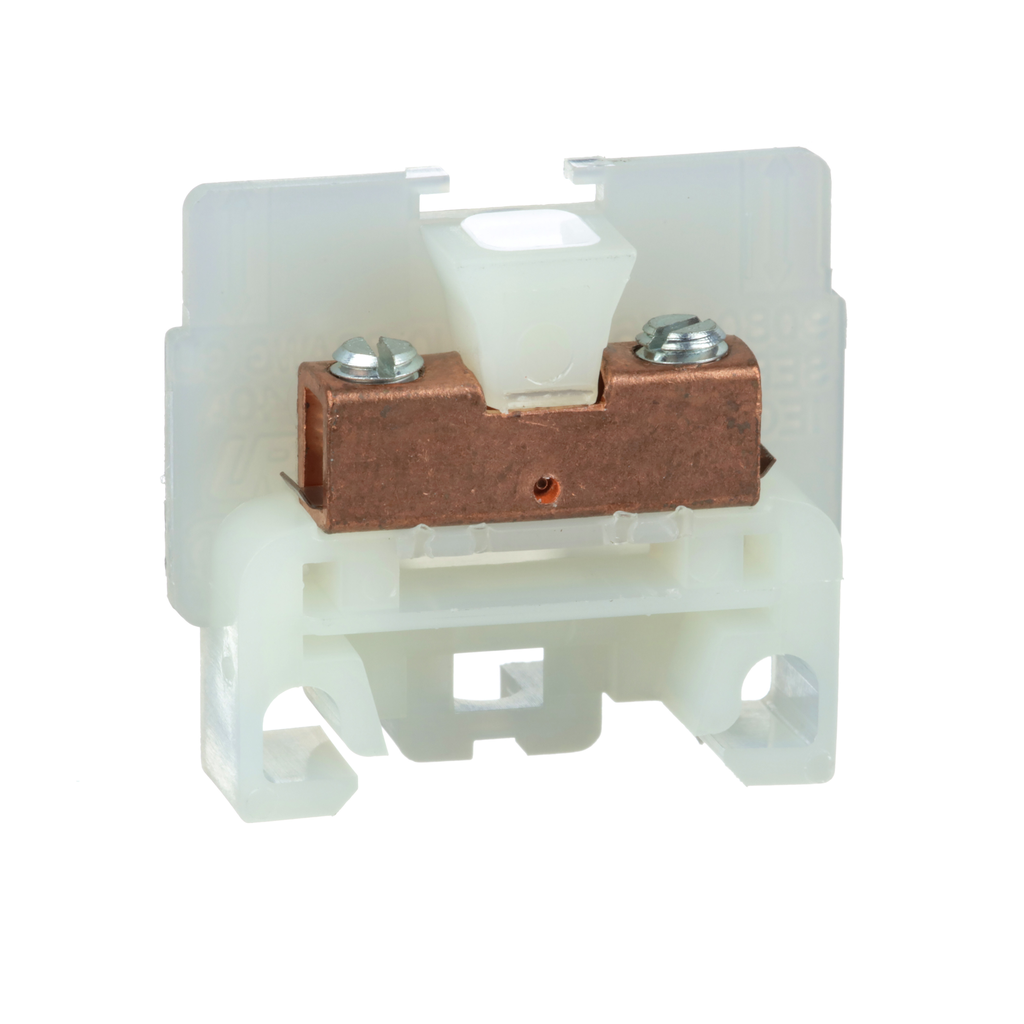

Square D Terminal Block, 600VAC Voltage, 40 Amps, 10 AWG Max. Wire Size, 22 AWG Min. Wire Size

Square D Terminal Block, 600VAC Voltage, 40 Amps, 10 AWG Max. Wire Size, 22 AWG Min. Wire Sizezoom

Attributes

Key Value
2-Pole Jumper Compatibi.5B366
2-Pole Jumpers5B366
6-Pole Jumper Compatibi.5B365
6-Pole Jumpers5B365
[Ue] Rated Operational .600 V AC/DC
Ambient Air Temperature.-40-257 ?F
Amps40 A
Application9080G,GK6B
Awg GaugeAWG 22...AWG 10 copper
BrandSquare D
California Proposition .Lead and lead compounds.
Catalog Number9080GK6
Channel Size35mm/GH
China Rohs RegulationPro-active China RoHS d.
Circuit Protection TypeNone
ColorWhite, natural
Compatible Grainger Par.2DC89, 2DC96, 2DC97, 2D.
Compatible Manufacturer.9080 GH21, 9080 GH31, 9.
ConnectionLug copper 11-12 lbf.in.
Connection TypeScrew Clamp
Connections - Terminals.AWG 22...AWG 10 copper)
Country of OriginMexico
Current40 A
Current Rating40 A
Depth0.35 in, 1.4 in
Electrical Connectioncopper box lugs
End Barrier5B363
End Barrier Compatibili.5B363
Eu Rohs DirectiveCompliant
Family SeriesSquare D Terminal Blocks
For Channel Rail Size35 mm
For Conductor MaterialCopper
For Conductor TypeSolid, Stranded
For Fuse Diameter3 1/32 in
For Maximum Wire Size10 AWG
For Minimum Wire Size22 AWG
Fuse SizeN/A
Gross Weight0.025 lbs
GTIN00785901000822
Height1.39 in
Housing Colournatural
Housing MaterialNylon
IncludesAdhesive Backed Strips,.
ItemTerminal Block
Item Number9080GK6
Item TypeTerminal block;GK6B
Line Rated Current40-40 A CSA || 70-70 A .
Localisation On Devicestandard
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number427637
MaterialNylon block
Max. Wire Size10 AWG
Maximum Operating Tempe.257 Degrees F
Maximum Voltage600V AC/DC
Mercury FreeYes
Min. Wire Size22 AWG
Minimum Operating Tempe.-40 Degrees F
MountingPanel Mount
Mounting Support9080GH track || panel
Mounting TypePanel
Net Weight0.025 lbs
Number of Connections2
Number of Poles1
Number Of Terminal Bloc.35 per foot
Number of Tiers2
Overall Depth0.35 in
Overall Length1.39 in
Overall Width1.4 in
Pieces per Foot34
Product CertificationsCSA file 62144 class 62.
Product CompatibilityGK6B
Product Or Component Ty.Terminal Block
Pvc FreeYes
Quantity Per Setset of 50
Range Of Product9080G
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
RoHS CompliantYes
Rohs Exemption Informat.Yes
Sensor Block IndicatorNone
Series9080 Series
Size0.35 IN,1.39 IN,1.4 IN
Spacing35.56 mm
Special Featuresset of 50
StandardCSA file 62144 class 62.
StandardsUL94V2
Temp. Range-40 Degrees to 275 Deg.
Terminal Block TypeSolderless Box Lug
Terminal MaterialCopper
Terminal TypeSolderless Box Lug
Termination StyleScrew
Torque12 lb-in
Toxic Heavy Metal FreeYes
UL 94 Flammability Rati.V-2
UPC785901000822
UPC Code785901000822
Voltage600V AC
Voltage Rating600 V AC/DC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width0.35 in, 1.4 in
Wire Entry PositionSide
Wire SizeAWG 22...AWG 10 copper
Wire Size Ranges22 AWG - 10 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Radwell9080-GK61.715058SCHNEIDER%20ELECTRIC1.71 @ 50
steinerelectric.com314222.27158Square D?2.27 @ 1
thumbzoomZoroG26471972.2919025Square D0.022.29 @ 1
us.rs-online.com700610082.521116Square D2.52 @ 1
thumbzoomGalco9080GK6-SQD2.57158Square D0.0252.57 @ 1
thumbzoomNewark11R79502.855058SQUARE D BY SCHNEIDER ELECTRIC2.85 @ 50
thumbzoommostelectric.com9080GK63.091605SQUARE D/TELEMECANIQUE3.09 @ 1
thumbzoomsustainablesupply.comC12036393.34158Square D0.023.34 @ 1
Grainger5B3643.55148380SQUARE D3.55 @ 1
thumbzoommayerelectric.comSQD9080GK63.83158SQUARE D3.83 @ 1
thumbzoomcrescentelectric.com764794.1412650Square D4.14 @ 1
thumbzoomRaptor SuppliesAG7CHE5.2403715158SQUARE D5.2403715 @ 1
grainger.caSQD9080GK66.43789922158SQUARE D0.026.43789922 @ 1
AmazonTPB0137I18PC8.771585SQUARE D8.77 @ 1
AmazonUNKB0137I18PC8.77158SQUARE D8.77 @ 1
thumbzoomNational Supply Network3683416613.64158Square D13.64 @ 1
standardelectricsupply.com968610115.0127Square D115.0 @ 1
