TE Connectivity 1-284047-4

mpn1-284047-4
brandname: TE Connectivity / AMP Brand
manufacturername: TE Connectivity / AMP Brand

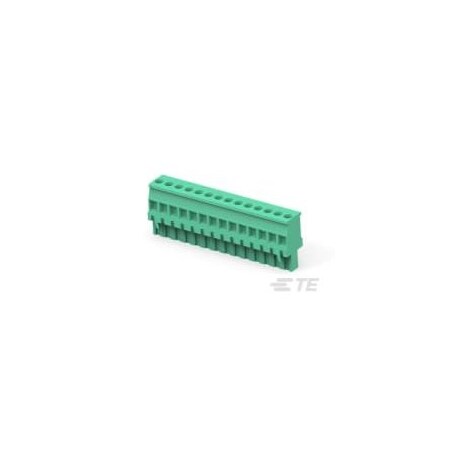

1-284047-4, Terminal Block, Vertical Plug, Stacking, Right Hand, 5.08mm Pitch (2 Items)

1-284047-4, Terminal Block, Vertical Plug, Stacking, Right Hand, 5.08mm Pitch (2 Items)

zoom

Brand: TE Connectivity
PartNumber: 1-284047-4
Model: 1-284047-4
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Base Product Number	284047
Category	Connectors, Interconnec.
Color	Green
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Contact Tail Length	-
Country of Origin (subj.	Italy
Current - IEC	-
Current - UL	15 A
Description	TERM BLOCK PLUG 14POS 5.
Detailed Description	14 Position Terminal Bl.
Digi-Key Part Number	1-284047-4-ND
Features	Retention Latches (Wire.
Header Orientation	-
Housing Material	Polyamide (PA66), Nylon.
Ingress Protection	-
Insulation Height	0.984" (25.00mm)
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	1-284047-4
Manufacturer Standard L.	18 Weeks
Material Flammability R.	UL94 V-0
Mfr	TE Connectivity AMP Con.
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	14
Operating Temperature	-40?C ~ 110?C
Package	Bulk
Pitch	0.200" (5.08mm)
Plug Wire Entry	90?
Positions Per Level	14
Product Status	Active
Screw Size	M3
Series	Buchanan
Termination Style	Screw - Rising Cage Cla.
Torque - Screw	0.79 Nm (7.0 Lb-In)
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - A.	12-30 AWG
Wire Gauge or Range - m.	0.05-3mm?
Wire Strip Length	6-7.5mm

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Digi-Key	1148155	3.32	25	12617		TE Connectivity AMP Connectors		3.32 @ 25
	Onlinecomponents.com	1-284047-4	11.33	1	15		TE Connectivity / AMP Brand		11.33 @ 1
	Zoro	G400930089	17.93	100	In Stock		Te Connectivity		17.93 @ 100
	Newark	41AJ0634	24.02	1	1		AMP - TE CONNECTIVITY		24.02 @ 1
