TE Connectivity 750640-1

mpn750640-1
brandname: TE Connectivity AMP Connectors
manufacturername: TE Connectivity AMP Connectors

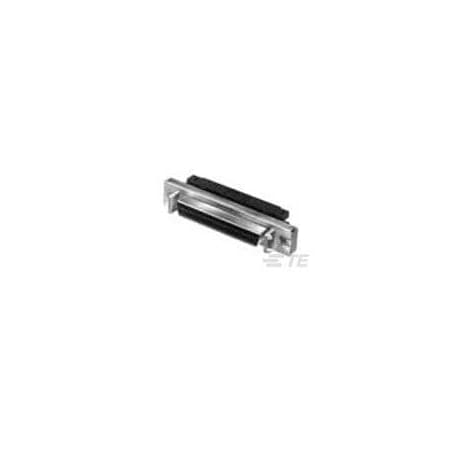

750640-1, 50 50SR Panel Mount RCPT

750640-1, 50 50SR Panel Mount RCPT

zoom

Brand: TE Connectivity
PartNumber: 750640-1
Model: 750640-1
PackageQuantity: 1
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Application	Signal
Backset Spacing	-
Base Product Number	750640
Category	Connectors, Interconnec.
Color	Black
Connection Material	Phosphor Bronze
Connector Style	D-Type
Connector Terminates To	Wire & Cable
Connector Type	Receptacle, Receptacle,.
Contact Finish	Gold Plated; Gold Flash.
Contact Finish Thickness	-
Contact Form	-
Contact Material	Phosphor Bronze
Contact Plating Thickne.	30 ?in
Contact Type	Signal
Current Rating	1 A
Current Rating (Amps)	1A
Description	CONN D-TYPE RCPT 50P PN.
Detailed Description	50 Position D-Type Rece.
Dielectric Material	Polyester
Digi-Key Part Number	A3313-ND
Features	Terminating Cover, Pane.
Finish	Nickel Over Copper
Flammability Rating	UL 94 V-0
Flange Feature	Housing/Shell (4-40); L.
Hole Center to Center	1.27 mm
Ingress Protection	-
Item	Connector
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	750640-1
Manufacturer Standard L.	17 Weeks
Material	Polyester
Material Flammability R.	UL94 V-0
Max. Insulation Dia.	0.91 mm
Max. Single Wire Size	28 AWG
Max. Temp.	105?C
Mfr	TE Connectivity AMP Con.
Min. Single Wire Size	30 AWG
Mounting Type	Panel Mount
Number of Contacts	50
Number of Positions	50
Number of Rows	2
Operating Temperature	-55?C ~ 105?C
Package	Tube
Package Quantity	1
Part Status	Active
Product Status	Active
Series	AMPLIMITE .050 III
Shell Material, Finish	Steel, Nickel Plated
Shell Size, Connector L.	0.050 Pitch x 0.100 Row.
Terminal Finish	Tin-Lead
Terminal Type	Insulation Displacement.
Termination	IDC, Ribbon Cable
Voltage Rating	30V
Wire Gauge	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	TE CONNECTIVITY AMP BRAND 750640-1	15.14	10	141		TE CONNECTIVITY/AMP BRAND		15.14 @ 10
	Newark	52F5743	16.93	320	In Stock		AMP - TE CONNECTIVITY		16.93 @ 320
	Digi-Key	183831	22.13	10	141		TE Connectivity AMP Connectors		22.13 @ 10
	Onlinecomponents.com	750640-1	38.24	1	193		TE Connectivity / AMP Brand		38.24 @ 1
	Zoro	G501044685	189.5	1	In Stock		Te Connectivity		189.5 @ 1
