- mpnMNG14BCX
- brandname: 3-M
- manufacturername: 3-M

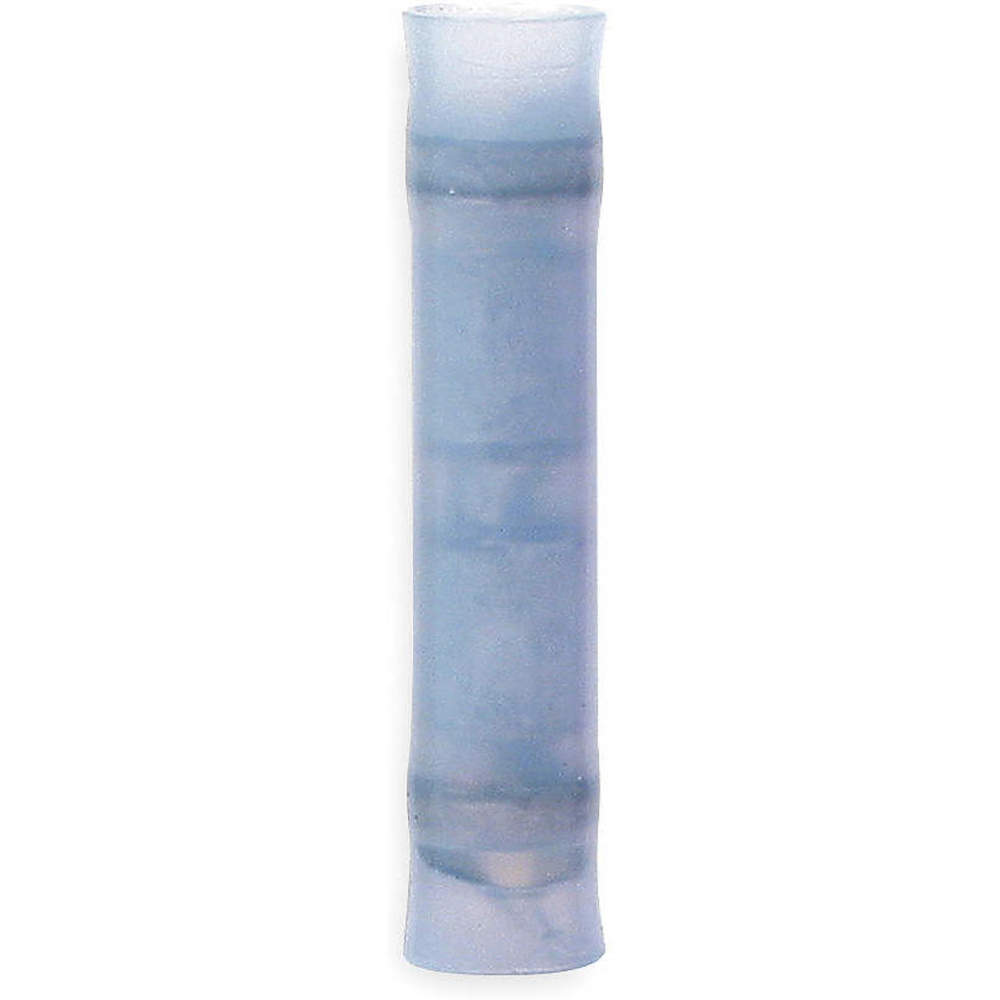

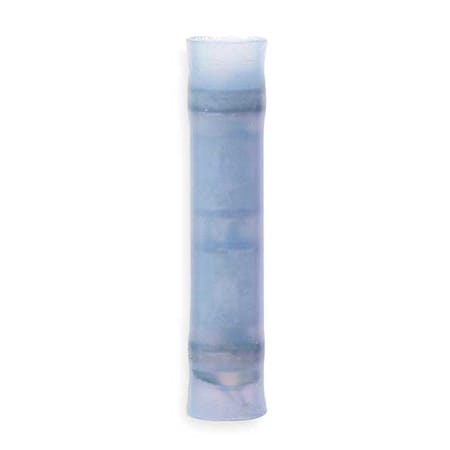

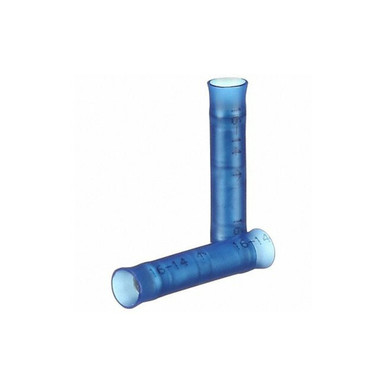

3M Mng14Bcx 16-14 Ins Butt Splice
- Brand: 3M
- PartNumber: MNG14BCX
- Model: MNG14BCX
- Size: One Size
- PackageQuantity: 1
- Manufacturer: 3M
- Label: 3M
Attributes
| Key | Value |
|---|
| 3M Number | MNG14BCX |
| Allowable Gauge Range | 16 - 14 |
| Alternate Mfr Part Numb. | 30051128586793 |
| Barrel Inside Dia. | 0.09 in |
| Barrel Inside Diameter | 0.09 in |
| Barrel Length | 0.25 in |
| Body Finish | Tin Plated |
| Body Material | Copper |
| Brand | Scotchlok, 3M |
| Category | Electrical Terminals |
| Color | Blue |
| Color Family | Blue |
| Compatible Installation. | TH-440, TH-450, TR-482,. |
| Connection Material | Copper |
| Connection Type | Crimp |
| Connector Type | Butt Splice |
| Contact Material | Brass |
| Country of Origin | US - United States, USA |
| Current Stock | 42 |
| ECCN | EAR99 |
| For Maximum Wire Insula. | 0.17 in |
| For Wire Size | 14 AWG, 16 AWG |
| Inside Diameter | 0.09 in |
| Insulation Color | Blue |
| Insulation Colour | Blue |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| International Shipping | No |
| Item | Splice Connector |
| Manufacturer | 3M |
| Material | Copper, Nylon |
| Material: | Nylon |
| Max. Temp. | 221 Degrees F |
| Max. Voltage | 600 V |
| Maximum Insulation Outs. | 0.17 in |
| Maximum Operating Tempe. | 221 Degrees F |
| Maximum Voltage | 600V, 600 V |
| Maximum Wire Size | 14 AWG |
| Minimum Conductor Leg D. | 16 AWG |
| Minimum Operating Tempe. | -40 Degrees F, -40 Deg. |
| Minimum Wire Size | 16 AWG |
| Mpn | MNG14BCX |
| Number Of Terminals: | 100 per bottle |

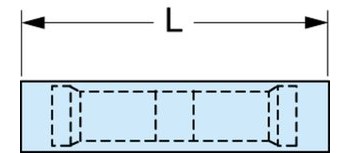

| Overall Length | 1 in |
| Package Quantity | 100 per pack, 500 per c. |
| Packaging | 100 per Package |
| RoHS Compliant | Yes |
| Seam | Brazed |
| Seam Style | Seamless |
| SKU | ZO-G2509997 |
| Standard: | UL and CSA |
| Standards | UL, CSA and RoHS 2011/6. |
| Sub Brand: | Scotchlok |
| SubCategory | Electrical |
| Terminal Size: | 16 - 14 AWG |
| Termination Style | Crimp |
| Trade Name | Scotchlok |
| Type | Insulation Grip, Insula. |
| Type: | Butt |
| UNSPSC | 39121432 |
| UPC | 051128586792, 005112858. |
| UPC Code | 5112858679 |
| Wire Range | 16 to 14 AWG |
| Wire Size Range | 16 AWG - 14 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | rshughes.com | 051128-58679 | 1.3 | 100 | 100 | | 3M | | 1.3 @ 100 |
 | turtle.com | MMM MNG14BCX | 1.6 | 1 | 100 | | 3M | | 1.6 @ 100 |
 | Carlton Bates Company | 05112858679 | 1.64 | 1 | 100 | | 3M | | 1.64 @ 100 |
| us.rs-online.com | 71035345 | 2.45 | 1 | 100 | | 3M | | 2.45 @ 100 |
 | Platt.com | 0063461 | 2.49 | 1 | 100 | | 3M | | 2.49 @ 100 |
| kirbyrisk.com | 1992885 | 3.0 | 100 | 100 | | 3M | | 3.0 @ 100 |
 | sustainablesupply.com | C1205004 | 63.77 | 1 | 100 | | 3M | 0.4 | 63.77 @ 100 |
 | Zoro | G2509997 | 131.99 | 1 | 388 | | 3M | 0.4 | 131.99 @ 100 |
 | gordonelectricsupply.com | MNG14BCX | 134.59 | 1 | 100 | 455 | 3-M | | 134.59 @ 100 |
| Dale-Electric | MNG14BCX | 137.61 | 1 | 100 | | 3M | | 137.61 @ 100 |
 | Raptor Supplies | AE4AKA | 149.9595435 | 1 | 100 | | 3M | | 149.9595435 @ 100 |
| grainger.ca | MMMMNG14BCX | 166.76844462 | 1 | 100 | | 3M | 0.218 | 166.76844462 @ 100 |
 | simsupply.com | ZO-G2509997 | 194.46 | 1 | 100 | | 3M | | 194.46 @ 100 |
| Graybar | 25323695 | 207.6256 | 1 | 100 | | 3M | | 207.6256 @ 100 |
 | Newark | 48W0329 | 209.12 | 1 | 100 | | 3M | | 209.12 @ 100 |
 | electricalparts.com | MNG14BCX | 278.3648 | 1 | 100 | | 3M | | 278.3648 @ 100 |
