- mpnCAFL4U
- brandname: Altech Corp
- manufacturername: Altech Corp

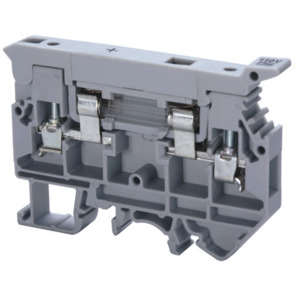

ALTECH CAFL4U 16 A 600 V 22 - 12 AWG 50 x 72 mm Fuse Block - 5 item(s)
- Brand: ALTech
- PartNumber: CAFL4U
- Model: CAFL4U
- PackageQuantity: 1
- Manufacturer: ALTECH
- Label: ALTECH
Attributes
| Key | Value |
|---|
| Agency Approvals | cULus ; cCSAus |
| Alternate Part No. | 845-CAFL4U |
| Approvals | CSA, UR |
| Base Product Number | CAFL4 |
| Brand | Altech |
| Category | Connectors, Interconnec. |
| Clamp Type | Screw |
| Color | Gray |
| Connection Type | Screw Clamp |
| CSA Current | 16 A |
| CSA Voltage | 600 VAC |
| Current - IEC | 6.3A, 6.3 A |
| Current - UL | 16 A, 16A |
| Current Rating | 12 A |
| Description | CONN TERM BLK DISCONN 1. |
| Detailed Description | Terminal Block Connecto. |
| Digi-Key Part Number | 1920-1247-ND |
| Dimensions | 72 L x 9 W x 50 D mm |
| Dimensions (HxWxL) | 50 x 9 x 72 mm |
| Disconnect Type | Fuse, Lever |
| Family Series | Altech Terminal Blocks,. |
| Features | - |
| Fuse Size | 1/4 in. x 1 in./1/4 in.. |
| Fuse Type | 6.3x32 mm, 6.3mm x 32mm |
| Gross Weight | 0.04 lbs |
| Indicator | None |
| Insulation Material | Polyamide 6.6 |
| Item Number | CAFL4U |
| Lead Free Status / RoHS. | RoHS Compliant |
| Manufacturer | Altech, Altech Corporat. |
| Manufacturer Part No. | CAFL4U |
| Manufacturer Part Number | CAFL4U |
| Manufacturer Product Nu. | CAFL4U |
| Manufacturer Standard L. | 7 Weeks, 13 Weeks |
| Material | Polyamide 66, Polyamide. |
| Material - Insulation | Polyamide (PA66), Nylon. |
| Material Flammability R. | - |
| Max CSA Wire Size (AWG) | 22 AWG |
| Max UL Wire Size (AWG) | 22 AWG |
| Mfr | Altech Corporation |
| Mounting Type | DIN Rail Mount, DIN Rail |
| Net Weight | 0.04 lbs |
| Number of Circuits | 1 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Operating Force | Polyamide 6.6 |
| Pack Size | 25 |
| Package | Bulk |
| Partition | No |
| Pin Spacing | 9 mm |
| Primary Type | DIN Rail Mount |
| Product | Accessories |
| Product Category | Terminal Block Tools & . |
| Product Series | Fuse |
| Product Status | Active |
| RoHS | Yes |
| Sensor Block Indicator | None |
| Series | CAFL, -, CAFL Series |
| Spacing | 9 mm |
| Standard Package | 25 |
| Standards | CE, UL, CSA, IEC |
| Stripping Length | 9.5mm, 12 mm |
| Terminal - Width | 9.0mm |
| Terminal Level | Single |
| Termination | Screw |
| Termination Style | Screw |
| Test Socket(s) | No |
| Torque | 0.5 N/m |
| Type | Fuse Disconnect, Fuse B. |
| UL Current | 16 A, 12 A |
| UL Voltage | 600 V, 600 VAC |
| UL Wire Size | 22-10 AWG |
| Voltage - IEC | 1000V |
| Voltage - UL | 600V |
| Voltage Rating | 600 V |
| Wire Entry Position | Side |
| Wire Gauge or Range - A. | 10-22 AWG |
| Wire Gauge or Range - m. | 0.2-4mm?, 0.2-4mm |
| Wire Size | 10 to 22 AWG |
| Wire Termination Type | Screw |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | NEP Electronics | CAFL4U | 2.138 | 3 | 50 | | Altech | | 2.138 @ 3 |
| iodParts | CAFL4U | 2.53 | 100 | 175 | | Altech Corporation | | 2.53 @ 100 |
 | Solutions Direct | CAFL4U | 2.62 | 1 | 38 | | Altech Corp. | | 2.62 @ 1 |
| Hawk Electronics | CAFL4U | 2.81 | 15 | 35 | | Altech | | 2.81 @ 15 |
| Onlinecomponents.com | CAFL4U | 3.09 | 1 | 200 | | ALTECH | | 3.09 @ 1 |
 | Galco | CAFL4U-ALTH | 3.11 | 1 | 31 | | Altech | 0.04 | 3.11 @ 1 |
 | jensentools.com | 10115669 | 3.68 | 1 | 38 | | Altech | | 3.68 @ 1 |
| Newark | 96AK2296 | 5.03 | 25 | In Stock | | ALTECH | | 5.03 @ 1 |
 | Digi-Key | 8547038 | 5.59 | 1 | 5608 | | Altech Corporation | | 5.59 @ 1 |
| us.rs-online.com | 70078057 | 5.63 | 1 | 895 | | Altech Corp | | 5.63 @ 1 |
 | swatee.com | CAFL4U | 6.32 | 1 | 334 | | Altech | | 6.32 @ 1 |
| AmazonTP | B073RPZ8BL | 14.64 | 1 | 38 | 2 | ALTECH | | 14.64 @ 1 |
 | Carlton Bates Company | 78039198870 | 75.75 | 1 | 38 | | ALTECH CORP | | 75.75 @ 1 |
