Cle-line C20670

mpnC20670
brandname: Cle-Line
manufacturername: Cle-Line

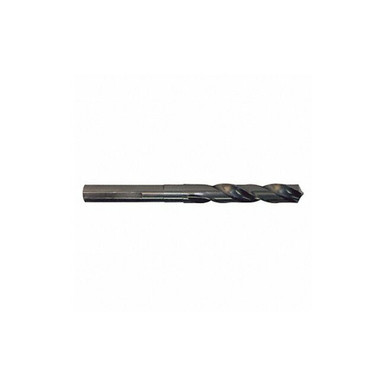

Cle-Line C20670 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Flatted Shank, 118-Degree Radial Point, 1/2" Drill Diameter

Brand: Cle-line
PartNumber: C20670
Model: C20670
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Cast Iron and Steel
Application	For Alloy And Carbon St.
Brand	Cle-Line
Coolant Fed	Non-Coolant Through
Current Stock	42
Cutting Depth	3-1/8 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.5000
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.5000"
Diameter (Fraction)	1/2"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Black Oxide
Drill Bit Point Angle	118 Degrees
Drill Bit Point Type	Conventional Point
Drill Bit Size	1/2 in
Drill Construction	General Purpose
Drill Diameter Tolerance	+0.0000 in /-0.0010 in
Drill Size - Decimal In.	0.5 in
Drill Size - Fraction	1/2 in
Drill Size System	Fractional
Drill Style	Silver & Deming Drill
Finish	Steam Oxide
Flute Length	3 1/8 in, 3.1250", 3-1/.
Flute Length (Metric)	79.38mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
International Shipping	No
Item	Reduced Shank Drill Bit
Material	HSS
Material - Machining	High Speed Steel
Maximum Drilling Depth	2 1/2 in
Measurement System	Fractional Inch
Mpn	C20670
Number of Flutes	2
Overall Length	6.0000", 6 in
Overall Length (Metric)	152.40mm
Point Angle	118 deg, 118?
Point Style	Radial
Point Type	Radial
Primary Material Applic.	Cast Iron, Steel
Series	1892
Shank Configuration	Reduced w/ 3 Flats
Shank Dia.	1/2 in
Shank End Feature	3 Flats
Shank End Feature Length	0.8750"
Shank Length	2 1/4 in, 2.2500"
Shank Length (Metric)	57.15mm
Shank Neck Diameter	0.4560"
Shank Neck Length	0.5000"
Shank Size	0.5000", 1/2 in
Shank Size (Metric)	12.70mm
Shank Type	Flat/Reduced
SKU	ZO-G4954017, C20670
Style	1892
SubCategory	Machining
Surface Condition	Steam Oxide
Tool Size	1/2"
UPC	6.97E+11, 697334206705

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Megadepot	C20670	11.77	1	In Stock	Cle-Line		11.77 @ 1
heavydutydepot.com	C20670	11.77	9	In Stock	Cle-Line		11.77 @ 9
Global Industrial	WBB2544188	13.75	1	In Stock	Cle-Line		13.75 @ 1
usmegastore.com	C20670	13.97	1	In Stock	Cle-Line		13.97 @ 1
MRO Supply	6123937	15.83	4	In Stock	Cle-Line		15.83 @ 4
Zoro	G4954017	16.99	1	71	Cle-Line	0.3	16.99 @ 1
simsupply.com	ZO-G4954017	25.56	1	42	Cle-Line		25.56 @ 1
imsbolt.com	C20670	26.09	1	In Stock	CLE-LINE		26.09 @ 1
