Cle-line C20699

mpnC20699
brandname: Cle-Line
manufacturername: Cle-Line

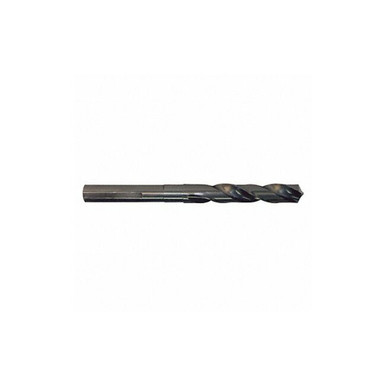

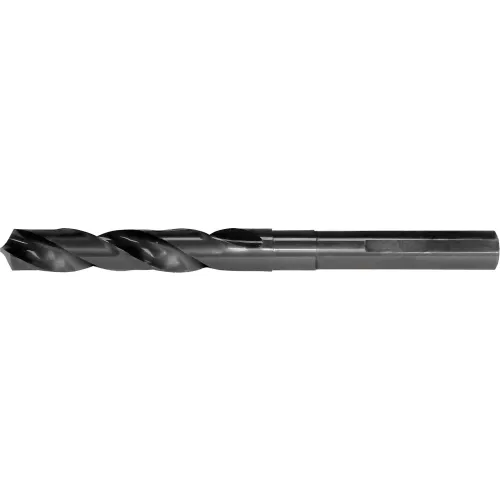

Cle-Line C20699 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Flatted Shank, 118-Degree Radial Point, 1 1/4" Drill Diameter

Brand: Cle-line
PartNumber: C20699
Model: C20699
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Low Carbons, Stainless .
Application	For Alloy And Carbon St.
Brand	Cle-Line
Color	Black Oxide
Coolant Fed	Non-Coolant Through
Current Stock	22
Cutting Depth	3-1/8 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	1.2500
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	1.2500"
Diameter (Fraction)	1-1/4"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Black Oxide
Drill Bit Point Angle	118 Degrees
Drill Bit Size	1 1/4 in
Drill Construction	General Purpose
Drill Diameter Tolerance	+0.0000 in /-0.0015 in
Drill Size - Decimal In.	1.25 in
Drill Size - Fraction	1-1/4 in
Drill Size System	Fractional
Drill Style	Silver & Deming Drill
Finish	Black Oxide
Finish - Machining	Black Oxide
Flute Length	3 1/8 in, 3.1250", 3-1/.
Flute Length (Metric)	79.38mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Helix Angle	28 Degrees
International Shipping	No
Item	Reduced Shank Drill Bit
Lead Time	Expected to ship in 1-2.
Material	HSS, High Speed Steel
Material - Machining	High Speed Steel
Material Grade - Machin.	M42
Maximum Drilling Depth	2 1/2 in
Mpn	C20699
Number of Flutes	2
Overall Length	6.0000", 6 in
Overall Length (Metric)	152.40mm
Point Angle	118 deg, 118?
Point Style	Radial
Point Type	Radial
Series	1892
Shank Configuration	Reduced w/ 3 Flats
Shank Dia.	1/2 in
Shank End Feature	3 Flats
Shank End Feature Length	0.8750"
Shank Length	2 1/4 in, 2.2500"
Shank Length (Metric)	57.15mm
Shank Neck Diameter	1.2060"
Shank Neck Length	0.5000"
Shank Size	0.5000", 1/2 in
Shank Size (Metric)	12.70mm
Shank Type	Reduced/Round
Silver & Deming Drill	Yes
SKU	ZO-G4953980
Style	1892
SubCategory	Machining
Surface Condition	Steam Oxide
Tool Size	1-1/4"
Type	General Purpose
UPC	697334206996

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Megadepot	C20699	48.97	1	In Stock	Cle-Line		48.97 @ 1
heavydutydepot.com	C20699	48.97	3	In Stock	Cle-Line		48.97 @ 3
Zoro	G4953980	50.99	1	In Stock	Cle-Line	0.85	50.99 @ 1
usmegastore.com	C20699	53.89	1	In Stock	Cle-Line		53.89 @ 1
MRO Supply	6123966	55.78	1	In Stock	Cle-Line		55.78 @ 1
Global Industrial	WBB2544273	55.95	1	In Stock	Cle-Line		55.95 @ 1
Amazon	B00JA5G67W	59.33	1	In Stock	Cle-line		59.33 @ 1
simsupply.com	ZO-G4953980	61.41	1	22	Cle-Line		61.41 @ 1
