- mpnC20751
- brandname: CLE-LINE
- manufacturername: CLE-LINE

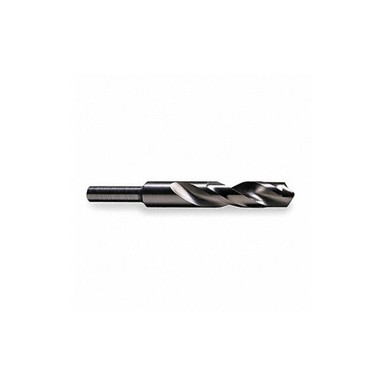

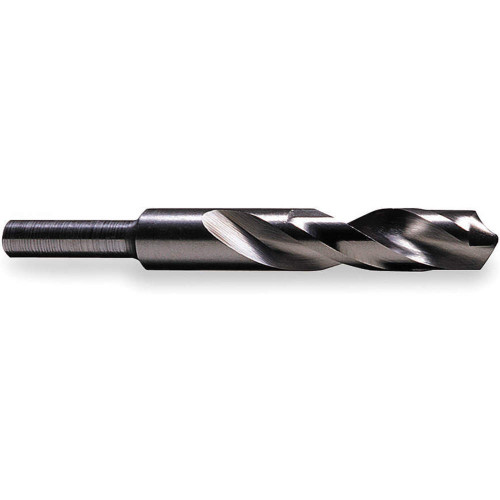

Cle-Line C20751 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Shank, 118-Degree Radial Point, 13/16" Drill Diameter
- Brand: Cle-line
- PartNumber: C20751
- Model: C20751
- Color: Black Oxide
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Cle-Line
- Label: Cle-Line
Attributes
| Key | Value |
|---|
| Applicable Materials | Iron Based Ferrous Meta. |
| Application | For Alloy And Carbon St. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Current Stock | 197 |
| Cutting Depth | 3-1/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.8125 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.8125" |
| Diameter (Fraction) | 13/16" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 13/16 in |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Drill Size - Decimal In. | 0.8125 in |
| Drill Size - Fraction | 13/16 in |
| Drill Size System | Fractional |
| Drill Style | Silver & Deming Drill |
| Finish | Black Oxide |
| Flute Length | 3 1/8 in, 3.1250", 3-1/. |
| Flute Length (Metric) | 79.38mm |
| Flute Type | Spiral |
| Grade | General Purpose |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Reduced Shank Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 3 1/4 in |
| Mpn | C20751 |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 6.0000", 6 in |
| Overall Length (Metric) | 152.40mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Point type | Conventional Point |
| Series | 1813 |
| Shank Configuration | Reduced |
| Shank Dia. | 3/8 in |
| Shank Length | 2 1/4 in, 2.2500" |
| Shank Length (Metric) | 57.15mm |
| Shank Neck Diameter | 0.7685" |
| Shank Neck Length | 0.5000" |
| Shank Size | 0.5000", 1/2 in |
| Shank Size (Metric) | 12.70mm |
| Shank Type | Round, Reduced |
| SKU | ZO-G0489334, C20751 |
| Style | 1813 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | 13/16" |
| Type | General Purpose |
| UPC | 697334207511, 6.97E+11 |
