- mpnC20764
- brandname: CLE-LINE
- manufacturername: CLE-LINE

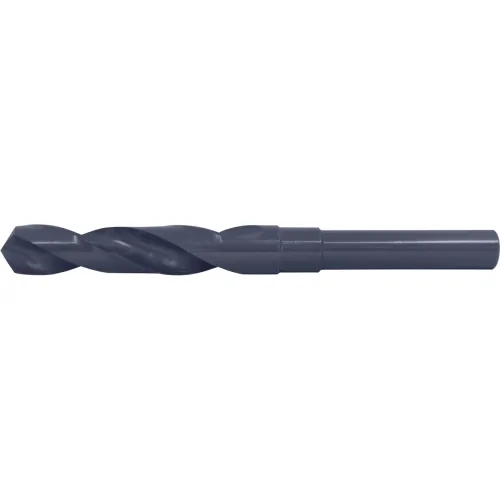

Silver/Deming Drill, 1 7/16, HSS, 118 Deg
- Brand: Cle-line
- PartNumber: C20764
- PackageQuantity: 1
- Manufacturer: Cle-Line
- Label: Cle-Line
Attributes
| Key | Value |
|---|
| Applicable Materials | Cast Iron and Steel |
| Cutting Depth | 3-1/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 1.4375 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 1.4375, 1.4375" |
| Diameter (Fraction) | 1-7/16" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 1 7/16 in |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0015 in |
| Drill Size - Decimal In. | 1.4375 in |
| Drill Size - Fraction | 1-7/16 in |
| Drill Size System | Fractional |
| Drill Style | Silver & Deming Drill |
| Finish | Steam Oxide |
| Flute Length | 3 1/8 in, 3.1250", 3-1/. |
| Flute Length (Metric) | 79.38mm |
| Flute Type | Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Reduced Shank Drill Bit |
| Material | HSS |
| Maximum Drilling Depth | 2 1/2 in |
| Number of Flutes | 2 |
| Overall Length | 6.0000", 6 in |
| Overall Length (Metric) | 152.40mm |
| Point Angle | 118 deg, 118, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Series | 1813 |
| Shank Configuration | Reduced |
| Shank Dia. | 1/2 in |
| Shank Length | 2 1/4 in, 2.2500" |
| Shank Length (Metric) | 57.15mm |
| Shank Neck Diameter | 1.3935" |
| Shank Neck Length | 0.5000" |
| Shank Size | 0.5000", 0.5, 1/2 in |
| Shank Size (Metric) | 12.70mm |
| Shank Type | Round, Reduced/Round |
| SKU | C20764 |
| Style | 1813 |
| Surface Condition | Steam Oxide |
| Tool Size | 1-7/16" |
| UPC | 6.97E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1711525 | 92.39 | 1 | 9 | | Cle-Line | 1.3 | 92.39 @ 1 |
 | MRO Supply | 6124018 | 92.85 | 1 | In Stock | | Cle-Line | | 92.85 @ 1 |
 | Megadepot | C20764 | 94.54 | 1 | In Stock | | Cle-Line | | 94.54 @ 1 |
 | usmegastore.com | C20764 | 94.93 | 1 | In Stock | | Cle-Line | | 94.93 @ 1 |
 | heavydutydepot.com | C20764 | 94.93 | 2 | In Stock | | Cle-Line | | 94.93 @ 2 |
 | Global Industrial | WBB2543817 | 99.95 | 1 | In Stock | | Cle-Line | | 99.95 @ 1 |
 | sustainablesupply.com | C1465091 | 106.27 | 1 | In Stock | | Cle-Line | 1.3 | 106.27 @ 1 |
 | Raptor Supplies | AB9CPG | 161.6693715 | 1 | In Stock | | CLE-LINE | | 161.6693715 @ 1 |
 | imsbolt.com | C20764 | 191.31 | 1 | In Stock | | CLE-LINE | | 191.31 @ 1 |
