- mpnC22858
- brandname: Cle-Line
- manufacturername: Cle-Line

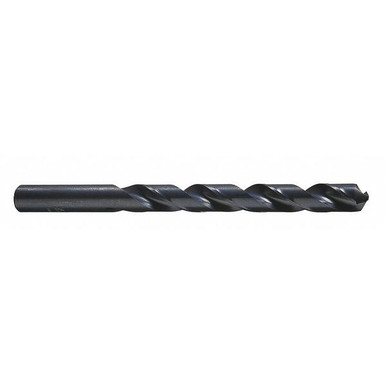

Cle-Line C22858 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 6.00 mm Drill Diameter (Pack of 12)
- Brand: CLELINE
- PartNumber: C22858
- Model: C22858
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Brand | Cle-Line |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subj. | United States |
| Current Stock | 57 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.2362 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.2362" |
| Diameter (Metric) | 6.00mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 6.00 mm |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.071mm |
| Drill Size - Decimal In. | 0.2362 in |
| Drill Size - Metric | 6 mm |
| Drill Size System | Metric |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 2.2441", 57.00 mm, 57 mm |
| Flute Length (Metric) | 57.00mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 15/16 in |
| Measurement System | Metric |
| Mpn | C22858 |
| Number of Flutes | 2 |
| Overall Length | 93.00 mm, 3.6614", 93 mm |
| Overall Length (Metric) | 93.00mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | K, N, P |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 6 mm |
| Shank Length | 36 mm, 1.4173" |
| Shank Length (Metric) | 36.00mm |
| Shank Size | 0.2362", 6 mm Dia x 36 . |
| Shank Size (Metric) | 6.00mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| SKU | ZO-G4942141 |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M, DIN 338 |
| Style | 1899 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 6.00mm, 6mm |
| UPC | 697334228585 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2545114 | 1.6186 | 12 | 12 | | Cle-Line | | 1.6186 @ 12 |
 | Zoro | G4942141 | 1.84 | 12 | 12 | | Cle-Line | 0.03 | 1.84 @ 12 |
 | MRO Supply | 6124427 | 1.97 | 26 | 12 | | Cle-Line | | 1.97 @ 26 |
 | Megadepot | C22858 | 2.07 | 1 | 12 | | Cle-Line | | 2.07 @ 12 |
 | heavydutydepot.com | C22858 | 2.07 | 49 | 12 | | Cle-Line | | 2.07 @ 49 |
 | usmegastore.com | C22858 | 2.21 | 1 | 12 | | Cle-Line | | 2.21 @ 12 |
| Amazon | B00J9GW0GI | 5.14 | 1 | 12 | | Cle-Line | | 5.14 @ 12 |
 | simsupply.com | ZO-G4942141 | 8.4 | 1 | 57 | | Cle-Line | | 8.4 @ 12 |
