- mpnC22914
- brandname: Cle-Line
- manufacturername: Cle-Line

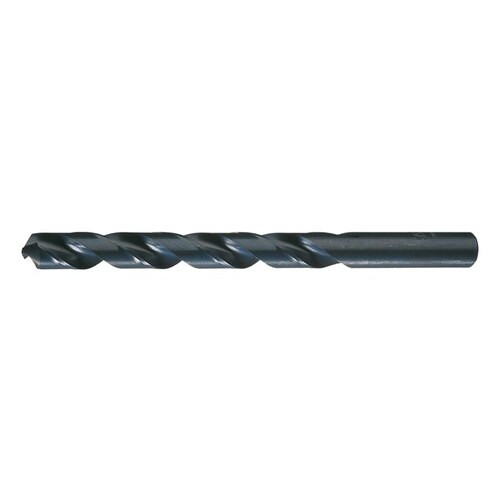

Cle-Line C22914 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 14.00 mm Drill Diameter
- Brand: Cle-line
- PartNumber: C22914
- Model: C22914
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subj. | United States |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.5512 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.5512" |
| Diameter (Metric) | 14.00mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 14.00 mm |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.1656mm |
| Drill Size - Decimal In. | 0.5512 in |
| Drill Size - Metric | 14 mm |
| Drill Size System | Metric |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 4.2520", 108.00 mm, 108. |
| Flute Length (Metric) | 108.00mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Jobber Length Drill Bit |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 2 13/64 in |
| Measurement System | Metric |
| Number of Flutes | 2 |
| Overall Length | 6.2992", 160 mm, 160.00. |
| Overall Length (Metric) | 160.00mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | K, N, P |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 14 mm |
| Shank Length | 52 mm, 2.0472" |
| Shank Length (Metric) | 52.00mm |
| Shank Size | 0.5512", 14 mm Dia x 52. |
| Shank Size (Metric) | 14.00mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| SKU | C22914 |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M |
| Style | 1899 |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 14mm, 14.00mm |
| UPC | 6.97E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2545107 | 15.25 | 1 | In Stock | | Cle-Line | | 15.25 @ 1 |
 | Megadepot | C22914 | 15.37 | 1 | In Stock | | Cle-Line | | 15.37 @ 1 |
 | heavydutydepot.com | C22914 | 15.37 | 7 | In Stock | | Cle-Line | | 15.37 @ 7 |
 | Zoro | G4952425 | 15.52 | 1 | In Stock | | Cle-Line | 0.32 | 15.52 @ 1 |
 | usmegastore.com | C22914 | 15.89 | 1 | In Stock | | Cle-Line | | 15.89 @ 1 |
 | MRO Supply | 6124483 | 18.1 | 3 | In Stock | | Cle-Line | | 18.1 @ 3 |
 | imsbolt.com | C22914 | 29.83 | 1 | In Stock | | CLE-LINE | | 29.83 @ 1 |
 | National Supply Network | 57602575 | 38.76 | 1 | In Stock | | Cle-Line | | 38.76 @ 1 |
