Cle-line C23372

mpnC23372
brandname: CLE-LINE
manufacturername: CLE-LINE

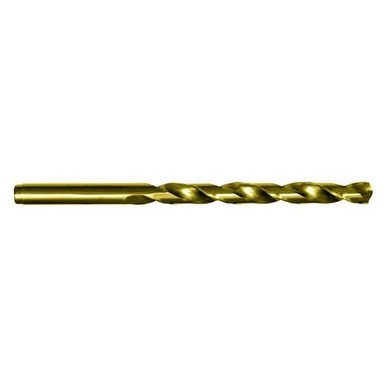

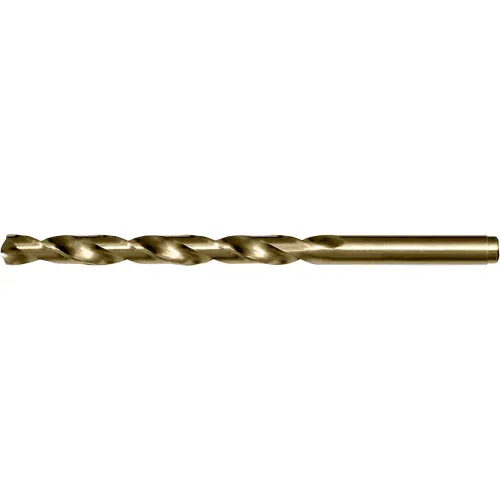

Jobber Drill Bit, Straw/Bronze, 31/64"Size, Min. Qty 6 (6 Pieces)

Jobber Drill Bit, Straw/Bronze, 31/64"Size, Min. Qty 6 (6 Pieces)

zoom

Brand: Cle-line
PartNumber: C23372
Manufacturer: CLE-LINE
Label: CLE-LINE

Attributes

Key	Value
Brand	Cle-Line
Coolant Fed	Non-Coolant Through
Current Stock	197
Cutting Depth	5XD
Cutting Direction	Right Hand
Cutting Edge Material	M42 HSS-Co 8%
Decimal Equivalent	0.4844
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.4844"
Diameter (Fraction)	31/64"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Straw/Bronze
Drill Bit Grouping	Drill Bit
Drill Bit Material	Cobalt
Drill Bit Point Angle	135 Degrees
Drill Bit Size	31/64 in
Drill Construction	Heavy-Duty
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in/-0.0010 in
Drill Length Class	Jobber Length
Drill Point Length	0.1003"
Drill Size - Decimal In.	0.4844 in
Drill Size - Fraction	31/64 in
Drill Size System	Fractional
Drill Style	Jobber Drill
Finish	Straw Oxide
Flute Length	4.3750", 4-3/8 in, 4 3/.
Flute Length (Metric)	111.13mm
Flute Type	Right Spiral, Spiral
Hand of Cut	Right
Hand of Spiral	Right
International Shipping	No
Item	Jobber Length Drill Bit
Lead Time	Expected to ship in 1-2.
Material	M42 HSS-Co 8%, HSS-CO, .
Maximum Drilling Depth	3 9/32 in
Mpn	C23372
Number of Flutes	2
Overall Length	5 7/8 in, 5-7/8 in, 5.8.
Overall Length (Metric)	149.22mm
Point Angle	135 deg, 135?
Point Style	Split
Point Type	Split
Series	1802
Shank Configuration	Straight
Shank Dia.	31/64 in
Shank Length	1 1/2 in, 1.5000"
Shank Length (Metric)	38.10mm
Shank Size	31/64 in Dia x 1-1/2 in.
Shank Size (Metric)	12.30mm
Shank Type	Straight
SKU	ZO-G7274079
Style	1802
SubCategory	Machining
Surface Condition	Straw
Through Coolant (Yes/No)	No
Tool Size	31/64"
Type	Heavy Duty
UPC	697334233725

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G7274079	11.89	1	314		Cle-Line	0.23	11.89 @ 6
	Megadepot	C23372	13.04	1	6		Cle-Line		13.04 @ 6
	usmegastore.com	C23372	13.04	1	6		Cle-Line		13.04 @ 6
	heavydutydepot.com	C23372	13.04	8	6		Cle-Line		13.04 @ 8
	Global Industrial	WBB2543451	13.5	6	6		Cle-Line		13.5 @ 6
	Grainger	53FP54	13.55	6	18	0	CLE-LINE		13.55 @ 6
	MRO Supply	6124797	15.62	3	6		Cle-Line		15.62 @ 6
	sustainablesupply.com	C2765527	15.85	1	6		Cle-Line	0.22	15.85 @ 6
	simsupply.com	ZO-G7274079	20.48	1	197		Cle-Line		20.48 @ 6
