- mpnC23466
- brandname: Cle-Line
- manufacturername: Cle-Line

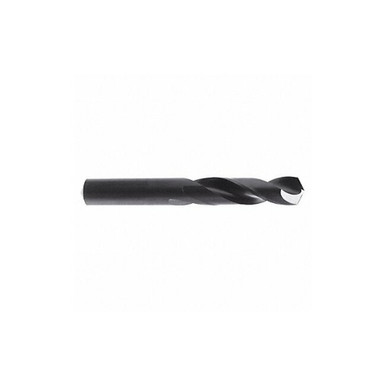

Screw Mach Drill, HSS, Blk Oxide, 5/32 In
- Brand: Cle-line
- PartNumber: C23466
- Color: Black Oxide
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Application | For Alloy, Carbon And T. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Current Stock | 397 |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1562 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1562" |
| Diameter (Fraction) | 5/32" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 5/32 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0324 in |
| Drill Size - Decimal In. | 0.1562 in |
| Drill Size - Fraction | 5/32 in |
| Drill Size System | Fractional |
| Drill Style | Screw Machine Drill |
| Finish | Black Oxide |
| Flute Length | 1.0000", 1 in, 10 in |
| Flute Length (Metric) | 25.40mm |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Screw Machine Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| List Number | 1896 |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 in |
| Measurement System | Imperial |
| Mpn | C23466 |
| Number of Flutes | 2 |
| Overall Length | 2.0625", 2 1/16 in, 2-1. |
| Overall Length (Metric) | 52.39mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split point, Split |
| Series | 1896 |
| Shank Configuration | Straight |
| Shank Dia. | 5/32 in |
| Shank Length | 1.0625", 1 1/16 in |
| Shank Length (Metric) | 26.99mm |
| Shank Size | 0.1563", 5/32 in Dia x . |
| Shank Size (Metric) | 3.97mm |
| Shank Type | Straight |
| Sizes Included | 5/32" |
| SKU | ZO-G2241626 |
| Style | 1896 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | 5/32" |
| Type | General Purpose Heavy D. |
| UPC | 697334234661 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2544443 | 1.0959 | 12 | 12 | | Cle-Line | | 1.0959 @ 12 |
 | Megadepot | C23466 | 1.3 | 1 | 12 | | Cle-Line | | 1.3 @ 12 |
 | usmegastore.com | C23466 | 1.3 | 1 | 12 | | Cle-Line | | 1.3 @ 12 |
 | heavydutydepot.com | C23466 | 1.31 | 77 | 12 | | Cle-Line | | 1.31 @ 77 |
 | MRO Supply | 6124865 | 1.33 | 38 | 12 | | Cle-Line | | 1.33 @ 38 |
 | Zoro | G2241626 | 1.39 | 1 | 770 | | Cle-Line | 0.01 | 1.39 @ 12 |
 | sustainablesupply.com | C1465267 | 1.77 | 1 | 12 | | Cle-Line | 0.01 | 1.77 @ 12 |
 | Raptor Supplies | AF2PKL | 1.8436275 | 1 | 12 | | CLE-LINE | | 1.8436275 @ 12 |
 | simsupply.com | ZO-G2241626 | 7.69 | 1 | 397 | | Cle-Line | | 7.69 @ 12 |
