Cle-line C23737

mpnC23737
brandname: Cle-Line
manufacturername: Cle-Line

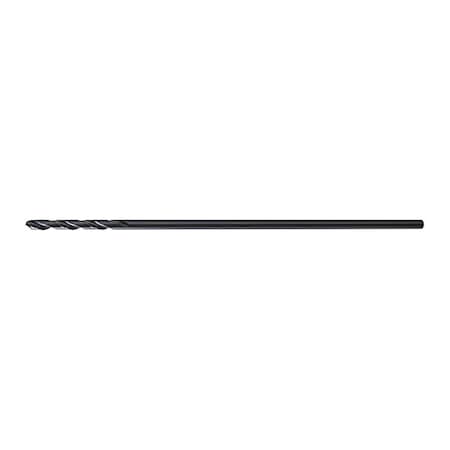

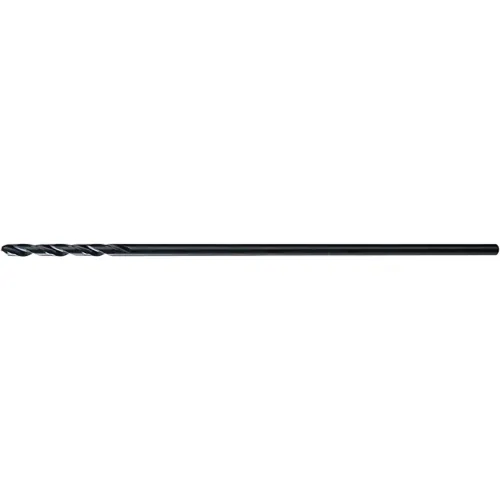

Cle-Line C23737 Aircraft Extended Length Extension Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 135-Degree Split Point, 5/16" Drill Diameter (Pack of 6)

Brand: Cle-line
PartNumber: C23737
Model: C23737
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Angle Iron, Cast Iron, .
Brand	Cle-Line
Color	Black Oxide
Coolant Fed	Non-Coolant Through
Current Stock	3
Cutting Depth	3-3/16 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.3125
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.3125"
Diameter (Fraction)	5/16"
Drill Bit Point Angle	135 Degrees
Drill Bit Size	5/16 in
Drill Construction	Heavy-Duty
Drill Diameter Tolerance	+0.0000 in /-0.0010 in
Drill Length Class	Extra Long
Drill Point Length	0.0647 in
Drill Size - Decimal In.	0.3125 in
Drill Size - Fraction	5/16 in
Drill Size System	Fractional
Drill Style	Aircraft Extension Drill
Finish	Black Oxide/Steam Oxide
Finish - Machining	Black Oxide
Flute Length	3.1875", 3 3/16 in, 3-3.
Flute Length (Metric)	80.96mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
International Shipping	No
Item	Extra Long Drill Bit
Lead Time	Expected to ship in 1-2.
Material	HSS
Material - Machining	High Speed Steel
Maximum Drilling Depth	1 1/4 in
Measurement System	Fractional Inch, Imperi.
Mpn	C23737
Number of Flutes	2
Overall Length	12 in, 12.0000"
Overall Length (Metric)	304.80mm
Point Angle	135 deg, 135?
Point Style	Split
Point Type	Split
Series	1805
Shank Configuration	Straight
Shank Dia.	5/16 in
Shank Length	8 13/16 in, 8.8125"
Shank Length (Metric)	223.84mm
Shank Size	5/16 in, 0.3125"
Shank Size (Metric)	7.94mm
Shank Type	Straight
Shank Type - Machining	Straight
SKU	ZO-G4941450
Spiral Direction	Right Hand
Standards	ASME B94.11M
Style	1805
SubCategory	Machining
Surface Condition	Steam Oxide
Tool Size	5/16"
Type	Type B Extended Length
UPC	697334237372

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Megadepot	C23737	10.87	1	6	Cle-Line		10.87 @ 6
heavydutydepot.com	C23737	10.87	10	6	Cle-Line		10.87 @ 10
Global Industrial	WBB2543615	11.0	6	6	Cle-Line		11.0 @ 6
usmegastore.com	C23737	11.2	1	6	Cle-Line		11.2 @ 6
Zoro	G4941450	12.19	1	8	Cle-Line	1.45	12.19 @ 6
MRO Supply	6125041	12.43	3	6	Cle-Line		12.43 @ 6
Amazon	B00J9FPMQO	13.54	1	6	Cle-line		13.54 @ 6
simsupply.com	ZO-G4941450	21.18	1	6	Cle-Line		21.18 @ 6
