CLEVELAND C14531

mpnC14531
brandname: CLEVELAND
manufacturername: CLEVELAND

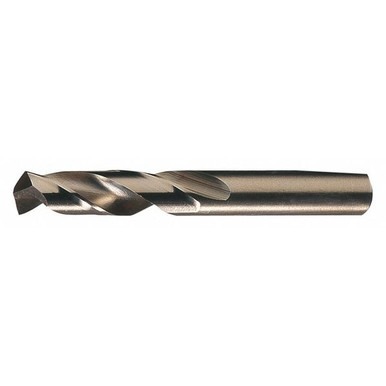

Cleveland 2133 Style Cobalt Steel Short Length Drill Bit, Bronze Oxide, Round Shank, 135 Degree Split Point, #49 (Pack of 10)

Brand: CLEVELAND
PartNumber: C14531
Size: #49
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
Applicable Materials	Carbon Steel, Cast Iron.
Bit Dia.	#49
Brand	Cleveland
Catalog Page	N/A
Construction	Heavy-Duty
Coolant Fed	Non-Coolant Through
Country of Origin	USA
Cutting Depth	11/16 in
Cutting Direction	Right Hand
Cutting Edge Material	M42 HSS-Co 8
Decimal Equivalent	0.0730" / 1.85mm, 0.0730
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter Wire	49
Drill Bit Dimension Type	Wire
Drill Bit Finish	Straw/Bronze
Drill Bit Grouping	Drill Bit
Drill Bit Material	Cobalt
Drill Bit Point Angle	135 Degrees, 135 ?
Drill Bit Point Type	Split Point
Drill Bit Size	#49
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in /-0.0005 in
Drill Length Class	Screw Machine Length
Drill Point Length	0.0151 in
Drill Size - Decimal In.	0.073 in
Drill Size - Wire	#49
Drilling Length	0.688"
Finish	Straw/Gold Oxide
Finish - Machining	Straw/Bronze
Flute Length	11/16 in
Flute Type	Right Spiral, Spiral
Hand of Spiral Cut	RHS / RHC
Helix Angle	28 ?
International Shipping	No
Item	Screw Machine Drill Bit
Item?	439V46
Length of Flute	0.6875" / 17.46mm
List Style	2133
Material	M42 HSS-Co 8, HSS-CO 8%.
Material - Machining	Cobalt
Material Grade - Machin.	M42
Maximum Drilling Depth	11/16 in
Measurement System	Wire
Mfr. Model?	C14531
Mpn	C14531
Number of Flutes	2
Overall Length	1 11/16 in, 1-11/16 in,.
Point	135? Split
Point Angle	135 deg
Point Type	Split
Primary Material Applic.	Cast Iron; Stainless St.
Primary Material Applic.	K; M; P
Series	2133
Shank	Straight
Shank Dia.	1/16 in
Shank Length	1 in
Shank Size	0.073 in Dia x 1 in L, .
Shank Type	Straight
Shank Type - Machining	Straight
Sizes Included	#49
SKU	ZO-G3001490
Spiral Direction	Right Hand
Standards	ASME B94.11M-1993
Style	2133
SubCategory	Machining
Surface Condition	Straw, Straw / Gold Oxi.
Tool Size	#49
Type	General Purpose Heavy D.
UNSPSC	27112801
UPC	697334145318

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
MRO Supply	6110945	2.33	16	10	Cleveland	2.33 @ 16
Megadepot	C14531	2.44	1	10	Cleveland	2.44 @ 10
usmegastore.com	C14531	3.06	1	10	Cleveland	3.06 @ 10
Zoro	G3001490	3.25	1	10	Cleveland	3.25 @ 10
Grainger	439V46	4.02	1	10	CLEVELAND	4.02 @ 10
National Supply Network	63793491	4.629	10	10	Cleveland	4.629 @ 10
Guardian	63793491	5.13	1	10	Cleveland	5.13 @ 10
simsupply.com	ZO-G3001490	9.64	1	10	Cleveland	9.64 @ 10
