GCP D1125

B07Z59QH45

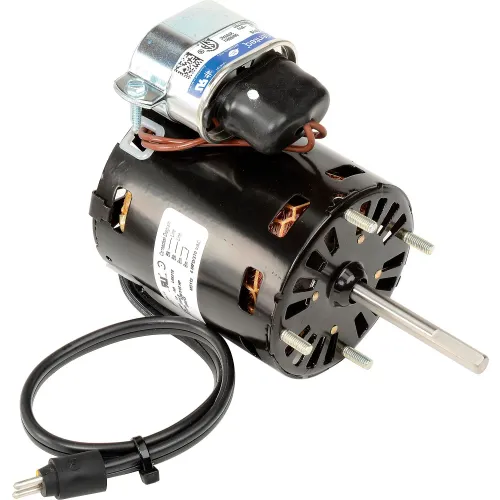

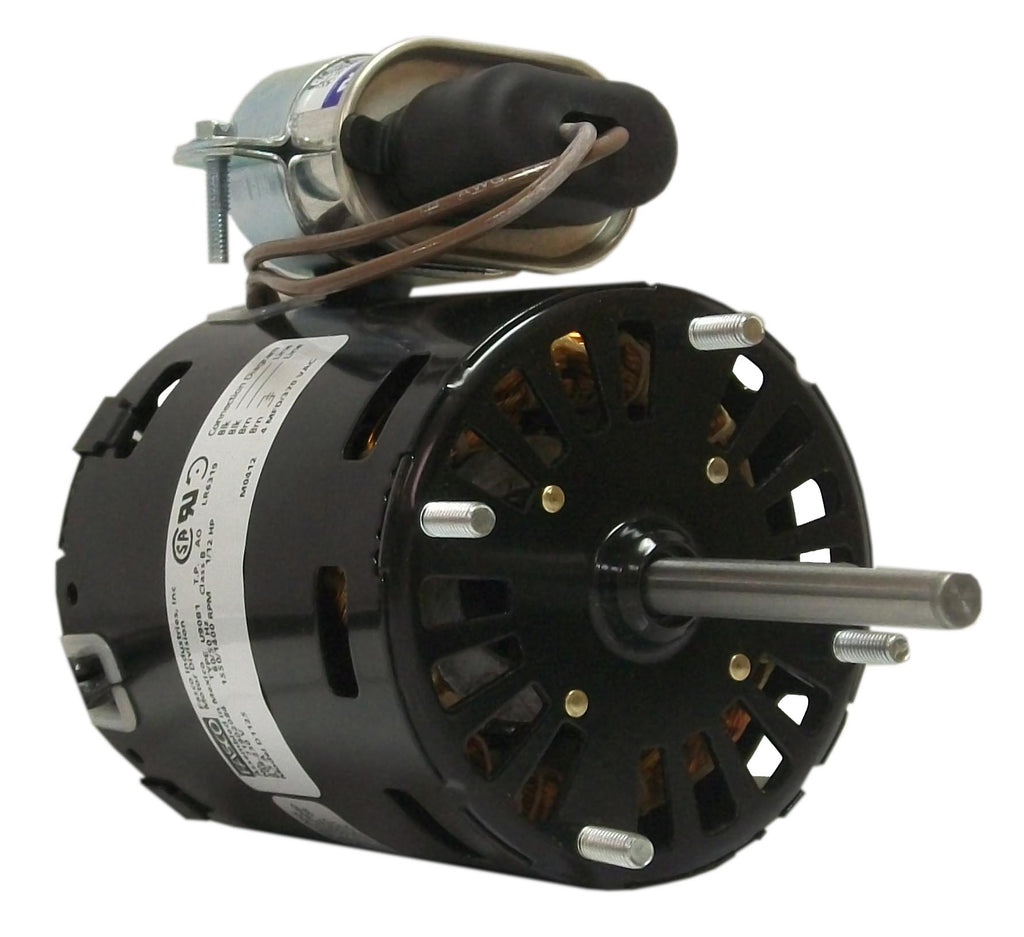

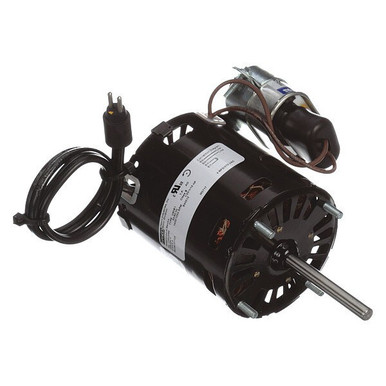

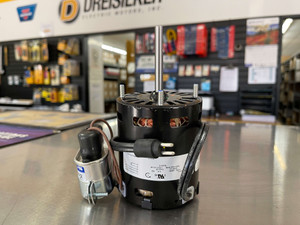

Fasco Motor, 3 3 8 Diameter, 1 15 Hp, 208-230 Volt D1125

Fasco Motor, 3 3 8 Diameter, 1 15 Hp, 208-230 Volt D1125zoom

Attributes

Key Value
Ambient temperature (?C)40
Amps0.40/0.50, 0.5
BearingsSLV, Sleeve
Body Dia.3.3"
Bolt Circle Dia.2-13/16"
BrandFasco
C-Dimension6.75 (in.)
Capacitor4MFD/370VAC (Included)
Catalog NumberD1125
CEN
ColorBlack
Country of originMexico
Cross Reference7190-0442
CSAN
Current0.40/0.50 A
Current Stock97
DE Bearing TypeSleeve
DEM ReferenceFA#D1125
Diameter3.3?
Drive end bearingSleeve
DutyAir Over
Electrical typePermanent Split Capacit.
Electrical TypePermanent Split Capacit.
EnclosureOpen Ventilated, Open A.
Enclosure TypeOAO (Open Air Over), Op.
Frame3.3", 3.3
Frame length3.62 in
Frame MaterialSteel
Frame materialSteel
Frame Type3.3 (in. diameter)
Frequency50 Hz, 50
HP1/12, 1/20, 1/15 HP
Hz60
Insulation classB
Insulation ClassB
International ShippingNo
IP Code-
ItemMotor
KVA Code-
Lead TimeExpected to ship in 1-2.
Length Less Shaft4 1/8 in
Manufacturers Warranty .1 yr.
Max Ambient40?C
Motor ApplicationOEM Replacement
Motor DesignPermanent Split Capacit.
Motor Diameter3.3"
Motor Enclosure DesignOpen Air-Over
Motor Mounting TypeExtended Studs
Motor Orientation-
Motor Shaft RotationCounterclockwise Shaft .
Motor Shell Length3-3/4"
Motor Sub ApplicationCondenser Fan Motor
Motor Thermal ProtectionAutomatic
Motor Wt.4 lbs
MountingExtended Studs, Stud
Mounting TypeExtended Studs
MpnD1125
Nameplate RPM1550/1400 rpm
No. of Speeds1
Number of Shafts1
Number of speeds1
Number of Speeds1
ODE Bearing TypeSleeve
OEMBohn
OEM Replacement BrandBohn
Opp drive end bearingSleeve
Output HP1/20 / 1/15 HP
Output KW0.04 kW
Overall Length6-3/4", 6.75 in
Packaged height5 in
Packaged length8 in
Packaged width5.63 in
Phase1
Poles4
Product CategoryHVAC/R Motors > HVAC/R.
Product TypePSC (Permanent Split Ca.
RotationCCW, Counterclockwise S.
RPM1550, 1500
RPM (Nameplate)1550
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
RPM Range1301-1400
Service Factor1
Service factor1
Shaft Dia.0.313"
Shaft Diameter5/16", 0.313 in, 5/16 (.
Shaft Dimension5/16? X 2 5/8?
Shaft Extension2.64 (in.)
Shaft extension2.64 in
Shaft Length2.64", 2-5/8"
Shaft typeFlat
Shaft TypeFlat
Ship Weight4 lbs.
SKUZO-G4334480
Speed1400/1550 RPM
Speeds1
Starting methodAcross the line
Stud Size#10-32
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
Thermal protectionThermally Protected
TypePSC
Type of Overload Protec.Thermally Protected
ULRecognized
UPC818508021911
Voltage208-230 V
Volts208, 230, 208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
EISMOTD112566.761In StockFasco66.76 @ 1
thumbzoomktool.netD112570.261In StockFasco70.26 @ 1
thumbzoomcshincorporated.comD112574.961In StockFasco4.074.96 @ 1
thumbzoomacunitparts.comD112577.05172FASCO77.05 @ 1
thumbzoomemotorpro.comD112582.391In StockFasco4.082.39 @ 1
thumbzoomZoroG433448082.99159Fasco4.2782.99 @ 1
thumbzoomGlobal IndustrialWBB18693085.951In StockFasco85.95 @ 1
thumbzoomgsistore.comD112587.1513Fasco87.15 @ 1
thumbzoomsustainablesupply.comC209234091.241In StockFasco15.091.24 @ 1
thumbzoomDreisilkerFA-RBC-D112595.181In StockFasco95.18 @ 1
thumbzoomsimsupply.comZO-G433448098.32197Fasco98.32 @ 1
thumbzoomfurnacepartsource.comD1125100.6414Fasco100.64 @ 1
thumbzoomVoomi SupplyD1125101.441In StockFASCO101.44 @ 1
thumbzoommidwestapplianceparts.comD1125-FA-P104.661In StockFasco104.66 @ 1
thumbzoomMRO Supply5762883111.331In StockFasco111.33 @ 1
thumbzoomasapelectricmotors.comFASD1125111.771In StockFASCO111.77 @ 1
thumbzoomindustrialstores.comD1125111.9115Fasco111.91 @ 1
thumbzoomptacsolutions.comD1125114.3216Fasco Motors114.32 @ 1
AmazonTPB06XB9Q521115.931In Stock2FASCO115.93 @ 1
thumbzoomwaterpumpsnow.comD1125145.21In StockFasco2.0145.2 @ 1
thumbzoomblackhawksupply.comD1125158.21In StockFasco Motors158.2 @ 1
uri.comD1125270.921In StockFasco3.6270.92 @ 1
