Hubbell Wiring Device-Kellems HBL330C7W

B0078RIG36

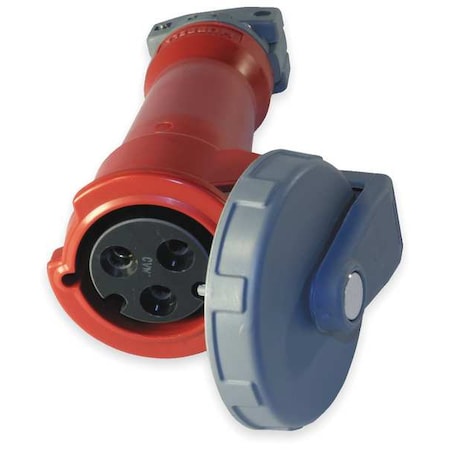

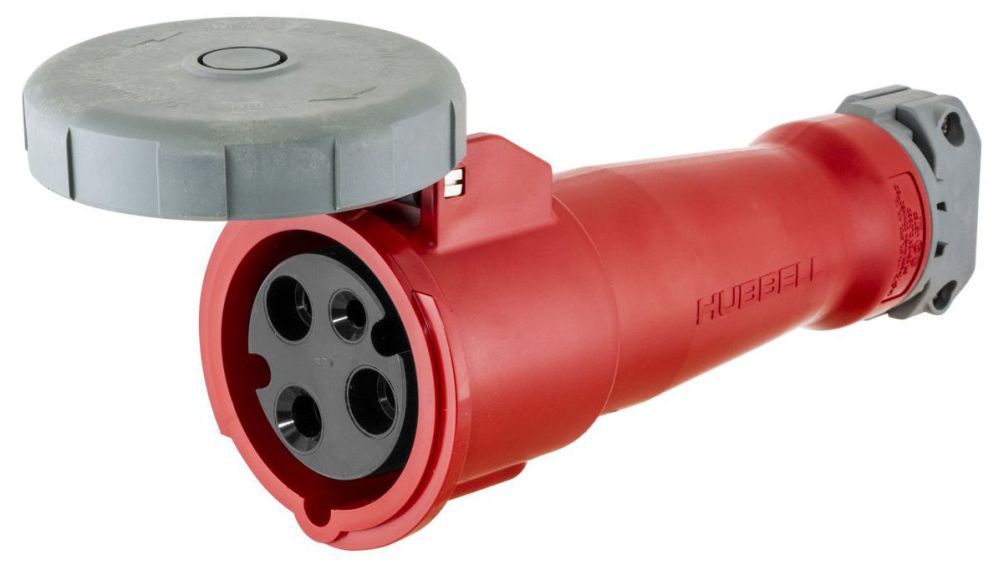

Iec Pin and Sleeve Connector, 30A, 480V

Iec Pin and Sleeve Connector, 30A, 480Vzoom

Attributes

Key Value
Amperage30A
Amperage Rating30
Amps30
Amps - Plugs and Recept.30
ApplicationHigh Ampacity Connectio.
ApprovalsCSA, UL
Aux/Pilot ContactsNone
Body MaterialZytel 801 Nylon
Body Material - Pin and.Zytel 801 Nylon
BrandHubbell, Hubbell Wiring.
Built-In Strain ReliefYes
Cap TypeSpring-Loaded Cap
Case MaterialNon-Metallic
Catalog NumberHBL330C7W
ColorRed
Color - Plugs and Recep.Red
Compatible with SeriesHBL Heavy Duty
Conductor Range#12 AWG to #8 AWG
ConnectionPressure Screw Terminal
Connection DescriptionWater Resistant
Connection OrientationStraight
Country of OriginUnited States
Country of Origin (subj.United States
Current Rating30 A
Current Stock3
Environmental ConditionsWatertight
Face Diameter3.6 in
Family SeriesHubbell Plugs & Recepta.
FeaturesAbuse Resistant
For Maximum Cable Diame.1.25 in
For Minimum Cable Diame.0.375 in
Gross Weight1.9 lbs
GroundingGrounded
Grounding StyleIEC
GTIN00783585403533
Horsepower Rating7 1/2 hp
Housing ColorRed
Housing MaterialPBT
Housing Material GradeZytel 801
Housing Material TypeNon-Metallic
HP-
InsulationInsulated Body
International ShippingNo
IP RatingIP67, IP68, IP69K
ItemWatertight Pin and Slee.
Item - Plugs and Recept.Watertight Pin and Slee.
Item NumberHBL330C7W
Item TypeWatertight Connector Bo.
Lead TimeExpected to ship in 1-2.
Lockout-TagoutNo
Made in USAYes
ManufacturerHubbell Wiring Device-K.
Manufacturer Part NumberHBL330C7W
MarketIndustrial
MaterialComposite
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size8 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size12 AWG
MountingCord
MpnHBL330C7W
NEMA Enclosure Rating4X
Net Weight0 lbs
Number of Conductors3-Wire Grounding
Number of Poles2
Number of Wires3
Outside Diameter3.71 in
Overall Length8.24 in
Phase1
Phase - Electrical1
Pin & Sleeve StandardsIEC 60309
Power Indicating LightNo
Product SeriesIEC Watertight
Resistance PropertiesCorrosion Resistant, Im.
Reverse ServiceNo
ShroudedYes
SizeStandard
SKUZO-G1500843
Special FeaturesWatertight
StandardCSA Certified File LR28.
StandardsC22.2 No. 182.1, CSA Ce.
Sub BrandPin and Sleeve
SubCategoryElectrical
Switch RatedNo
Temperature Range (F)-40-167 ?F
Temperature RatingMaximum Continuous: 75?.
Terminal TypeScrew
UL 94 Flammability Rati.V-0
UPC783585403533
Voltage480VAC, 480V, 480 V
Voltage - Plugs and Rec.480V AC
Voltage Color CodeRed
Voltage Rating480V AC, 480
Wire Connection TypeScrew Terminals
Wire Size10 AWG, 11 AWG, 12 AWG,.
Wire Size Range12-8 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBL330C7W187.461In StockHubbell187.46 @ 1
AmazonSCB00NGPU6DC212.181In StockHubbell212.18 @ 1
thumbzoomZoroG1500843236.251In Stock26Hubbell1.85236.25 @ 1
thumbzoomsustainablesupply.comC1168199267.161In StockHubbell1.85267.16 @ 1
thumbzoomsimsupply.comZO-G1500843294.7513Hubbell294.75 @ 1
thumbzoomMRO Supply1022097309.331In StockHubbell Wiring309.33 @ 1
standardelectricsupply.com2288162331.431In StockHubbell331.43 @ 1
thumbzoomgordonelectricsupply.comHBL330C7W336.41In StockHUBBELL336.4 @ 1
thumbzoomGalcoHBL330C7W-HBBL341.181In StockHubbell1.9341.18 @ 1
us.rs-online.com71992815356.741In StockHubbell Wiring Device-Kellems356.74 @ 1
steinerelectric.com443081414.221In StockHubbell Wiring Device-Kellems414.22 @ 1
thumbzoomcrescentelectric.com447810426.941In StockHubbell Wiring Device - Kellems426.94 @ 1
kirbyrisk.com1840336471.071In StockHubbell471.07 @ 1
thumbzoomRaptor SuppliesAB3TNX600.910831In StockHUBBELL WIRING DEVICE-KELLEMS600.91083 @ 1
