Hubbell SNAP2123BKNA

mpnSNAP2123BKNA
brandname: Hubbell
manufacturername: Hubbell

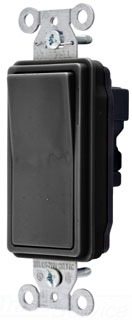

Hubbell 18611 Switch, See Image

Hubbell 18611 Switch, See Image

zoom

Brand: Hubbell
PartNumber: SNAP2123BKNA
Model: 18611
Color: See Image
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: Hubbell
Label: Hubbell

Attributes

Key	Value
Action	SPDT
Amperage	20 A
Approvals	CSA, UL
Color	Black
Current	20 A
Current / amperage rati.	20 A
Current rating	20 A
Dielectric strength	Withstands 1500V AC min.
Dimensions	4.28 in x 1.44 in x 1.5.
Family Series	Hubbell Switches
Grade	Heavy Duty
Gross Weight	0.2 lbs
Grounding	Self
Height	1.54 in
HP @ 120 VAC	1 hp
HP @ 240 VAC	2 hp
Illuminated	No
Industry Standard(s)	UL Listed
Item Number	SNAP2123BKNA
Length	4.28 in
Locking	No
Manufacturer	Hubbell
Manufacturer Part Number	SNAP2123BKNA
Material	Thermoplastic
Max Temperature Rise	30C maximum at rated cu.
Mounting Screw Type	Thread Cleaning Captive
Net Weight	0 lbs
Number of poles	Single pole
Operating temperature	Maximum continuous 75C .
Operator	Rocker
Operator Color	Black
Performance	-40C without impact, Me.
Style	Three way
Switch Configuration	Three way
Temperature	-40-167 ?F
Type	Rocker/Decorator
Voltage	120-277 VAC, 120 VAC, 2.
Voltage rating descript.	120-277 VAC
Width (in)	1.44
Wiring	Snap Connector

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	SNAP2123BKNA	29.41	1	In Stock		Hubbell		29.41 @ 1
	MRO Supply	1500127	41.0	1	In Stock		Hubbell Wiring		41.0 @ 1
	gordonelectricsupply.com	SNAP2123BKNA	41.18	1	In Stock		HUBBELL		41.18 @ 1
	Galco	SNAP2123BKNA-HBBL	42.21	1	In Stock		Hubbell	0.2	42.21 @ 1
	Newark	94Y2557	58.32	1	In Stock		HUBBELL WIRING DEVICES		58.32 @ 1
