Marathon Electric 445THFN8036

mpn445THFN8036
brandname: MARATHON MOTORS
manufacturername: MARATHON MOTORS

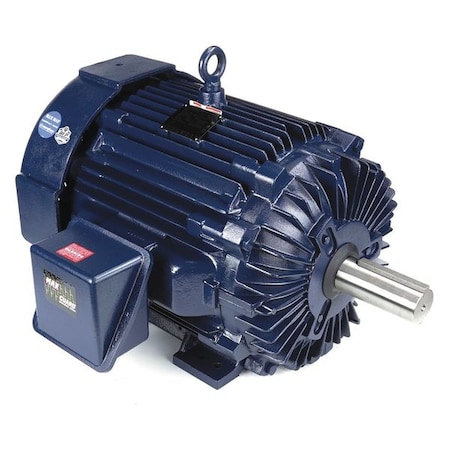

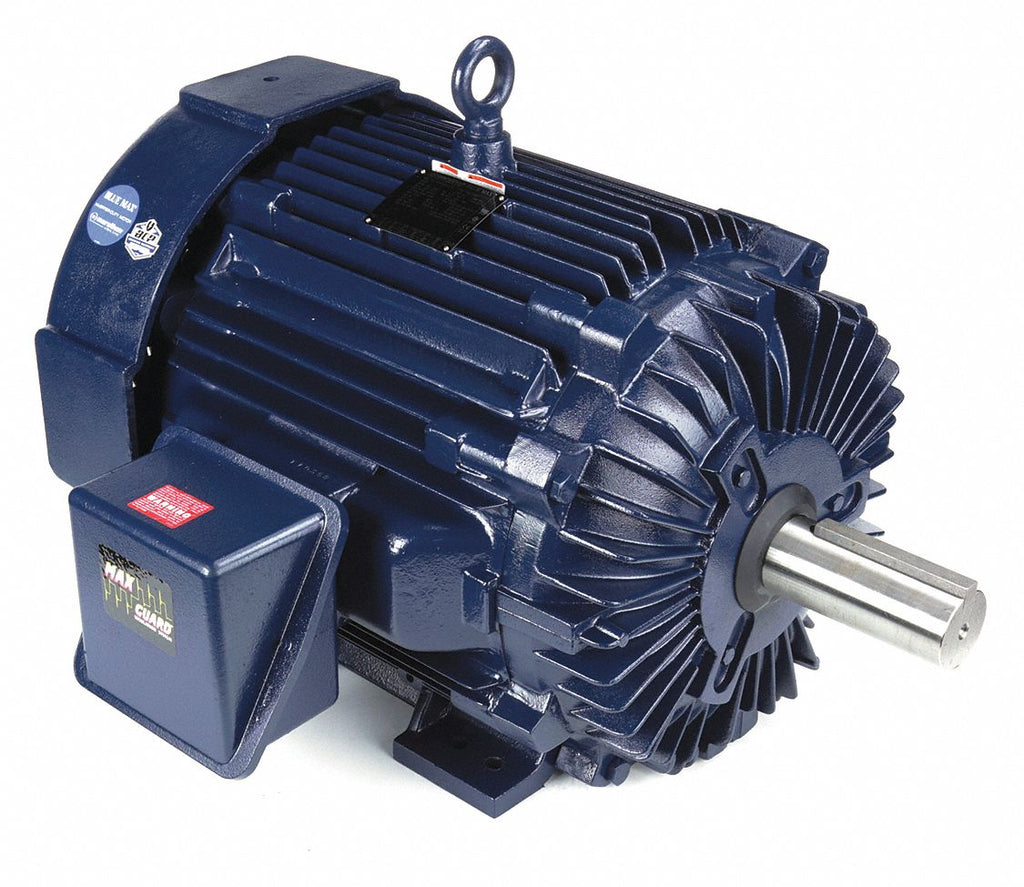

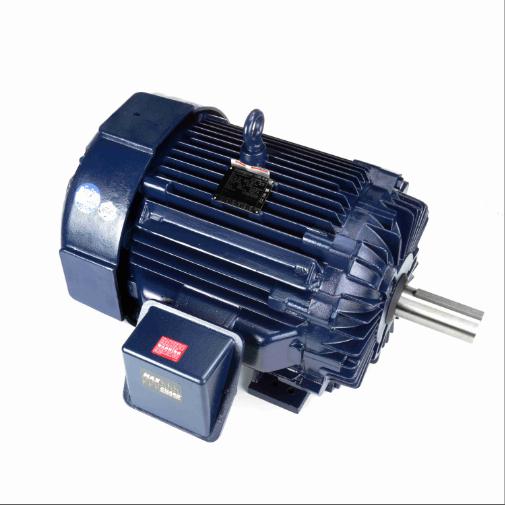

Marathon Electric/Regal Beloit - 445THFN8036-150 HP Vector Motor, 3-Phase, 1790 Nameplate RPM, 460 Voltage, Frame 445T

Brand: Marathon Electric
PartNumber: 445THFN8036
PackageQuantity: 1
Manufacturer: Marathon Electric / Regal Beloit
Label: Marathon Electric / Regal Beloit

Attributes

Key	Value
Ambient Temperature	40 Degrees C
Application	Application
Approval	Approval
Base	Rigid
Classification	Inverter Vector Duty: B.
Composition	Cast Iron
Conduit Box Location	Exterior
Conduit Box Position	F1, F2
Constant Torque Speed R.	Constant Torque Speed R.
Construction	Cast Iron
Country of Origin (subj.	United States
Drive End Flange Type	Standard
Duty	Continuous
Duty Cycle	Continuous
Efficiency	Efficiency
Efficiency %	94.5 %
Enclosure	TEFC, Totally Enclosed .
Encoder Acceptable	Yes
Encoder Shaft	1 in x 2 in
Encoder Shaft Dimensions	1 in x 1 5/8 in
Family Series	Marathon Electric Motors
Finish	Enamel
FL Amps	170
FL Efficiency	94.5
Frame	445T
Frame Material	Cast Iron, Frame Materi.
Frame Remarks	Rigid
Frequency Rating	Frequency Rating
Full Load Amps	170.0
Gross Weight	0 lbs
Hertz	60
Horsepower	150 hp
HP	150
Hz	60
Ins. Class	H
Insulation Class	Insulation Class
Insulation Feature	Class F
Item	Vector Motor
Item Condition	Factory New
Item Number	445THFN8036
Kilowatts	110 kW
KW	110
Manufacturer	Marathon Electric, Mara.
Manufacturer Part Number	Y577
Manufacturers Warranty .	3 yr
Max. Ambient Temp.	40 Degrees C
Max. Operating Frequency	90 Hz
Max. Speed	1,800 RPM
Motor Application	Crane
Motor Bearings	Ball
Motor Design	3-Phase
Motor Efficiency Group	Energy Efficient
Motor Enclosure Design	Totally Enclosed Fan-Co.
Motor FLA	Motor FLA
Motor Frame Material	Cast Iron
Motor Mounting Position	Horizontal
Motor Mounting Type	Rigid Base
Motor Service Factor	1
Motor Shaft Design	Keyed
Motor Shaft Rotation	CW/CCW
Motor Thermal Protection	T-Stat
Mounting	Footed
Mounting Type	Footed
Nameplate RPM	1,790
NEMA Design	A
NEMA Frame	445T
Net Weight	2247 lbs
No. of Speeds	1
Nominal Efficiency	94.5 %
Nominal Voltage	480 VAC
Number of Speeds	1, Number of Speeds
Overall Length	45 9/16 in
Part Number	445THFN8036
Phase	3, Three
Product Type	Vector Duty
RPM	1,790 RPM, 1800
RPM Range	1,701-1,800
Service Factor	Service Factor, 1
Shaft Dia.	3 3/8 in
Shaft Length	8 3/4 in
Speed (RPM)	1790
Speed Range	2,000:1
Speeds	Speeds
Standards	CE, CSA, UL Recognized
Unspsc	Unspsc
Usable @ 200V	No
Usable @ 208V	No
Variable Torque Speed R.	Variable Torque Speed R.
Voltage	460V, 460V AC
Voltage (AC)	460 VAC
Voltage Compatibility	200-230/440V AC, 200-23.
Volts	460
Warranty	3 yr
Weight	2,247 lb

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
mecampbell.com	445THFN8036	20398.16	1	In Stock	33	Marathon Motors		20398.16 @ 1
Galco	445THFN8036-MARA	20982.66	1	In Stock		Marathon Electric	2247.0	20982.66 @ 1
Dealers Electric	445THFN8036	22626.87	1	In Stock		Marathon Electric	2247.0	22626.87 @ 1
motorsandcontrol.com	Y577	23451.21	1	In Stock		Marathon Motors		23451.21 @ 1
Zoro	G9922832	24209.71	1	In Stock	25	Marathon Motors	2247.0	24209.71 @ 1
AmazonTP	B00JNVKEFS	25947.51	1	In Stock	30	Marathon Electric / Regal Beloit		25947.51 @ 1
sustainablesupply.com	C1513027	27115.78	1	In Stock		Marathon	1900.0	27115.78 @ 1
Raptor Supplies	AF8KHP	33438.9893175	1	In Stock		MARATHON MOTORS		33438.9893175 @ 1
pumpproducts.com	445THFN8036	34861.0	1	In Stock		Marathon		34861.0 @ 1
