39-29-0103

mpn0039290103
brandname: Molex
manufacturername: Molex

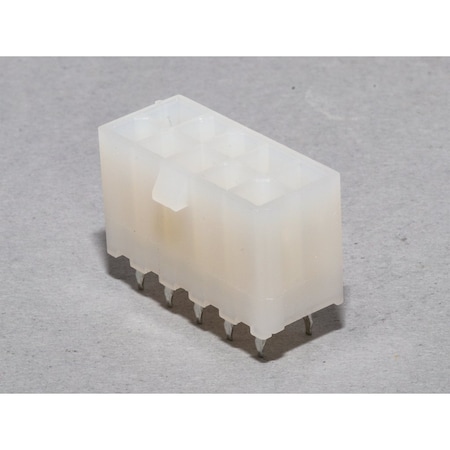

Headers & Wire Housings 10 CKT VERT HEADER (10 pieces)

PartNumber: 39-29-0103
PackageQuantity: 10
Manufacturer: Molex
Label: Molex

Attributes

Key	Value
Alternate Mfr Part Numb.	5566-10AGS
Category	Connectors, Interconnec.
Circuits (Loaded)	10
Circuits (maximum)	10
Color	Natural
Connector Type	Male Pin
Contact Finish - Mating	30.0?in (0.76?m)
Contact Finish - Post	Brass
Contact Finish Thicknes.	Tin
Contact Finish Thicknes.	General Purpose, Indust.
Contact Length - Mating	0.138" (3.50mm)
Contact Length - Post	-
Contact Material	Polyamide (PA66), Nylon.
Contact Shape	Gold
Contact Type	0.165" (4.20mm)
CSA	LR19980
Current - Maximum per C.	9.0A
Current Rating	9 A
Current Rating (Amps)	-
Durability (mating cycl.	30
Duration at Max. Proces.	5
Family Name	Mini-Fit Jr.
Fastening Type	-
Features	-
Flammability	94V-2
Ingress Protection	UL94 V-2
Insulation Color	-
Insulation Height	Square
Insulation Material	-
Mated Stacking Heights	100.0?in (2.54?m)
Material - Metal	Brass
Material - Plating Term.	Matte Tin
Material Flammability R.	Natural
Max. Cycles at Max. Pro.	1
Mfr	Molex
Mounting Type	Solder
Number of Circuits	10
Number of Contacts	10
Number of Positions	2
Number of Positions Loa.	Board to Cable/Wire
Number of Rows	2, 0.165" (4.20mm)
Operating Temperature	-
Orientation	Vertical
Overall Contact Length	0.504" (12.80mm)
Package	Active
Part Status	Header
PC Tail Length	3.50mm
Pitch	4.20 mm (0.165")
Pitch - Mating	10
Pitch - Mating Interface	4.20mm
Pitch - Termination Int.	4.20mm
Plating Material	Gold
Plating min - Mating	0.762?m
Plating min - Terminati.	2.540?m
Polarized to Mating Part	Yes
Polarized to PCB	Yes
Primary Type	Soft Shell
Process Temperature max.	260
Row Spacing - Mating	All
Series	Bulk, 5566 Series
Shrouded	Fully
Shrouding	Through Hole
Special Features	Low-Halogen
Style	Shrouded - 4 Wall
Temperature Range - Ope.	-40? to +105?C
Termination	Locking Ramp
Termination Interface: .	Through Hole
Type	Vertical Header
UL	E29179
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Sager Electronics	0039290103	1.47	1	2398	Molex	1.47 @ 25
Heilind Electronics	39-29-0103	1.56167	100	3892	MOLEX	1.56167 @ 100
Onlinecomponents.com	39-29-0103	1.66	1	25	Molex / Waldom	1.62 @ 26
TME	MX-39-29-0103	1.73	65	25	MOLEX	1.73 @ 65
Power and Signal Group	0039290103	1.9151	250	25	Molex	1.9151 @ 250
RS Delivers	670-5486P	2.34	1	630	Molex	2.34 @ 25
NEP Electronics	39-29-0103	2.75	30	25	Molex	2.75 @ 30
us.rs-online.com	70374062	2.92	1	25	Molex Incorporated	2.92 @ 25
Newark	34R5714	3.12	1	2403	MOLEX	3.12 @ 25
Digi-Key	WM3824-ND	3.935	1	25	Molex	3.935 @ 25
Radwell	39-29-0103	9.0	1	25	MOLEX	9.0 @ 25
Zoro	G4037421	132.25	25	25	Molex	132.25 @ 25
