- mpnOA205AN-11-1WB1856
- brandname: Orion (Knight Electronics, Inc.)
- manufacturername: Orion (Knight Electronics, Inc.)

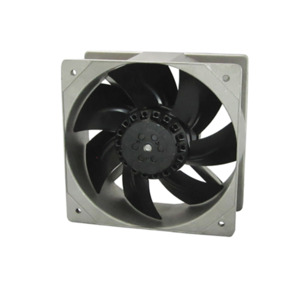

ORION FANS OA205AN-11-1WB1856 AC Fans Fan AC 205x72mm 115V All Metal IP56 Wires
- Brand: Orion Fans
- PartNumber: OA205AN-11-1WB1856
- Manufacturer: ORION FANS
- Label: ORION FANS
Attributes
| Key | Value |
|---|
| Air Flow | 590.0 CFM (16.52m?/min). |
| Approval Agency | CE, cURus, TUV, UR |
| Approximate Size | 8 x 8 in. ; 205 x 205 mm |
| Approximate Thickness | 2.8 in. ; 71 mm |
| Base Product Number | OA205AN |
| Bearing Type | Dual Ball, Ball |
| Category | Fans, Thermal Management |
| Configuration | Square |
| Current Rating (Amps) | - |
| Description | FAN AXIAL 205X72MM 115V. |
| Detailed Description | Fan Tubeaxial 115VAC Sq. |
| Digi-Key Part Number | 1053-1543-ND |
| Dimensions | 8 x 8 x 2.8 . ; 205 x 2. |
| Duty Type | Harsh Environment |
| Fan Type | Tubeaxial, AC |
| Features | Capacitor, Thermal Over. |
| Frequency | 50;60 Hz |
| Ingress Protection | IP56 - Dust Protected, . |
| Lifetime @ Temp. | 50000 Hrs @ 55?C |
| Manufacturer | Orion Fans |
| Manufacturer Product Nu. | OA205AN-11-1WB1856 |
| Manufacturer Standard L. | 19 Weeks |
| Material | Diecast Aluminum |
| Material - Blade | Metal |
| Material - Frame | Aluminum |
| Maximum Operating Tempe. | 80 C |
| Mfr | Orion Fans |
| Minimum Operating Tempe. | -30 C |
| Noise | 67.0dB |
| Noise Level | 68 dBA |
| Operating Temperature | -22 ~ 176?F (-30 ~ 80?C) |
| Package | Box |
| Power (Watts) | 80.0W |
| Power Rating | 105 W |
| Product Status | Active |
| Rotation | CCW |
| RPM | 3000 RPM |
| Series | OA205AN, OA205AN Series |
| Size | 8 x 2.8 (205 x 72) In. . |
| Size / Dimension | Square - 205mm L x 205m. |
| Special Features | All Metal |
| Speed | 3200 RPM |
| Static Pressure | 1.08 in H2O (269 Pa), 0. |
| Temperature Range | -30 to 80 C |
| Termination | 2 Wire Leads, Wire Leads |
| Type | Square |
| Voltage - Rated | 115VAC |
| Voltage Range | 100 ~ 120VAC |
| Voltage Rating | 115 V |
| Weight | 5.1 lbs (2.3 kg), 2300 g |
| Width | 72.00mm |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | OA205AN-11-1WB1856 | 87.34 | 1 | In Stock | | Orion Fans | | 87.34 @ 1 |
 | jensentools.com | 10141713 | 129.38 | 1 | In Stock | | Orion Fans | | 129.38 @ 1 |
 | Digi-Key | 4176862 | 130.01 | 1 | 102 | | Orion Fans | 5.1 | 130.01 @ 1 |
| us.rs-online.com | 70289150 | 130.06 | 1 | 6 | | Orion Fans | 5.06 | 130.06 @ 1 |
 | Newark | 89AH2416 | 134.3 | 1 | In Stock | | ORION FANS | | 134.3 @ 1 |
