Panduit LCD250-38D-X

B00B5NMMYS

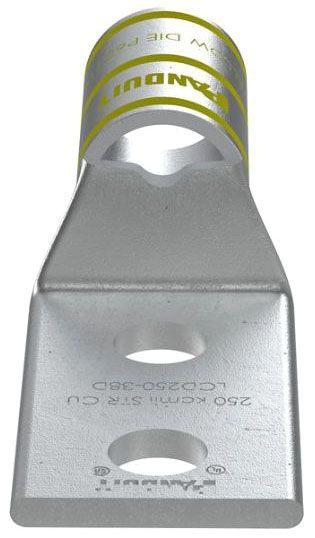

Panduit LCD250-38D-X Code Conductor Lug, Two Hole, Standard Barrel With Window, 250kcmil Copper Conductor Size, Yellow Color Code, 3/8" Stud Hole Size, 1.00" Stud Hole Spacing, 1-5/16" Wire Strip Length, 0.14" Tongue Thickness, 1.17" Tongue Width, 1.25" Neck Length, 3.54" Overall Length

Panduit LCD250-38D-X Code Conductor Lug, Two Hole, Standard Barrel With Window, 250kcmil Copper Conductor Size, Yellow Color Code, 3/8" Stud Hole Size, 1.00" Stud Hole Spacing, 1-5/16" Wire Strip Length, 0.14" Tongue Thickness, 1.17" Tongue Width, 1.25" Neck Length, 3.54" Overall Lengthzoom

Attributes

Key Value
Allowable Gauge Range250
ApprovalsCSA, UL
Base Product NumberLCD250
BrandPanduit, Pan-Lug?
Cable Size250 kcmil
Catalog NumberLCD250-38D-X
CategoryConnectors, Interconnec.
ColorYellow
Color CodeYellow
Color FamilyYellow
Connection MaterialTin
Connection Type1 x Terminal
Connector TypeStandard Barrel
Contact FinishElectro-Tin
Contact MaterialCopper
Country of OriginMX - Mexico, Mexico
Country of Origin (subj.Mexico
Diameter - Barrel ID0.630" (16.00mm)
Diameter - Barrel OD0.770" (19.56mm)
Diameter - Ring ID0.410" (10.41mm)
Die ColorYellow
ECCNEAR99
Family SeriesPanduit Terminals, Pan-.
Features-
FinishTin-Plated
Gross Weight2 lbs
GTIN00074983383320
InsulationNon-Insulated
ItemLug Compression Connect.
Item NumberLCD250-38D-X
Item TypeCopper Compression Conn.
Length3.54"
Length - Overall3.540" (89.92mm)
Lug Wire Size250 kcmil
Made in USANo
ManufacturerPanduit
Manufacturer Part NumberLCD250-38D-X
MaterialCopper, Tin-Plated Copp.
Material/CompositionCopper
Max Conductor Range250 kcmil
MfrPanduit Corp
Min Conductor Range250 kcmil
Mounting2-Hole, 42374
Mounting TypeFree Hanging (In-Line)
Net Weight0 lbs
Number of Conductors1
Number of Holes2
Outer Diameter0.77 in.
PackageBulk
Part StatusActive
Product SeriesPan-Lug Compression
RoHS CompliantYes
SeriesPan-Lug?
Size250 kcmil Code
Special FeaturesConsult cable manufactu.
StandardC22.2 No. 65-13, 486A-4.
Stud Hole Spacing1 in.
Stud Size3/8 in, 44628
Stud/Tab Size3/8 Stud
Sub BrandPan-Lug
Tab Thickness0.140" (3.56mm)
Terminal StyleTwo Stud Holes
Terminal TypeRectangular Tongue
TerminationCrimp, Barrel
UNSPSC39121405
UPC074983383320
Width1.17"
Width - Outer Edges1.170" (29.72mm)
Wire Gauge250MCM (kcmil)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcbtcompany.comLCD250-38D-X10.411In StockPANDUIT10.41 @ 1
thumbzoomalldataresource.comPAN-LCD250-38D14.171In StockPanduit14.17 @ 1
Digi-Key456620617.68100054Panduit Corp17.68 @ 1
Onlinecomponents.comLCD250-38D-X19.591In StockPanduit19.59 @ 1
thumbzoomGalcoLCD250-38D-X-PNDT23.1310In StockPanduit2.023.13 @ 10
thumbzoomZoroG077730123.191In Stock58Panduit2.023.19 @ 1
thumbzoomPlatt.com061106024.61In StockPanduit24.6 @ 1
thumbzoomcrescentelectric.com1062226.321In StockPanduit26.32 @ 1
Airline HydraulicsPANDUIT LCD250-38D-X27.871In StockPanduit Corp27.87 @ 1
Newark66H1527182.651In StockPANDUIT182.65 @ 1
thumbzoomCarlton Bates Company07498338332213.51In StockPANDUIT213.5 @ 1
thumbzoomgordonelectricsupply.comLCD250-38D-X243.01In Stock12PANDUIT243.0 @ 1
thumbzoomturtle.comPAN LCD250-38D-X2724.641In StockPanduit2724.64 @ 1
steinerelectric.com630902790.081In StockPanduit2790.08 @ 1
Graybar960709163048.05761In StockPanduit3048.0576 @ 1
