- mpnTLC2202CP
- brandname: Texas Instruments
- manufacturername: Texas Instruments

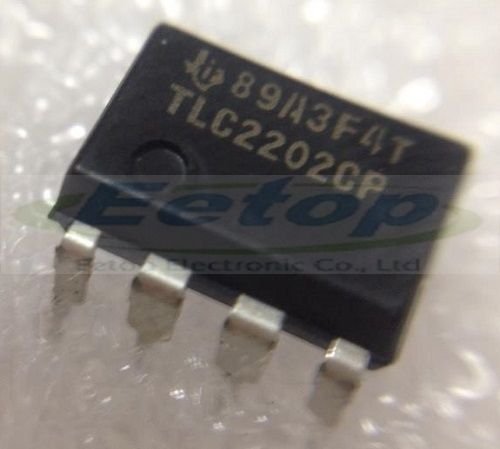

1PC X TLC2202CP
- Brand: !iT Jeans
- PartNumber: TLC2202CP
- Size: 1 Piece
- Manufacturer: TI
- Label: TI
Attributes
| Key | Value |
|---|
| Amplifier Type | General Purpose, CMOS |
| Base Part Number | TLC2202 |
| Base Product Number | TLC2202 |
| Case | DIP8 |
| Category | Integrated Circuits (IC. |
| Com Mode Inp Range (VIC. | 3.2 |
| Current - Input Bias | 1pA, 4 ?A |
| Current - Output / Chan. | 50 mA, 50mA |
| Current - Supply | 1.8mA, 5.6mA (x2 Channe. |
| Description | IC CMOS 2 CIRCUIT 8DIP |
| Detailed Description | CMOS Amplifier 2 Circui. |
| Digi-Key Part Number | 296-7071-5-ND |
| Gain Bandwidth Product | 1.9MHz, 1.9 MHz |
| I(io) Max. (A) | 100p |
| Inp Bias Curr. Max. (A) | 100p |
| Lead Free Status / RoHS. | RoHS Compliant |
| Manufacturer | Texas Inst., Texas Inst. |
| Manufacturer Part Number | TLC2202CP |
| Manufacturer Product Nu. | TLC2202CP |
| Manufacturer Standard L. | 12 Weeks, 6 Weeks |
| Mfr | Texas Instruments |
| Mounting Type | Through Hole |
| No. of Pins | 8 |
| Nom. Supp (V) | 5.0 |
| Number of Circuits | 2 |
| Oper. Temp (?C) Max. | 70 |
| Oper. Temp (?C) Min | 0 |
| Operating Temperature | 0?C ~ 70?C, 0 |
| Output Type | Rail-to-Rail |
| Package | Tube |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Packaging | Tube |
| PD Max. (W) | 1.0 |
| Pinout Equivalence Numb. | 8-1428 |
| Product Status | Active |
| Series | LinCMOS, - |
| SKU | 318854 |
| Slew Rate | 2.7V/?s, 2.7V/ |
| Standard Package | 50 |
| Supplier Device Package | 8-PDIP |
| Surface Mounted Yes/No | NO |
| Temp Coef. of VIO | 500n- |
| Type | SemiConductor |
| V(io) Max. (V) | 1.15m |
| Voltage - Input Offset | 100, 2 mV |
| Voltage - Supply Span (. | 16 V |
| Voltage - Supply Span (. | 4.6 V |
| Voltage - Supply, Singl. | 4.6V ~ 16V, |
| Weight (lbs) | (0.2) |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Digi-Key | 378551 | 4.82461538462 | 65 | 32824 | | Texas Instruments | | 4.82461538462 @ 65 |
| iodParts | TLC2202CP | 4.898 | 150 | 2800 | | Texas Instruments | | 4.898 @ 150 |
| Hotenda | H2690915 | 6.28 | 1 | 149 | | Texas Instruments | | 6.28 @ 1 |
 | BD Enterprises | TLC2202CP | 10.5 | 1 | In Stock | | Texas Inst. | 0.2 | 10.5 @ 1 |
| Little Diode | TLC2202CP | 17.8217325 | 1 | In Stock | | TI | | 17.8217325 @ 1 |
