- mpnA2240806-UNC4
- brandname: Walter Prototyp
- manufacturername: Walter Prototyp

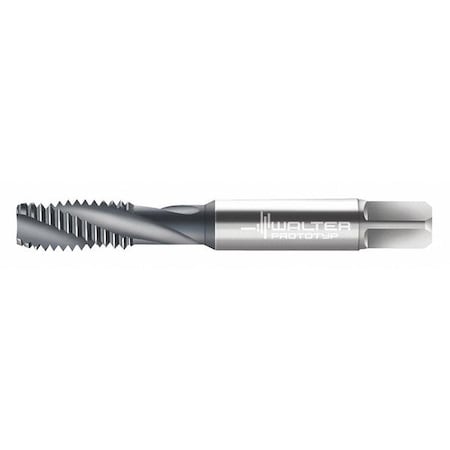

Walter Tools A2240806-UNC4 Paradur HSS Machine Tap, TICN Finish, 0.141" Shank Diameter, 0.394" Cutting Length, 1-7/8" Overall Length, No. 4-40 Cutting Diameter
- Brand: Walter Tools
- PartNumber: A2240806-UNC4
- Model: 5348362
- Size: No. 4-40
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Walter
- Label: Walter
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | 3/32 in |
| 65% Thread Drill Size | 2.30 mm |
| 75% Thread Drill Size | 2.20mm |
| Catalog Page | N/A |
| Class of Fit | 3B |
| Coolant Fed | Non-Coolant Through |
| Country of Origin | Germany |
| Country of Origin (subj. | Germany |
| Cutting Direction - Mac. | Right Hand |
| Drill Bit Size | 0.0930 in |
| Extended Neck | Yes |
| Helix Angle | 25 ?, 25 Degrees |
| Item | Spiral Flute Tap |
| Item? | 427M74 |
| List Number | A2240806 |
| Measurement System | Pipe |
| Mfr. Model? | A2240806-UNC4 |
| Number of Flutes | 3 |
| Number of Pieces | 1 |
| Overall Length | 1-15/16", 47.70 mm |
| Pitch Diameter Limit | 3B |
| Primary Material Applic. | Nickel; Titanium, Nicke. |
| Primary Material Applic. | S |
| Secondary Material Appl. | Steel |
| Secondary Material Appl. | P |
| Series | Paradur Ni |
| Shank Dia. | 1/8", 3.58 mm |
| Shank Length | 37.70 mm |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Square Size | 2.79mm |
| Standards | ANSI B94.9, ASME B1.1 |
| Tap Chamfer | Plug, Modified Bottomin. |
| Tap Dimension Type | Inch |
| Tap Finish | TiCN |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI B94.9 |
| Tap Size | #4 |
| Tap Style | Spiral Flute |
| Tap Thread Size | #4-40 |
| Tap Thread Type | UNC |
| Thread Direction | Right Hand |
| Thread Length | 3/8", 10.00 mm |
| Thread Limit | H2; H3, H2, H3 |
| Thread Limit / Class of. | H2 / 3B; H3 / 3B, H2 / . |
| Thread Size | #4-40 |
| Thread Standard | UNC |
| Threads per Inch | 40 |
| UNSPSC | 27112806 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2560831 | 53.79 | 1 | In Stock | | Walter Prototyp | 0.01 | 53.79 @ 1 |
| Grainger | 427M74 | 65.49 | 1 | In Stock | | WALTER PROTOTYP | | 65.49 @ 1 |
