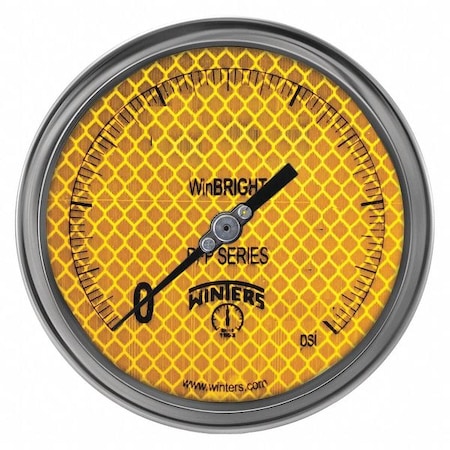

Winters Instruments PFP604WBYG

B08HJM1C37

Gauge,4" Dial Size,MNPT Connection

Gauge,4" Dial Size,MNPT Connectionzoom

Attributes

Key Value
Accuracy+/- 1%
Accuracy GradeASME B40.100 Grade 1A
Accuracy ScaleFull Scale
Ambient Operating Tempe.-4 Degrees to 150 Degr.
Bezel Gasket MaterialBuna-N
Bezel Material304 Stainless Steel
Bezel Mounting TypeBayonet Ring
Blowout Safety BackYes
BrandWinters
Calibration Certificate.No
Case ColorGray
Case ConstructionWelded Joint
Case Depth1.95 in
Case Diameter3.964 in
Case MaterialStainless Steel
CharacteristicsProtects Against Vibrat.
Cleaned for Oxygen Serv.No
ColorGray
Compatible Process MediaOil
Connection LocationBottom
Connection Size1/4 in NPT
Country of Origin (subj.China
Current Stock42
Dial ColorReflective Fluorescent .
Dial Face ColorMultiple
Dial Face MaterialAluminum
Dial Size (In.)4
Diameter5.260"
Dry Dampening FeatureNone
Field FillableNo
For Use WithCompressors, Hydraulic .
Freeze Resistant Moveme.No
Gauge Accuracy+/-1.00%
Gauge Accuracy GradeGrade 1A - Industrial
Gauge ApplicationHydraulic Equipment, Oi.
Gauge Case ColorGray
Gauge Case LiquidGlycerin
Gauge Case Material304 Stainless Steel
Gauge Connection Locati.Bottom
Gauge Connection Size1/4 in
Gauge Connection TypeMNPT
Gauge Filled WithGlycerin
Gauge Lens MaterialPolycarbonate
Gauge Nominal Dial Size4 in
Gauge Primary Range Val.0 to 100
Gauge Sensor MaterialBrass
Gauge Socket MaterialBrass
Gauge Special OptionsHeavy Duty
Gauge Wetted PartsBrass / Bronze
Hazardous Location Rati.Not Rated
IncludesBayonet Ring, Liquid Fi.
Includes Calibration Ce.No
Includes Mounting Hardw.No
Includes Vent PlugNo
International ShippingNo
IP/NEMA RatingIP66, NEMA 4X
ItemIndustrial Pressure Gau.
Lens MaterialPolycarbonate
Lens Material - GaugePlastic
Liquid FilledYes
Liquid-Filled CaseYes
Manufacturer Warranty L.5 yr
Manufacturers Warranty .5 yr
MaterialAISI 304 Stainless Steel
Max. Pressure (PSI)100
Movement MaterialBrass OT59
MpnPFP604WBYG
Nominal Dial Size4 in
Non-SparkingNo
Operating Temp. Range-4 Degrees to 150 Degr.
Over-Pressure Limit25%
Panel-MountableNo
Pointer CharacteristicsMicrometer Adjustable
Pointer ColorBlack
Pointer MaterialAluminum
Pressure Gauge TypeIndustrial Pressure Gau.
Pressure Range0 to 100 psi
Pressure Range TypePressure
Primary Pressure Range0 to 100
Primary Scale Unitspsi
Process Connection Gend.Male
Process Connection Loca.Bottom
Process Connection Size1/4 in
Process Connection TypeNPT
Process Temperature Ran.-40 Degrees to 250 Deg.
Prop 65WARNING: Cancer and Rep.
Range0 to 100 psi/kPa
Removable BezelYes
Scale TypeDual
Secondary Pressure Range0 to 690
Secondary Scale UnitskPa
Sensor MaterialPhosphor Bronze
Sensor TypeBourdon Tube
SeriesPFP
SKUZO-G6622353
SubCategoryTest Instruments
Vibration ResistanceLiquid-Filled

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG662235372.991In StockWinters Instruments1.872.99 @ 1
thumbzoomsimsupply.comZO-G662235389.86142Winters89.86 @ 1
