3M C3SD MV10-10FBX

mpnMV10-10FBX
brandname: 3-M
manufacturername: 3-M

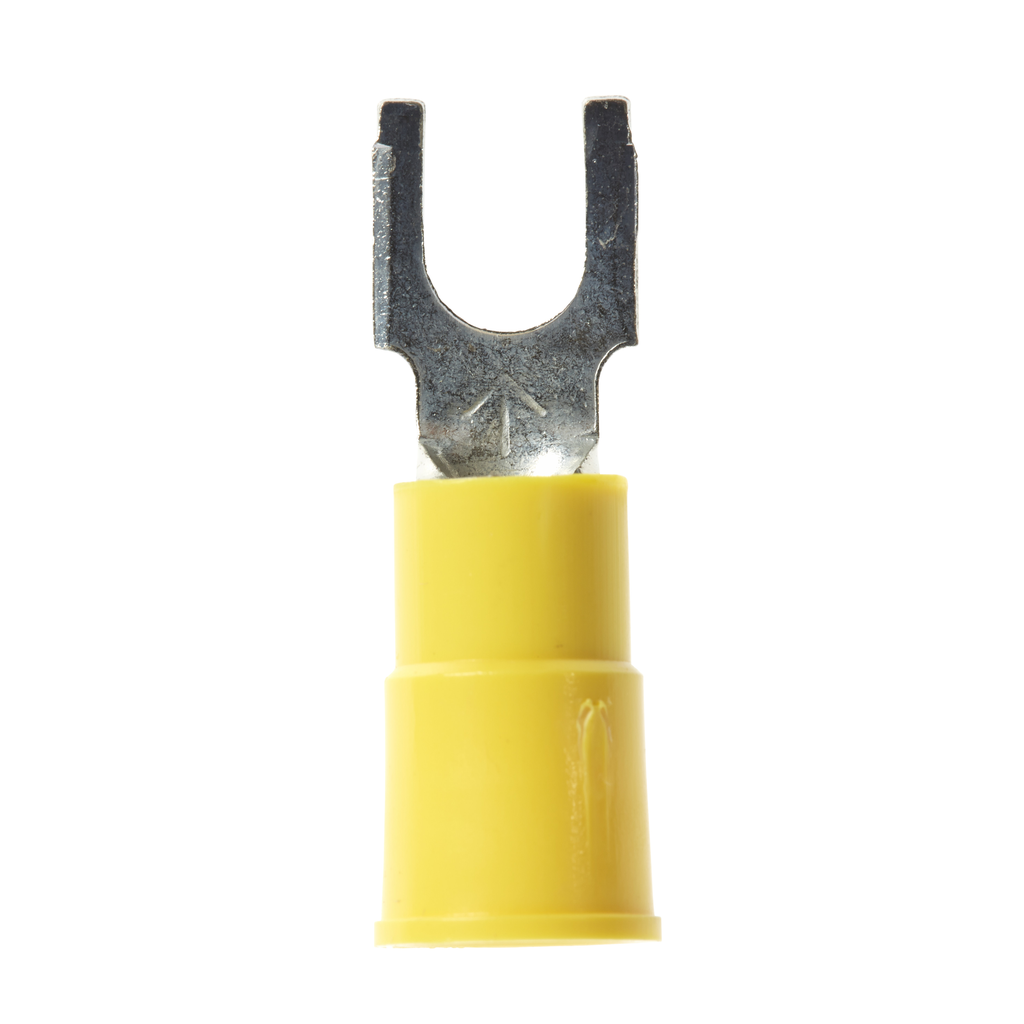

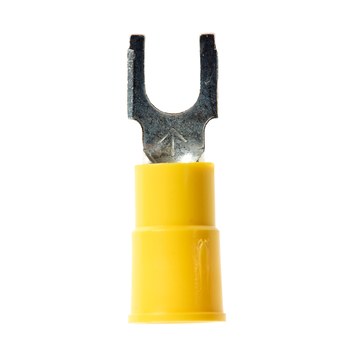

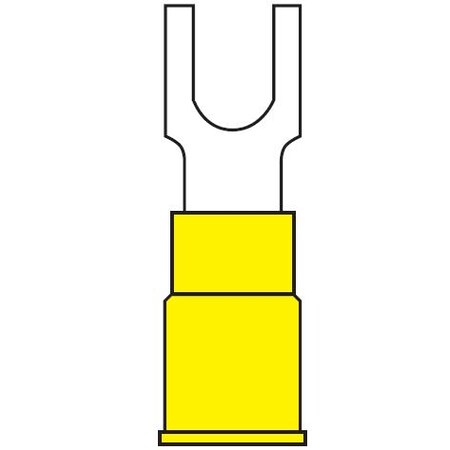

3M Scotchlok Block Fork MV10-10FBX, 12-10 AWG Yellow, Corrosion-Resistant, Vinyl Insulated Terminals

Brand: 3M C3SD
PartNumber: MV10-10FBX
Model: MV10-10FBX
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: 3M
Label: 3M

Attributes

Key	Value
3M Number	MV10-10FBX
Allowable Gauge Range	12 - 10
Angle	Straight
Barrel Diameter	0.135 Inch ID x 0.25 In.
Barrel Inside Diameter	0.135 Inch
Barrel Length	0.25
Barrel Length Type	Brazed
Barrel Size	0.135 in ID x 0.25 in L
Barrel Style	Brazed
Barrel Type	Brazed Seam
Brand	3M
Brand Name	3M
Category	Electrical Terminals
Clearance	0.29 in
Clearance (C)	0.29 Inch
Color	Yellow
Color Code	No
Color Family	Yellow
Conductor Size	12 to 10, 12-10 AWG
Conductor Type	Stranded Copper
Connector Type	Block Fork
Contact Material	ETP Copper
Contact Plating	Tin
Country of Origin	US - United States, USA.
Country Of Origin	United States of America
Country of Origin (subj.	United States
Dimension E	0.84 Inch
Dimensions	1.03 Inch Length
ECCN	EAR99
Energy Star Flag	No
Fastening Mechanism	Locking
Finish	Tin Plated, Tin, Tin-Pl.
Fork Type	Block
Fork Width	0.32 in
GTIN	00051128587669
Inside Diameter	0.135 in
Insulation Diameter	0.25 "
Insulation Length	0.84 in
Insulation Material	Vinyl
Insulation Type	Vinyl
Item Name	Fork Terminal
Length	1.03
Made In America	Yes
Manufacturer	3M
Manufacturer Name	3M
Manufacturer Part Number	MV10-10FBX
Manufacturing Origin	USA
Material	ETP Copper, Electrolyti.
Material Thickness	0.040 in.
Material:	PVC
Maximum Conductor Size .	10 AWG
Maximum Conductor Size .	5.26 mm?
Maximum Insulation Oute.	0.25 in
Maximum Insulation Oute.	3.7 mm
Maximum Insulation Outs.	0.25 in, 0.145 in
Maximum Operating Tempe.	221 ?F
Maximum Operating Tempe.	105.0 Degree
Maximum Operating Tempe.	221.0 Degree
Maximum Recommended Vol.	600.0 V
Maximum Wire Size	10 AWG
Minimum Conductor Leg D.	12 AWG
Minimum Conductor Size .	12 AWG
Minimum Conductor Size .	3.31 mm?
Minimum Wire Size	12 AWG
Number Of Terminals:	50 per bottle
Overall Length	1.03 ", 1.03 in
Overall Length (Imperia.	1.03 in
Overall Length (Metric)	26.162 mm
Overall Width	0.32 in, 0.32 "
Overall Width (Imperial)	0.32 in
Overall Width (Metric)	8.128 mm
Package Quantity	50, 50 per bottle, 500 .
Packaging	50 per bottle
Product Color	Yellow
RoHS EU Comments	RoHS 2011/65/EU complia.
RoHS Flag	Yes
Series	Scotchlok Series
Shape	Fork
Solution for : Wireless.	Infrastructure Accessor.
Special Features	Brazed Seam, Barrel, Bl.
Specifications	1/4 in Dia Max Insulati.
Standard:	UL and CSA
Standards	UL Listed, CSA Certifie.
Stud Size	#10, M5 (#10)
Sub Brand	Scotchlok?
Sub Brand:	Scotchlok
Tang Size	0.32 Inch Width x 0.04 .
Tang Type	No
Temperature Rating	-40 to 105 deg C
Temperature Rating (Deg.	-40 to 221
Terminal Size:	12 - 10 AWG
Terminal Style	Block
Terminal Type	Fork
Tongue Size	0.32 in W x 0.04 in THK
Tongue Type	Fork
Trade Name	Scotchlok
Type	Fork, Fork Terminal, In.
Type:	Fork
UL File Number	E23438
Units per Case	500.0
UNSPSC	39121432
UPC	05112858766, 0511285876.
Voltage Rating	600/1000, 600 V (Buildi.
Wire Size	12-10 AWG

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Monarch Electric	56226	0.86	1	50		3M	0.86 @ 50
turtle.com	MMM MV10-10FBX	0.94	1	50		3M	0.94 @ 50
mayerelectric.com	MMMMV1010FBX	1.06	1	50		3M	1.06 @ 50
Platt.com	0063592	1.22	1	1588		3M	1.22 @ 50
Newark	55T9468	1.51	50	50		3M	1.51 @ 50
Zoro	G4833780	1.61	1	50	2	3M	1.61 @ 50
us.rs-online.com	70113249	32.21	1	50		3M	32.21 @ 50
Dale-Electric	MV10-10FBX	35.47	1	50		3M	35.47 @ 50
rshughes.com	051128-58766	38.5	50	50		3M	38.5 @ 50
gordonelectricsupply.com	MV10-10FBX	39.8	1	50	455	3-M	39.8 @ 50
standardelectricsupply.com	2361579	42.0	1	50		3M	42.0 @ 50
Carlton Bates Company	05112858766	64.0	1	50		3M	64.0 @ 50
electricalparts.com	MV10-10FBX	67.9056	1	50		3M	67.9056 @ 50
Graybar	25323554	122.5952	1	50		3M	122.5952 @ 50
