- mpnC22807
- brandname: Cle-Line
- manufacturername: Cle-Line

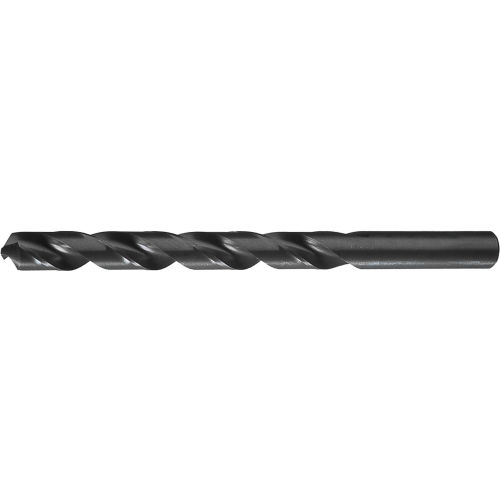

Cle-Line C22807 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 1.70 mm Drill Diameter (Pack of 12)
- Brand: Cle-line
- PartNumber: C22807
- Model: C22807
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.0669 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.0669" |
| Diameter (Metric) | 1.70mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 1.70 mm |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0005 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0201mm |
| Drill Size - Decimal In. | 0.0669 in |
| Drill Size - Metric | 1.7 mm |
| Drill Size System | Metric |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Flute Length | 20.00mm, 0.7874", 20 mm |
| Flute Length (Metric) | 20.00mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Jobber Length Drill Bit |
| List Number | 1899 |
| Material | HSS |
| Maximum Drilling Depth | 37/64 in |
| Measurement System | Metric |
| Number of Flutes | 2 |
| Overall Length | 1.6929", 43 mm, 43.00mm |
| Overall Length (Metric) | 43.00mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 1.7 mm |
| Shank Length | 23 mm, 0.9055" |
| Shank Length (Metric) | 23.00mm |
| Shank Size | 0.0669", 1.7 mm Dia x 2. |
| Shank Size (Metric) | 1.70mm |
| Shank Type | Straight |
| Standards | DIN 338 |
| Style | 1899 |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 1.70mm, 1.7mm |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C22807 | 0.77 | 1 | 12 | | Cle-Line | | 0.77 @ 12 |
 | heavydutydepot.com | C22807 | 0.77 | 130 | 12 | | Cle-Line | | 0.77 @ 130 |
 | MRO Supply | 6124376 | 1.02 | 50 | 12 | | Cle-Line | | 1.02 @ 50 |
 | Zoro | G4942835 | 1.15 | 12 | 12 | 26 | Cle-Line | 0.21 | 1.15 @ 12 |
 | usmegastore.com | C22807 | 1.31 | 1 | 12 | | Cle-Line | | 1.31 @ 12 |
 | Global Industrial | WBB2545018 | 9.48 | 1 | 12 | | Cle-Line | | 9.48 @ 12 |
