Cle-line C22814

mpnC22814
brandname: Cle-Line
manufacturername: Cle-Line

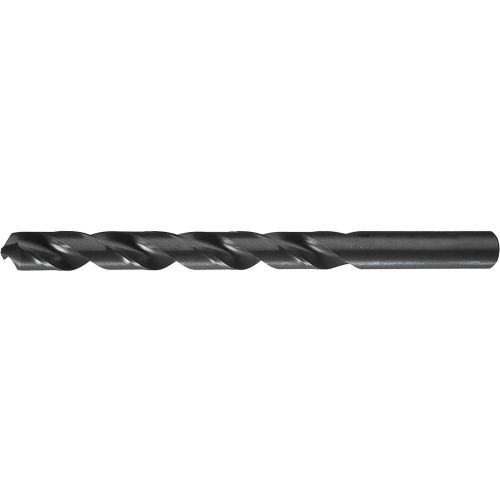

Cle-Line C22814 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 2.05 mm Drill Diameter (Pack of 12)

Brand: Cle-line
PartNumber: C22814
Model: C22814
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Alloy Steel, Carbon Ste.
Catalog Page	N/A
Coolant Fed	Non-Coolant Through
Country of Origin	USA
Cutting Depth	5XD
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.0807
Depth:Dia. Ratio	4xD
Diameter	0.0807"
Diameter (Metric)	2.05mm
Drill Bit Point Angle	118 ?
Drill Bit Point Type	Conventional Point
Drill Bit Size	2.05 mm
Drill Construction	General Purpose
Drill Diameter Measurem.	Metric/Imperial
Drill Diameter Tolerance	+0.0000 in /-0.0005 in
Drill Length Class	Jobber Length
Drill Point Length	0.0242mm
Drill Size - Decimal In.	0.0807 in
Drill Size - Metric	2.05 mm
Drill Size System	Metric
Drill Style	Jobber Drill
Finish	Black Oxide
Finish - Machining	Black Oxide
Flute Length	24.00 mm, 0.9449", 24 mm
Flute Length (Metric)	24.00mm
Flute Type	Right Spiral, Spiral
Hand of Cut	Right
Hand of Spiral	Right
Helix Angle	21? to 34?
Item?	50CL65
Material	HSS
Material - Machining	High Speed Steel
Maximum Drilling Depth	5/16 in
Measurement System	Metric
Mfr. Model?	C22814
Number of Flutes	2
Overall Length	49 mm, 49.00 mm, 1.9291"
Overall Length (Metric)	49.00mm
Point Angle	118 deg, 118?
Point Style	Radial
Point Type	Radial
Primary Material Applic.	Aluminum; Cast Iron; St.
Primary Material Applic.	K; N; P
Series	1899
Shank Configuration	Straight
Shank Length	0.9842", 25 mm
Shank Length (Metric)	25.00mm
Shank Size	2.05 mm Dia x 25 mm L, .
Shank Size (Metric)	2.05mm
Shank Type	Straight
Shank Type - Machining	Straight
Spiral Direction	Right Hand
Standards	ASME B94.11M; DIN 338
Style	1899
Surface Condition	Steam Oxide
Through Coolant (Yes/No)	No
Tool Size	2.05mm
UNSPSC	27112801

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Megadepot	C22814	0.77	1	12		Cle-Line		0.77 @ 12
heavydutydepot.com	C22814	0.77	130	12		Cle-Line		0.77 @ 130
MRO Supply	6124383	1.02	50	12		Cle-Line		1.02 @ 50
Zoro	G4942771	1.15	12	12	10	Cle-Line	0.09	1.15 @ 12
usmegastore.com	C22814	1.34	1	12		Cle-Line		1.34 @ 12
Grainger	50CL65	1.43	1	12		CLE-LINE		1.43 @ 12
Global Industrial	WBB2545155	9.48	1	12		Cle-Line		9.48 @ 12
