- mpnC22878
- brandname: Cle-Line
- manufacturername: Cle-Line

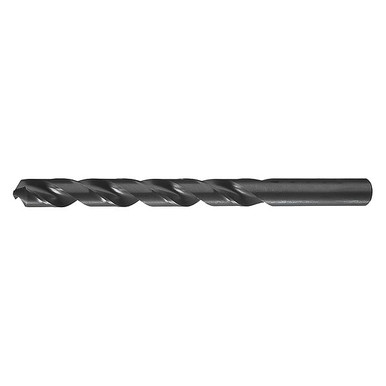

Cle-Line C22878 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 8.00 mm Drill Diameter (Pack of 6)
- Brand: Cle-line
- PartNumber: C22878
- Model: C22878
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Brand | Cle-Line |
| Coolant Fed | Non-Coolant Through |
| Current Stock | 17 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.3150 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.3150" |
| Diameter (Metric) | 8.00mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 8.00 mm |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0010 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0946mm |
| Drill Size - Decimal In. | 0.315 in |
| Drill Size - Metric | 8 mm |
| Drill Size System | Metric |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Flute Length | 75 mm, 2.9528", 75.00mm |
| Flute Length (Metric) | 75.00mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| List Number | 1899 |
| Material | HSS |
| Maximum Drilling Depth | 2 13/64 in |
| Measurement System | Metric |
| Mpn | C22878 |
| Number of Flutes | 2 |
| Overall Length | 117.00mm, 4.6063", 117 . |
| Overall Length (Metric) | 117.00mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 8 mm |
| Shank Length | 42 mm, 1.6535" |
| Shank Length (Metric) | 42.00mm |
| Shank Size | 8 mm Dia x 42 mm L, 0.3. |
| Shank Size (Metric) | 8.00mm |
| Shank Type | Straight |
| SKU | ZO-G4939037 |
| Standards | DIN 338 |
| Style | 1899 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 8mm, 8.00mm |
| UPC | 697334228783 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2545022 | 2.7733 | 6 | 6 | | Cle-Line | | 2.7733 @ 6 |
 | Megadepot | C22878 | 3.29 | 1 | 6 | | Cle-Line | | 3.29 @ 6 |
 | heavydutydepot.com | C22878 | 3.29 | 31 | 6 | | Cle-Line | | 3.29 @ 31 |
 | MRO Supply | 6124447 | 3.37 | 15 | 6 | | Cle-Line | | 3.37 @ 15 |
 | usmegastore.com | C22878 | 3.39 | 1 | 6 | | Cle-Line | | 3.39 @ 6 |
 | Zoro | G4939037 | 3.39 | 1 | 25 | | Cle-Line | 0.47 | 3.39 @ 6 |
 | simsupply.com | ZO-G4939037 | 9.99 | 1 | 17 | | Cle-Line | | 9.99 @ 6 |
