Cle-line C22917

mpnC22917
brandname: Cle-Line
manufacturername: Cle-Line

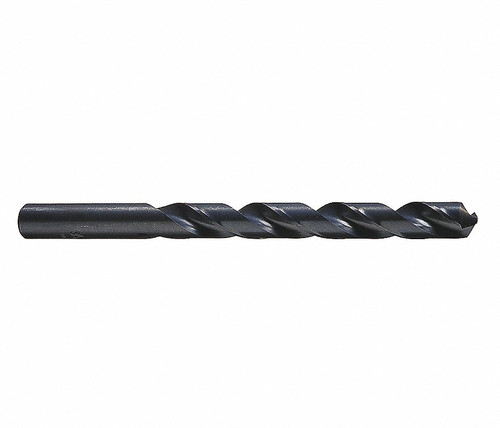

Cle-Line C22917 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 14.75 mm Drill Diameter

Cle-Line C22917 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 14.75 mm Drill Diameter

zoom

Brand: Cle-line
PartNumber: C22917
Model: C22917
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Alloy Steel, Carbon Ste.
Coolant Fed	Non-Coolant Through
Cutting Depth	5XD
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.5807
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.5807"
Diameter (Metric)	14.75mm
Drill Bit Dimension Type	Metric
Drill Bit Finish	Black Oxide
Drill Bit Grouping	Drill Bit
Drill Bit Point Angle	118 Degrees
Drill Bit Size	14.75 mm
Drill Construction	General Purpose
Drill Diameter Measurem.	Metric/Imperial
Drill Diameter Tolerance	+0.0000 in/-0.0012 in
Drill Length Class	Jobber Length
Drill Point Length	0.1745mm
Drill Size - Decimal In.	0.5807 in
Drill Size - Metric	14.75 mm
Drill Size System	Metric
Drill Style	Jobber Drill
Finish	Black Oxide
Flute Length	4.4882", 114.00mm, 114 .
Flute Length (Metric)	114.00mm
Flute Type	Right Spiral, Spiral
Hand of Cut	Right
Hand of Spiral	Right
Helix Angle	21 Degrees to 34 Degre.
Item	Jobber Length Drill Bit
List Number	1899
Material	HSS
Maximum Drilling Depth	3 23/64 in
Measurement System	Metric
Number of Flutes	2
Overall Length	169 mm, 6.6535", 169.00.
Overall Length (Metric)	169.00mm
Point Angle	118 deg, 118?
Point Style	Radial
Point Type	Radial
Series	1899
Shank Configuration	Straight
Shank Dia.	14.75 mm
Shank Length	2.1653", 55 mm
Shank Length (Metric)	55.00mm
Shank Size	0.5807", 14.75 mm Dia x.
Shank Size (Metric)	14.75mm
Shank Type	Straight
SKU	C22917
Standards	DIN 338
Style	1899
Surface Condition	Steam Oxide
Through Coolant (Yes/No)	No
Tool Size	14.75mm
UPC	6.97E+11

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Megadepot	C22917	15.23	1	In Stock		Cle-Line		15.23 @ 1
	heavydutydepot.com	C22917	15.23	7	In Stock		Cle-Line		15.23 @ 7
	Zoro	G4952431	17.25	1	In Stock	20	Cle-Line	0.37	17.25 @ 1
	Global Industrial	WBB2545127	18.0	1	In Stock		Cle-Line		18.0 @ 1
	usmegastore.com	C22917	18.12	1	In Stock		Cle-Line		18.12 @ 1
	MRO Supply	6124486	20.5	3	In Stock		Cle-Line		20.5 @ 3
	imsbolt.com	C22917	33.79	1	In Stock		CLE-LINE		33.79 @ 1
