Cle-line C22926

B00J9HB02M

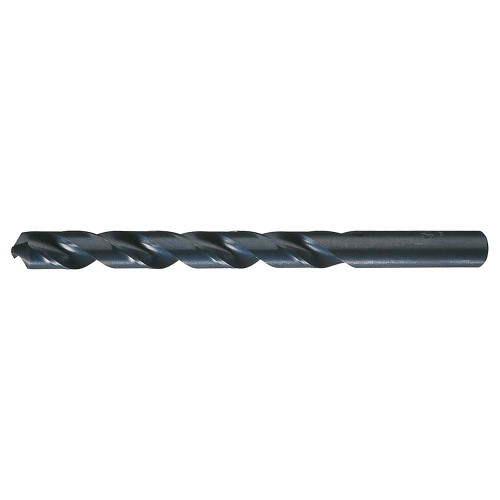

Cle-Line C22926 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 17.00 mm Drill Diameter

Cle-Line C22926 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 17.00 mm Drill Diameterzoom

Attributes

Key Value
Catalog PageN/A
Coolant FedNon-Coolant Through
Country of OriginUSA
Country of Origin (subj.United States
Cutting DirectionRight Hand
Decimal Equivalent0.6693
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Diameter0.6693"
Diameter (Metric)17.00mm
Drill Bit Dimension TypeMetric
Drill Bit FinishBlack Oxide
Drill Bit GroupingDrill Bit
Drill Bit Point Angle118 ?, 118 Degrees
Drill Bit Point TypeConventional Point
Drill Bit Size17.00 mm
Drill ConstructionGeneral Purpose
Drill Diameter Tolerance+0.0000 in /-0.0012 in
Drill Length ClassJobber Length
Drill Point Length0.2011mm
Drill Size SystemMetric
Drill StyleJobber Drill
Finish - MachiningBlack Oxide
Flute Length4.9213", 125.00 mm
Flute Length (Metric)125.00mm
Flute TypeSpiral
Hand of CutRight
Hand of SpiralRight
Helix Angle21 Degrees to 34 Degre.
ItemJobber Length Drill Bit
Item?50CA02
MaterialHSS
Material - MachiningHigh Speed Steel
Maximum Drilling Depth2-43/64 in, 2 43/64 in
Measurement SystemMetric
Mfr. Model?C22926
Number of Flutes2
Overall Length184.00 mm, 7.2441"
Overall Length (Metric)184.00mm
Point Angle118?
Point StyleRadial
Primary Material Applic.Aluminum; Brass; Bronze.
Primary Material Applic.K; N; P, K, N, P
Series1899
Shank ConfigurationStraight
Shank Dia.17 mm
Shank Length59 mm, 2.3228"
Shank Length (Metric)59.00mm
Shank Size0.6693"
Shank Size (Metric)17.00mm
Shank Type - MachiningStraight
SKUC22926
Spiral DirectionRight Hand
StandardsASME B94.11M
Surface ConditionSteam Oxide
Tool Size17.00mm
UNSPSC27112801
UPC6.97E+11

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG495231923.021In Stock26Cle-Line0.5423.02 @ 1
thumbzoomGlobal IndustrialWBB254526724.51In StockCle-Line24.5 @ 1
thumbzoomusmegastore.comC2292624.871In StockCle-Line24.87 @ 1
thumbzoomMegadepotC2292626.071In StockCle-Line26.07 @ 1
thumbzoomheavydutydepot.comC2292626.074In StockCle-Line26.07 @ 4
Grainger50CA0239.311In StockCLE-LINE39.31 @ 1
thumbzoomimsbolt.comC2292647.831In StockCLE-LINE47.83 @ 1
