- mpnC22927
- brandname: Cle-Line
- manufacturername: Cle-Line

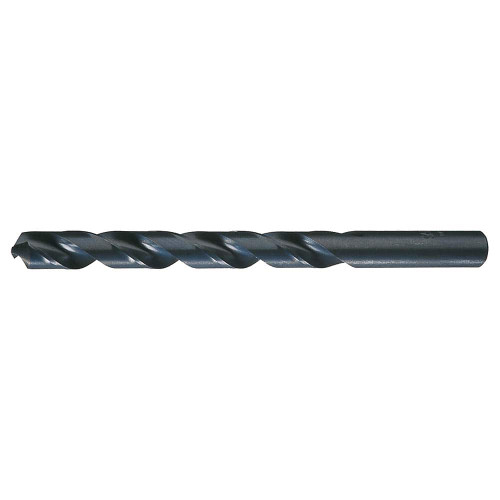

Cle-Line C22927 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 17.25 mm Drill Diameter
- Brand: Cle-line
- PartNumber: C22927
- Model: C22927
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.6791 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.6791" |
| Diameter (Metric) | 17.25mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit, Individual |
| Drill Bit Point Angle | 118 Degrees, 118 Degre. |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 17.25 mm |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in/-0.0012 in, . |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.204mm |
| Drill Size System | Metric |
| Drill Style | Jobber Drill |
| Finish - Machining | Black Oxide |
| Flute Length | 130.00mm, 130.00 mm, 5.. |
| Flute Length (Metric) | 130.00mm |
| Flute Type | Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Jobber Length Drill Bit |
| List Number | 1899 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 2 45/64 in, 3 53/64 in |
| Measurement System | Metric |
| Number of Flutes | 2 |
| Overall Length | 191.00mm, 7.5197", 191.. |
| Overall Length (Metric) | 191.00mm |
| Point Angle | 118? |
| Point Style | Radial |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | K, N, P |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 17.25 mm, 17.2 mm |
| Shank Length | 61 mm, 2.4016" |
| Shank Length (Metric) | 61.00mm |
| Shank Size | 0.6791" |
| Shank Size (Metric) | 17.25mm |
| Shank Type - Machining | Straight |
| SKU | C22927 |
| Spiral Direction | Right Hand |
| Standards | DIN 338, ASME B94.11M, . |
| Surface Condition | Steam Oxide |
| Tool Size | 17.25mm |
| UPC | 6.97E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G4952337 | 21.79 | 1 | In Stock | 10 | Cle-Line | 0.55 | 21.79 @ 1 |
 | Megadepot | C22927 | 21.83 | 1 | In Stock | | Cle-Line | | 21.83 @ 1 |
 | heavydutydepot.com | C22927 | 21.83 | 5 | In Stock | | Cle-Line | | 21.83 @ 5 |
 | Global Industrial | WBB2545284 | 23.75 | 1 | In Stock | | Cle-Line | | 23.75 @ 1 |
 | usmegastore.com | C22927 | 26.36 | 1 | In Stock | | Cle-Line | | 26.36 @ 1 |
| grainger.ca | GNFC22927 | 42.48142518 | 1 | In Stock | | CLE-LINE | 0.551 | 42.48142518 @ 1 |
 | imsbolt.com | C22927 | 48.51 | 1 | In Stock | | CLE-LINE | | 48.51 @ 1 |
