- mpnC23473
- brandname: Cle-Line
- manufacturername: Cle-Line

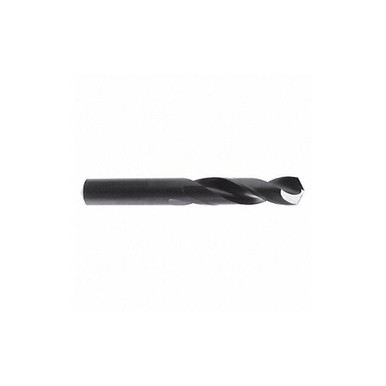

Screw Mach Drill, HSS, Blk Oxide, 17/64 in
- Brand: Cle-line
- PartNumber: C23473
- Model: C23473
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Application | For Alloy, Carbon And T. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Current Stock | 197 |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.2656 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.2656" |
| Diameter (Fraction) | 17/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 17/64 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.055 in |
| Drill Size - Decimal In. | 0.2656 in |
| Drill Size - Fraction | 17/64 in |
| Drill Size System | Fractional |
| Drill Style | Screw Machine Drill |
| Finish | Black Oxide |
| Flute Length | 1 7/16 in, 1-7/16 in, 1. |
| Flute Length (Metric) | 36.51mm |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Screw Machine Drill Bit |
| List Number | 1896 |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 7/16 in |
| Measurement System | Imperial |
| Mpn | C23473 |
| Number of Flutes | 2 |
| Overall Length | 2.6250", 2 5/8 in, 2-5/. |
| Overall Length (Metric) | 66.67mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split point, Split |
| Series | 1896 |
| Shank Configuration | Straight |
| Shank Dia. | 17/64 in |
| Shank Length | 1 3/16 in, 1.1875" |
| Shank Length (Metric) | 30.16mm |
| Shank Size | 17/64 in Dia x 1-3/16 i. |
| Shank Size (Metric) | 6.75mm |
| Shank Type | Straight |
| Sizes Included | 17/64" |
| SKU | ZO-G0294454 |
| Style | 1896 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | 17/64" |
| Type | General Purpose Heavy D. |
| UPC | 697334234739 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2544593 | 2.0 | 12 | 12 | | Cle-Line | | 2.0 @ 12 |
 | Megadepot | C23473 | 2.18 | 1 | 12 | | Cle-Line | | 2.18 @ 12 |
 | heavydutydepot.com | C23473 | 2.18 | 46 | 12 | | Cle-Line | | 2.18 @ 46 |
 | usmegastore.com | C23473 | 2.27 | 1 | 12 | | Cle-Line | | 2.27 @ 12 |
 | MRO Supply | 6124872 | 2.35 | 22 | 12 | | Cle-Line | | 2.35 @ 22 |
 | Zoro | G0294454 | 2.49 | 1 | 302 | | Cle-Line | 0.1 | 2.49 @ 12 |
 | Raptor Supplies | AE7YFE | 3.2738355 | 1 | 12 | | CLE-LINE | | 3.2738355 @ 12 |
 | sustainablesupply.com | C1465274 | 3.58 | 1 | 12 | | Cle-Line | 0.1 | 3.58 @ 12 |
 | simsupply.com | ZO-G0294454 | 8.92 | 1 | 197 | | Cle-Line | | 8.92 @ 12 |
| AmazonTP | B000LDF786 | 9.05 | 1 | 12 | 2 | Cle-Line | | 9.05 @ 12 |
