Cle-line C23638

mpnC23638
brandname: Cle-Line
manufacturername: Cle-Line

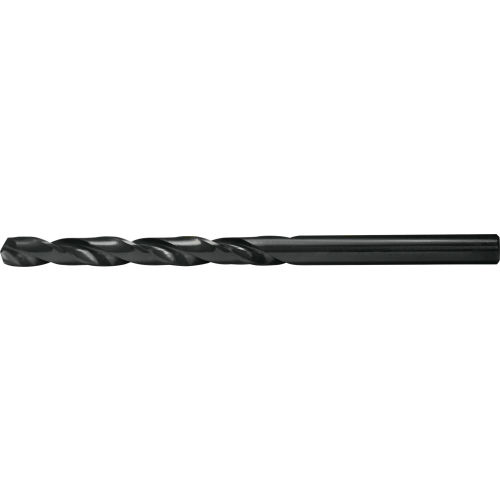

Cle-Line C23638 Aircraft Extension Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 135-Degree Split Point, 21/64" Drill Diameter (Pack of 6)

Cle-Line C23638 Aircraft Extension Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 135-Degree Split Point, 21/64" Drill Diameter (Pack of 6)

zoom

Brand: Cle-line
PartNumber: C23638
Model: C23638
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Angle Iron, Cast Iron, .
Coolant Fed	Non-Coolant Through
Cutting Depth	3-5/16 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.3281
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.3281"
Diameter (Fraction)	21/64"
Drill Bit Point Angle	135 Degrees
Drill Bit Size	21/64 in
Drill Construction	Heavy-Duty
Drill Diameter Tolerance	+0.0000 in /-0.0010 in
Drill Length Class	Extra Long
Drill Point Length	0.068 in
Drill Size - Decimal In.	0.3281 in
Drill Size - Fraction	21/64 in
Drill Size System	Fractional
Drill Style	Aircraft Extension Drill
Finish	Black Oxide/Steam Oxide
Flute Length	3 5/16 in, 3.3125", 3-5.
Flute Length (Metric)	84.14mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Item	Extra Long Drill Bit
Material	HSS
Material - Machining	High Speed Steel
Maximum Drilling Depth	1 5/16 in
Measurement System	Fractional Inch, Imperi.
Number of Flutes	2
Overall Length	6.0000", 6 in
Overall Length (Metric)	152.40mm
Point Angle	135 deg, 135?
Point Style	Split
Point Type	Split
Primary Material Applic.	P
Series	1803
Shank Configuration	Straight
Shank Dia.	21/64 in
Shank Length	2 11/16 in, 2.6875"
Shank Length (Metric)	68.26mm
Shank Size	21/64 in, 0.3281"
Shank Size (Metric)	8.33mm
Shank Type	Straight
Shank Type - Machining	Straight
Spiral Direction	Right Hand
Standards	ASME B94.11M
Style	1803
Surface Condition	Steam Oxide
Tool Size	21/64"
Type	Type B Extended Length

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Megadepot	C23638	9.35	1	6		Cle-Line		9.35 @ 6
	heavydutydepot.com	C23638	9.35	11	6		Cle-Line		9.35 @ 11
	usmegastore.com	C23638	10.99	1	6		Cle-Line		10.99 @ 6
	Zoro	G4941627	11.99	6	6	10	Cle-Line	0.04	11.99 @ 6
	MRO Supply	6124965	12.62	3	6		Cle-Line		12.62 @ 6
	Global Industrial	WBB2543354	61.5	1	6		Cle-Line		61.5 @ 6
	AmazonSC	B00J9FHB0Y	73.62	1	6		Cle-line		73.62 @ 6
