Dayton Audio RS100-4

B00JZTE00I

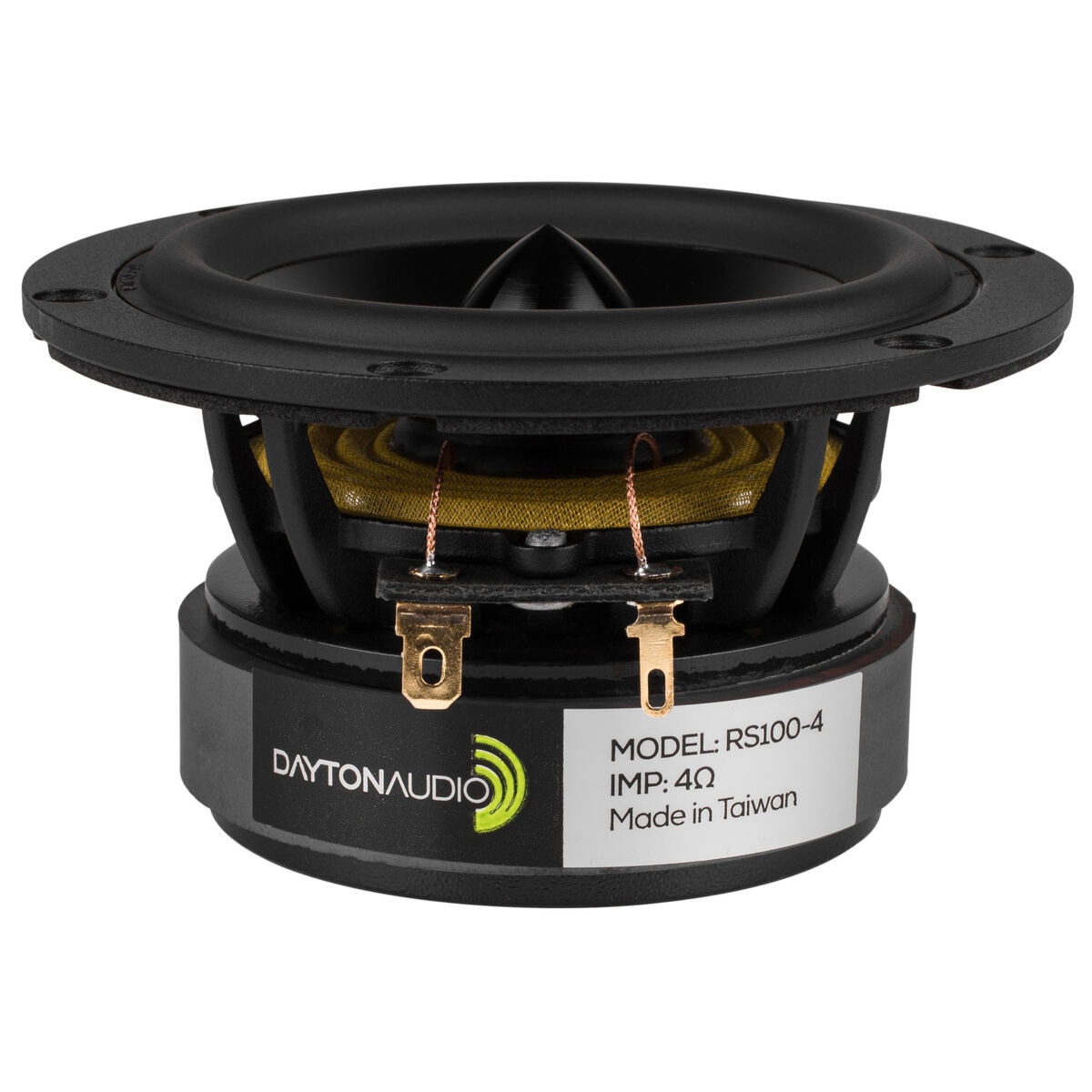

Dayton Audio RS100-4 4" Reference Full-Range Driver 4 Ohm

Dayton Audio RS100-4 4" Reference Full-Range Driver 4 Ohmzoom

Attributes

Key Value
# Mounting Holes6
Baffle Cutout Diameter3.06"
Basket / Frame MaterialCast Aluminum
BL Product (BL)3.18T?m
Bolt Circle Diameter3.54
BrandDayton Audio
Compliance Equivalent V.0.05ft?
Cone MaterialAluminum
DC Resistance (Re)3?
Depth1.8"
Diaphragm Mass Inc. Air.4.3g
Electromagnetic Q (Qes)0.66
Frequency Response80 to 20,000Hz
Impedance4?
Magnet MaterialFerrite
Maximum Linear Excursio.4mm
Mechanical Compliance o.0.83mm/N
Mechanical Q (Qms)2.55
ModelRS100-4
Nominal Diameter4"
Overall Outside Diameter3.86"
Part Number295-378
Power Handling (MAX)60 Watts
Power Handling (RMS)30 Watts
Resonant Frequency (Fs)84.8Hz
Sealed F3146Hz
Sealed Volume0.04ft?
Sensitivity87.5dB 2.83V/1m
Surface Area of Cone (S.35.3cm?
Surround MaterialRubber
Total Q (Qts)0.53
Unit of MeasureEach
UPC844632068133
Vented F362Hz
Vented Volume0.1ft?
Voice Coil Diameter1"
Voice Coil FormerAluminum
Voice Coil Inductance (.0.28mH
Voice Coil Wire MaterialCopper
Weight1.4
