Fasco D1141

B00420KAMW

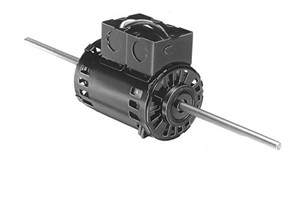

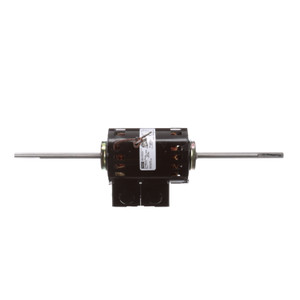

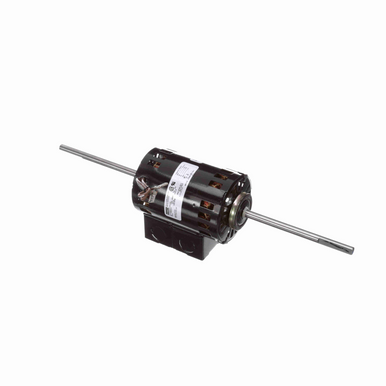

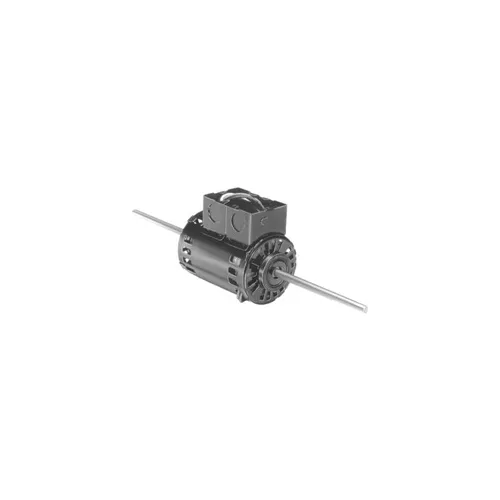

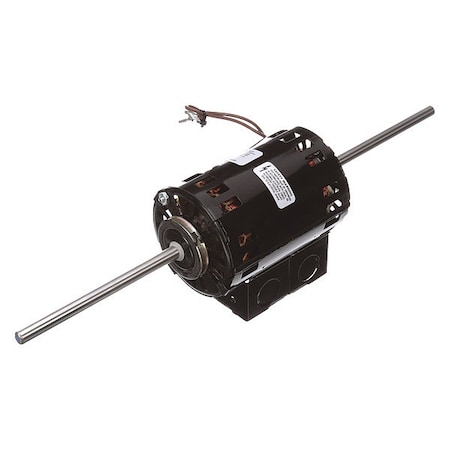

Fasco Motors & Blowers D1141 MOTOR

Fasco Motors & Blowers D1141 MOTORzoom

Attributes

Key Value
Ambient temperature (?C)40
Amps1.3/1.1/0.9, 1.70/1.30/.
Batteries Included?No
Batteries Required?No
BearingsSleeve
Best Sellers Rank#1,497,773 in Tools & H.
Body Dia.3.3"
BrandFasco
C-Dimension16.05 (in.)
Capacitor4MFD/370VAC
Catalog Numberd1141
CEN
ColorBlack
Country of originMexico
Cross Reference879-382563B-00
CSAY
Current1.70/1.30/1.00 A
Current Stock22
Customer Reviews5.0 out of 5 stars1 rat.
Date First AvailableJuly 5, 2012
DE Bearing TypeSleeve
DEM ReferenceFA#D1141#
Drive end bearingSleeve
DutyAir Over
Electrical typePermanent Split Capacit.
Electrical TypePermanent Split Capacit.
EnclosureOpen Air Over
Enclosure TypeOAO (Open Air Over), Op.
Frame3.3", 3.3
Frame length4.51 in
Frame materialSteel
Frame MaterialSteel
Frame Type3.3 (in. diameter)
Frequency60, 60 Hz
HP1/35, 1/25, 1/15, 1/25,.
Hz60
Insulation classB
Insulation ClassB
International ShippingNo
IP Code-
Is Discontinued By Manu.No
ItemMotor
Item model numberd1141
Item Package Quantity1
Item Weight10 pounds
KVA Code-
Lead TimeExpected to ship in 1-2.
Length Less Shaft10 7/16 in
ManufacturerFasco
Manufacturers Warranty .1 yr.
Max Ambient40?C
Motor ApplicationOEM Replacement
Motor BearingsSleeve
Motor DesignPermanent Split Capacit.
Motor Diameter3.3"
Motor Enclosure DesignOpen Air-Over
Motor Mounting TypeResilient Rings
Motor Orientation-
Motor Shaft RotationCounterclockwise Lead E.
Motor Shell Length4-3/4"
Motor Sub ApplicationCondenser Fan Motor
Motor Thermal ProtectionAutomatic
MountingResilient Rings, Stud
Mounting TypeResilient Rings
Mpnd1141
Nameplate RPM1000 rpm
No. of Speeds3
Number of Shafts2
Number of speeds3
Number of Speeds3
ODE Bearing TypeSleeve
OEM Replacement BrandMcQuay
Opp drive end bearingSleeve
Output HP1/15-1/25-1/35 HP
Output KW0.05 kW
Overall Length16.05", 16.05 in
Package Dimensions18.1 x 5 x 3.4 inches
Packaged height3.31 in
Packaged length17 in
Packaged width4.5 in
Part NumberNa
Phase1
Poles6
Product CategoryHVAC/R Motors > HVAC/R.
Product TypePSC (Permanent Split Ca.
Product with faster shi.true
RotationCounterclockwise Lead E.
RPM1000
RPM (Nameplate)1000
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
RPM Range0-1000
Service Factor1
Service factor1
Shaft Dia.3/8"
Shaft Diameter3/8", 3/8 (in.), 0.375 .
Shaft Extension5.62 (in.)
Shaft extension5.62 in
Shaft Length5.62", 5-5/8" x 5-5/8"
Shaft typeFlat
Shaft TypeFlat
Ship Weight7 lbs.
Shippingundefined (Fixed Shippi.
SKUZO-G4334456
Speed1000 rpm
Speeds3
Starting methodAcross the line
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
Thermal protectionThermally Protected
Type of Overload Protec.Thermally Protected
ULRecognized
UPC818508022079
Voltage?115 Volts, 115 V, 115V
Volts115

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG4334456227.99135Fasco6.6227.99 @ 1
thumbzoomcshincorporated.comD1141236.691In StockFasco4.0236.69 @ 1
AmazonTPB078RWW293237.441In Stock5FASCO237.44 @ 1
thumbzoomktool.netD1141257.691In StockFasco257.69 @ 1
thumbzoomhomeessentialsdirect.comD1141289.821In StockFasco10.0289.82 @ 1
thumbzoomDreisilkerFA-RBC-D1141294.851In StockFasco294.85 @ 1
thumbzoomwaterpumpsnow.comD1141298.11In StockFasco2.0298.1 @ 1
thumbzoommidwestapplianceparts.comD1141-FA-P300.121In StockFasco300.12 @ 1
thumbzoomsimsupply.comZO-G4334456300.68122Fasco300.68 @ 1
thumbzoomfurnacepartsource.comD1141301.8512Fasco301.85 @ 1
thumbzoomindustrialstores.comD1141306.6812Fasco306.68 @ 1
thumbzoomVoomi SupplyD1141315.691In StockFasco315.69 @ 1
thumbzoomemotorpro.comD1141315.81In StockFasco7.0315.8 @ 1
thumbzoomGlobal IndustrialWBB186933319.951In StockFasco319.95 @ 1
thumbzoomNational Supply NetworkB186933341.521In StockFASCO341.52 @ 1
thumbzoomMRO Supply5762891386.671In StockFasco386.67 @ 1
uri.comD1141643.941In StockFasco6.0643.94 @ 1
