Fasco D1243

B0099AY1CA

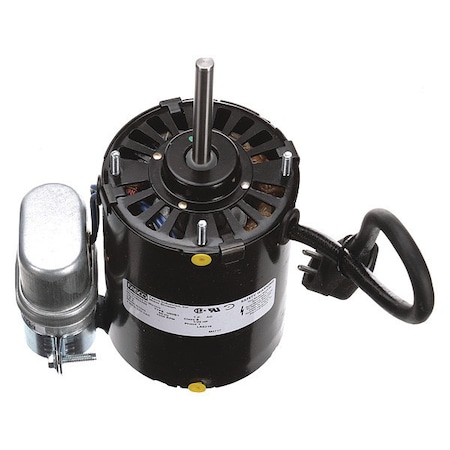

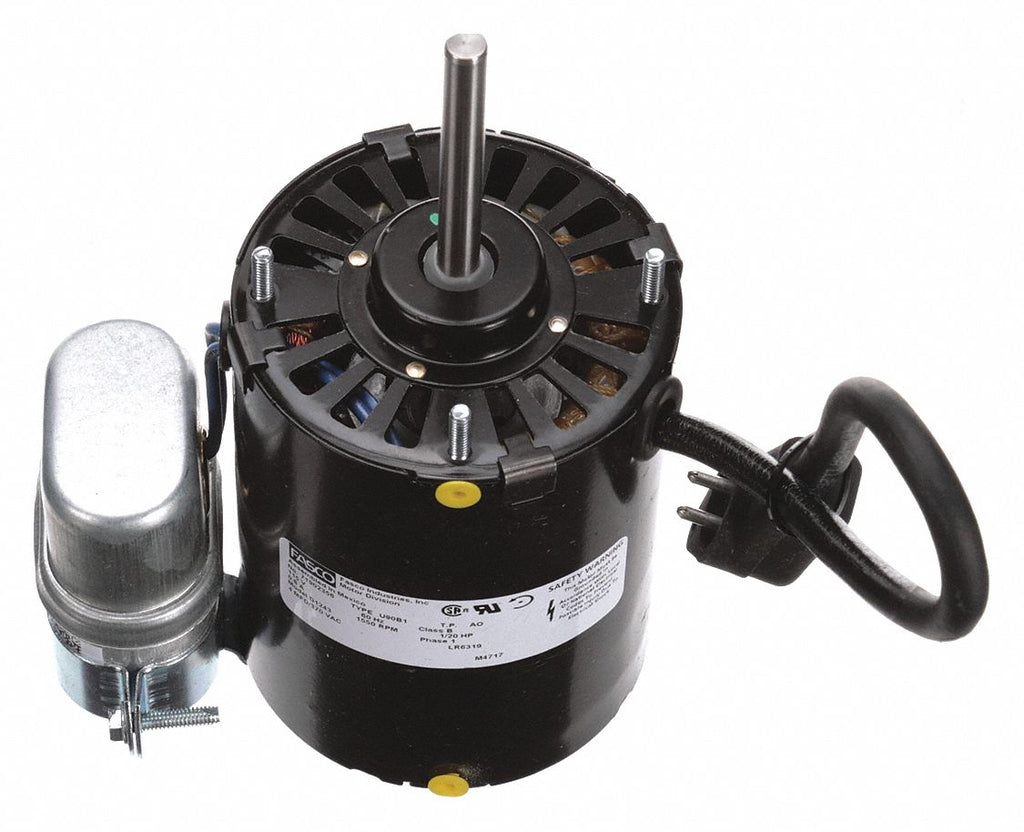

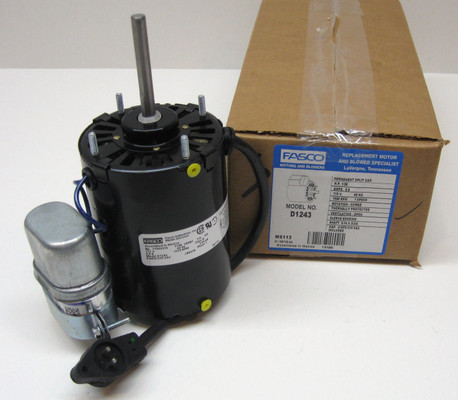

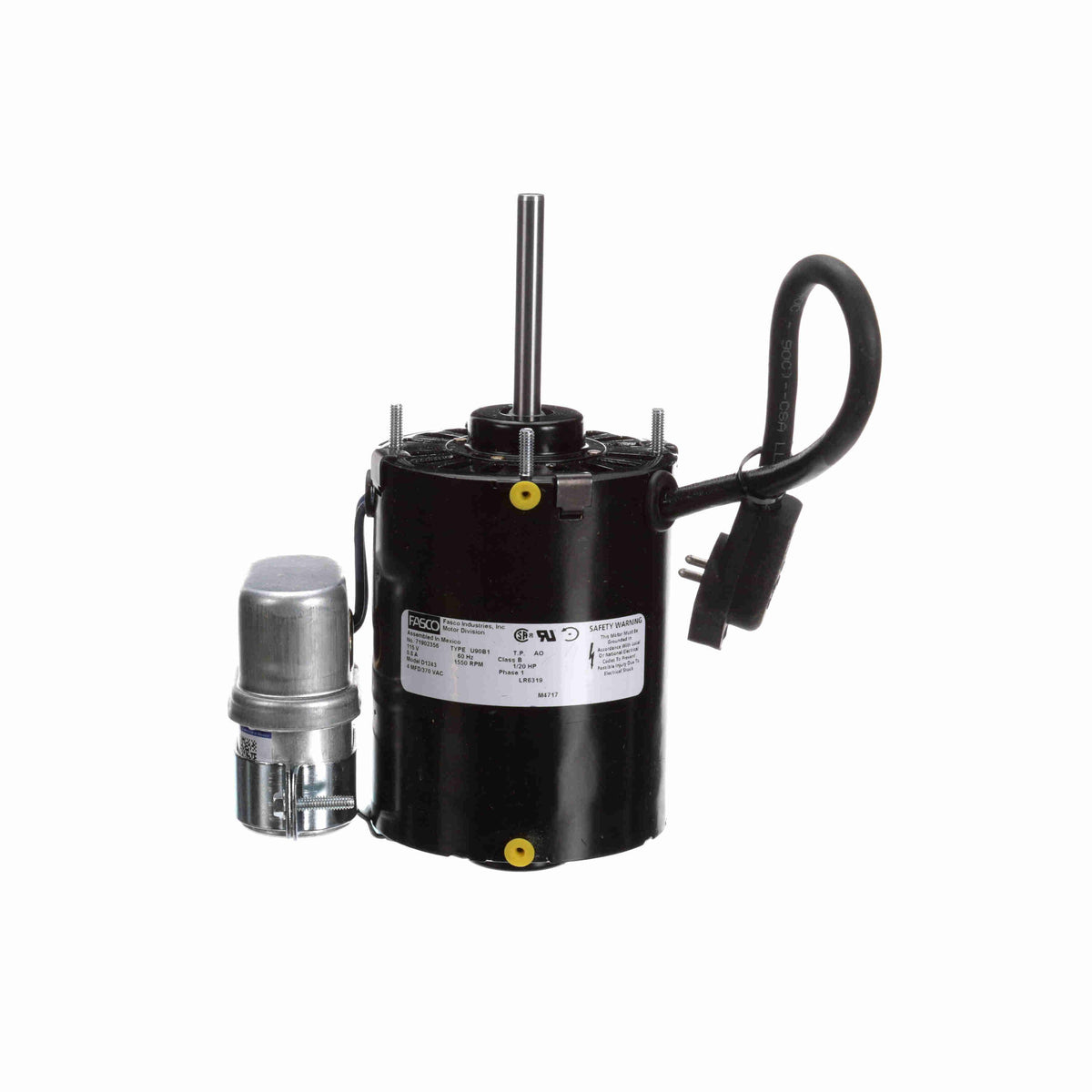

Fasco D1243 3.3" Frame Open Ventilated Permanent Split Capacitor Evaporator Coil and Refrigeration Fan Motor with?Sleeve Bearing, 1/20HP, 1550rpm, 115V, 60Hz, 0.8 amps

Fasco D1243 3.3" Frame Open Ventilated Permanent Split Capacitor Evaporator Coil and Refrigeration Fan Motor with?Sleeve Bearing, 1/20HP, 1550rpm, 115V, 60Hz, 0.8 ampszoom

Attributes

Key Value
Ambient temperature (?C)40
Amps0.8, 0.80
BearingsSleeve
Body Dia.3.3"
Bolt Circle Dia.2-13/16"
BrandFasco
C-Dimension7.51 (in.)
Capacitor4MFD/370VAC (Included)
Catalog NumberD1243
CEN
ColorBlack
Country of originMexico
Cross Reference501899/7164-1243/7164-1.
CSAY
Current0.80 A
Current Stock3
DE Bearing TypeSleeve
DEM ReferenceFA#D1243
Drive end bearingSleeve
DutyAir Over
Electrical typePermanent Split Capacit.
Electrical TypePermanent Split Capacit.
EnclosureOpen Air Over
Enclosure TypeOAO (Open Air Over), Op.
Frame3.3", 3.3
Frame length4.06 in
Frame MaterialSteel
Frame materialSteel
Frame Type3.3 (in. diameter)
Frequency60, 60 Hz
HP1/20 HP, 1/20
Insulation classB
Insulation ClassB
International ShippingNo
IP Code-
ItemMotor
KVA Code-
Lead TimeExpected to ship in 1-2.
Length Less Shaft4 1/4 in
Manufacturers Warranty .1 yr.
Max Ambient40?C
Motor ApplicationOEM Replacement
Motor DesignPermanent Split Capacit.
Motor Diameter3.3"
Motor Enclosure DesignOpen Air-Over
Motor Mounting TypeExtended Studs
Motor Orientation-
Motor Shaft RotationCounterclockwise Shaft .
Motor Shell Length4-1/8"
Motor Sub ApplicationCondenser Fan
Motor Thermal ProtectionAutomatic
MountingExtended Studs
Mounting TypeExtended Studs
MpnD1243
Nameplate RPM1550 rpm
No. of Speeds1
Number of Shafts1
Number of speeds1
Number of Speeds1
ODE Bearing TypeSleeve
OEM Replacement BrandKeeprite
Opp drive end bearingSleeve
Output HP1/20 HP
Output KW0.04 kW
Overall Length7.51", 7.51 in
Packaged height3.31 in
Packaged length12 in
Packaged width5.13 in
Phase1
Poles4
Product CategoryHVAC/R Motors > HVAC/R.
Product TypePSC (Permanent Split Ca.
RotationCCW Shaft End, Counterc.
RPM1550
RPM (Nameplate)1550
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
RPM Range1501-1600
Service Factor1
Service factor1
Shaft Dia.0.313"
Shaft Diameter5/16", 0.313 in, 5/16 (.
Shaft Extension2.82 (in.)
Shaft extension2.82 in
Shaft Length2.82", 2-3/4"
Shaft typeFlat
Shaft TypeFlat
Ship Weight5 lbs.
SKUZO-G4334130
Speed1550 rpm
Speeds1
Starting methodAcross the line
Stud Size#8-32
SubCategoryMotors/Ac Motors
Thermal protectionThermally Protected
Type of Overload Protec.Thermally Protected
ULRecognized
UPC815585028420
Voltage115 V
Volts115

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcshincorporated.comD1243152.151In StockFasco4.0152.15 @ 1
thumbzoomZoroG4334130159.9911Fasco4.68159.99 @ 1
thumbzoomktool.netD1243165.651In StockFasco165.65 @ 1
AmazonSCB0099AY1CA177.321In StockFasco177.32 @ 1
thumbzoommidwestapplianceparts.comD1243-FA-P177.411Fasco177.4 @ 1
thumbzoommccombssupply.comD1243177.8911Fasco177.89 @ 1
thumbzoomDreisilkerFA-RBC-D1243186.721In StockFasco186.72 @ 1
thumbzoomsimsupply.comZO-G4334130189.4413Fasco189.44 @ 1
thumbzoomfurnacepartsource.comD1243191.1611Fasco191.16 @ 1
thumbzoomwaterpumpsnow.comD1243193.61In StockFasco2.0193.6 @ 1
thumbzoomVoomi SupplyD1243198.121In StockFasco198.12 @ 1
AmazonTPB007VJZSMS200.391In Stock5Fasco200.39 @ 1
thumbzoomemotorpro.comD1243203.021In StockFasco5.0203.02 @ 1
thumbzoomsustainablesupply.comC2780522216.061In StockFasco4.68216.06 @ 1
thumbzoomMRO Supply5762930248.571In StockFasco248.57 @ 1
