Leeson 171845.60

B078XNL1YR

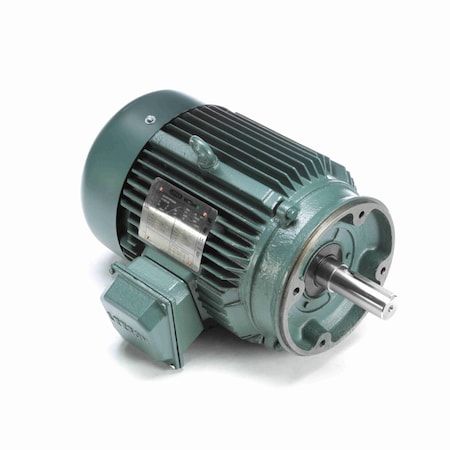

Leeson 3HP 1800RPM.182TZ.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID.GRAIN DRYER (171845.60)

Leeson 3HP 1800RPM.182TZ.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID.GRAIN DRYER (171845.60)zoom

Attributes

Key Value
Amperage Rating8.3 to 7.8/3.9 A
Bearing TypeBall
CategoryElectric Motor
CompositionCast Iron
Description:..3HP..1800RPM.182TZ.TE.
Dimensions17.1 in L x 264 mm H
Efficiency %89.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Family SeriesLeeson Motors
Frame182TZ
Frequency50 Hz
Frequency Rating60/50 Hz
Gross Weight0 lbs
Horsepower3 hp
HP3
Insulation ClassClass F
Item ConditionFACTORY NEW
Item Number171845.60
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number171845.60
MaterialCast Iron
MFG Part #:171845.60
mountingRigid Base
Mounting TypeFoot Mount, Rigid Base
NEMA Frame182TZ
Net Weight0 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Speeds1
Phase3, 3 ph
RotationReversible
RPM1,770 RPM, 1800
Service Factor1.15
Shaft Size1.125 in Dia x 3.755 in.
Speed1770 rpm
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC:691720053607
Voltage (AC)208 VAC, 230 VAC, 460 V.
Volts208/230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
kscdirect.comLEE 171845.60351.181In StockLEESON ELECTRIC CORPORATION351.18 @ 1
AmazonTPB078XNL1YR815.21In Stock5Leeson815.2 @ 1
thumbzoomapexindustrialautomation.com171845.60856.7315Leeson856.73 @ 1
thumbzoomGalco171845.60-LEES994.21In StockLeeson994.2 @ 1
thumbzoomZoroG24973421009.991In StockLeeson1009.99 @ 1
thumbzoomDealers Electric171845.601230.2214Leeson113.01230.22 @ 1
thumbzoomWalker Industrial171845-601282.51In Stock17Leeson1282.5 @ 1
