Littelfuse L60030C-1CDINR

mpnL60030C-1CDINR
brandname: LITTELFUSE
manufacturername: LITTELFUSE

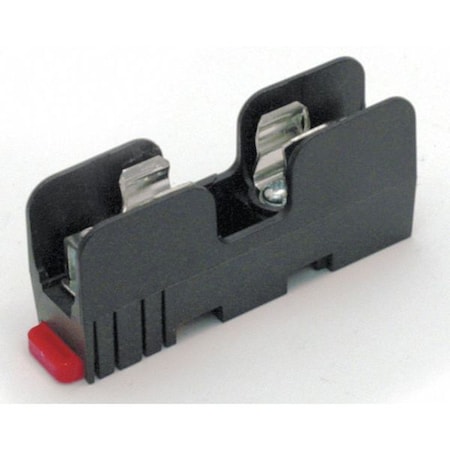

Littelfuse L60030C-1CDINR Fuse Block T67412

Brand: Littelfuse
PartNumber: L60030C-1CDINR
PackageQuantity: 1
Manufacturer: Littelfuse
Label: Littelfuse

Attributes

Key	Value
Additional Information	Poles: 1\|Mounting Type:.
Amp Range of Fuse Block.	0 to 30A
Amperage Rating	30, 30 A
Approvals	CSA, UL, UR
Body material	Thermoplastic
Category	Circuit Protection
Class	CC
Composition	Thermoplastic
Connection type	Box Lug
Connection Type	Box Lug
Connector Type	Box Lug
Contact Finish	Tin
Contact Material	Copper Alloy
Country of Origin (subj.	China
Current rating	30A
Current Rating (Amps)	30 A
Depth (in)	1.4
Description	FUSE BLOK CART 600V 30A.
Description:	CLASS CC FUSE BLOCK WIT.
Detailed Description	Fuse Block 30 A 600V 1 .
Digi-Key Part Number	L60030C1CDINR-ND
Dimensions	3.345 in L x 0.75 in W .
Enclosed	No
Family Series	Littelfuse Fuseblocks &.
Features	Space Saver with Cover
Flammability rating	UL94V-0
For Fuse Series	CCMR, KLDR, KLKR
For Fuse Size	1 1/2 in L x 13/32 in d.
For Use With/Related Pr.	5AG, 13/32" x 1-1/2" (M.
Fuse Block Design	Open
Fuse Block or Fuse Hold.	Fuse Block
Fuse Block or Holder AC.	600VAC
Fuse Block or Holder DC.	600VDC
Fuse Class	CC
Fuse Diameter	13/32, 13/32 in
Fuse Holder Code	CC
Fuse Length	1-1/2, 1-1/2 in
Fuse Size	0.394" Dia x 1.496" L (.
Fuse Type	Industrial, Cartridge
Fuse UL Class	CC
Fuseholder Type	Block
Fuses application	cylindrical fuses
Gross Weight	0.1 lbs
Height	1.40"
Indicating / Nonindicat.	Nonindicating
Item	Fuse Block
Item Number	L60030C-1CDINR
Length	3.35"
Manufacturer	Littelfuse Inc., Littel.
Manufacturer Part Number	L60030C1CDINR
Manufacturer Product Nu.	L60030C1CDINR
Manufacturer Standard L.	18 Weeks
Material	Thermoplastic
Max Current	30 A
MFG Part #:	L60030C-1CDINR
Mfr	Littelfuse Inc.
Mounting	for DIN rail mounting
Mounting Style	DIN Rail
Mounting type	DIN Rail
Mounting Type	DIN Rail, Panel Mount, .
Net Weight	0.1 lbs
Number of Circuits	1
Number of poles	1
Number of Poles	1
Orientation	-
Package	Box
Poles	1
Product Series	L600C-DINR
Product Status	Active
Rated voltage	600V
Reinforced	No
RoHS	No
Series	L600C, L600C-DINR, L600
Standard Pack:	Order QTY must be in mu.
Standards	California Proposition .
Suitable For Use With	CCMR, KLDR and KLKR Ser.
Supplier:	Littelfuse
Temperature Rating	125 deg C
Temperature Rating (Deg.	125
Termination Style	Box Lug
Touch Safe	No
Trip Indicator	No
Type	Fuse Block
Type of fuse accessories	fuse holder
UPC:	079458161991
Voltage	600V, 600 V
Voltage Rating	600, 600 VAC/VDC
Water Resistant	No
Width	0.75"
Wire Size	14 to 6 AWG, 14 to 6

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
TTI	L60030C1CDINR	11.45	1	1		Littelfuse		11.45 @ 1
Zoro	G3742051	12.49	1	In Stock	12	Littelfuse		12.49 @ 1
standardelectricsupply.com	2322658	14.65	1	In Stock		Littelfuse		14.65 @ 1
Galco	L60030C-1CDINR-LF	19.48	1	In Stock		Littelfuse	0.1	19.48 @ 1
Lighting Supply	L60030C1CDINR	19.53	1	In Stock		Littelfuse		19.53 @ 1
Newark	90T5891	20.29	1	In Stock		LITTELFUSE		20.29 @ 1
kscdirect.com	LF L60030C-1CDINR	25.29	1	In Stock		LITTELFUSE		25.29 @ 1
TME	L60030C1CDINR	25.99	1	In Stock		LITTELFUSE		25.99 @ 1
cbtcompany.com	L60030C-1CDINR	28.18	1	In Stock		Littelfuse		28.18 @ 1
Digi-Key	2670364	28.488	1	In Stock		Littelfuse Inc.		28.488 @ 1
gordonelectricsupply.com	L60030C-1CDINR	29.49	1	In Stock		LITTELFUSE		29.49 @ 1
Walker Industrial	L60030C-1CDINR	30.5	1	In Stock	17	Littelfuse		30.5 @ 1
Guardian	LIT-L60030C1CDINR	31.76	1	In Stock		LITTELFUSE		31.76 @ 1
Platt.com	0134638	36.24	1	In Stock		Littelfuse		36.24 @ 1
