Martin C20140

mpnC20140
brandname: Martin
manufacturername: Martin

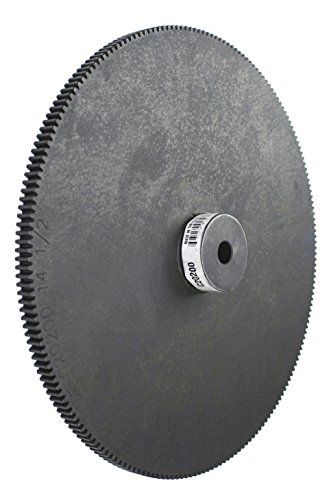

Martin C20140 Spur Gear, 14.5? Pressure Angle, Cast Iron, Inch, 20 Pitch, 1/2" Bore, 7.1" OD, 0.375" Face Width, 140 Teeth

Martin C20140 Spur Gear, 14.5? Pressure Angle, Cast Iron, Inch, 20 Pitch, 1/2" Bore, 7.1" OD, 0.375" Face Width, 140 Teeth

zoom

Brand: Martin
PartNumber: C20140
PackageQuantity: 1
Binding: Misc.
Manufacturer: Martin
Label: Martin

Attributes

Key	Value
Bore Diameter	0.5 in ; 12.7 mm
bore diameter:	1/2 to 1 in
Bore Type	Reboreable
bore type:	Rough Stock
Class	6
Diametral Pitch	20
diametral pitch:	20
External Length	0.5" (12.7mm)
Face Width (In.)	0.375
face width:	3/8 in
gear construction:	Webbed
Gear Type	B3
Hub Dia. (In.)	1.7345
hub diameter:	1-3/4 in
Hub Outside Diameter	1.7345" (44.1mm)
Hub Projection (In.)	0.5
hub projection:	1/2 in
Hub Style	B
hub type:	Hub w/ No Screw
Length through Bore	0.875
Length Through Bore	0.875" (22.2mm)
Material	Cast Iron
material:	Cast Iron
Max. Bore	1
Maximum Bore Diameter	1" (25.4mm)
Min. Bore	0.5
Number of Teeth	140
Number Of Teeth	140
number of teeth:	140
Outer Diameter	7.1" (180.3mm)
Outside Dia	7.100"
Outside Dia. (In.)	7.1
outside diameter:	7.1 in
overall width:	7/8 in
Package Quantity	1
Pitch	20
Pitch Dia. (In.)	7
Pitch Diameter	7" (177.8mm)
pitch diameter:	7 in
Pressure Angle	14.5 Degrees PA
Pressure Angle (Deg.)	14.5
pressure angle:	14.5
standards met:	ANSI Standard B15.1
Storage Height	0.875
Storage Length	7.1
Storage Width	7.1
Style	B
UPC Code	697950058399
Weight	2 lbs. (0.9 kg), 2
Width	0 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	industrialzone.com	C20140	119.43	2	In Stock		Martin	1.0	119.43 @ 2
	motionindustries.com	00369848	131.02	1	In Stock		Martin		131.02 @ 1
	us.rs-online.com	72332437	133.92	1	In Stock		Martin Sprocket & Gear	2.0	133.92 @ 1
	MRO Supply	250783	140.69	1	In Stock		Martin Sprocket		140.69 @ 1
	apexindustrialautomation.com	C20140	152.93	1	20		Martin Sprocket		152.93 @ 1
	Purvis	C20140	175.16	1	In Stock		Martin		175.16 @ 1
	Zoro	G3322080	179.99	1	In Stock		Martin Sprocket & Gear	2.0	179.99 @ 1
