Martin Sprocket C20160

mpnC20160
brandname: Martin Sprocket
manufacturername: Martin Sprocket

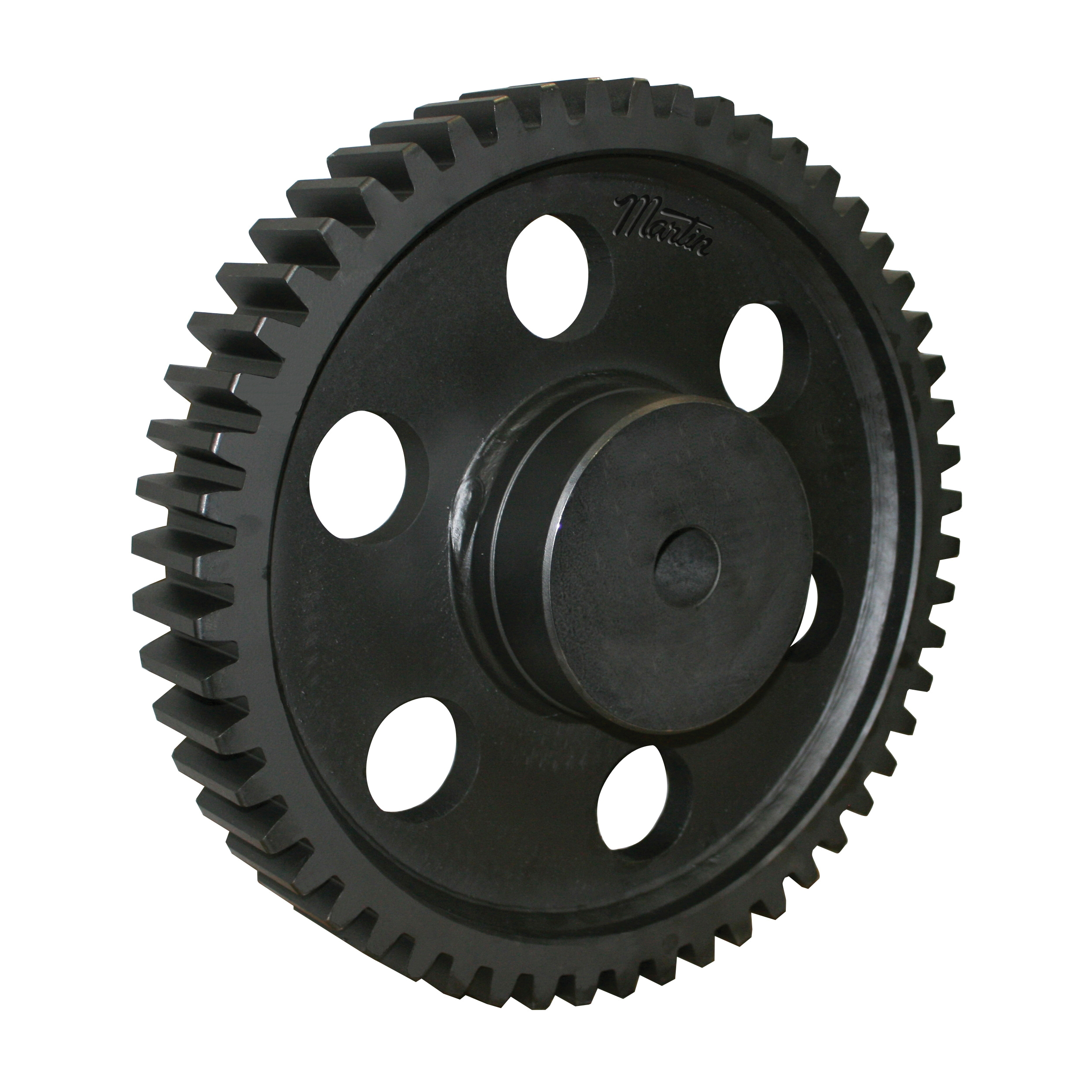

Martin Sprocket C20160 GEAR SPUR 14 1/2 DEG CAST

Martin Sprocket C20160 GEAR SPUR 14 1/2 DEG CAST

zoom

Brand: Martin Sprocket
PartNumber: C20160

Attributes

Key	Value
Bore Diameter	0.5 in ; 12.7 mm
Bore Type	Reboreable
Class	6
Diametral Pitch	20
External Length	0.625" (15.9mm)
Face Width (In.)	0.375
Gear Type	B2
Hub Dia. (In.)	1.7345
Hub Outside Diameter	1.7345" (44.1mm)
Hub Projection (In.)	0.625
Hub Style	B
Length through Bore	1
Length Through Bore	1" (25.4mm)
Material	Cast Iron
Max. Bore	1
Maximum Bore Diameter	1" (25.4mm)
Min. Bore	0.5
Number of Teeth	160
Number Of Teeth	160
Outer Diameter	8.1" (205.7mm)
Outside Dia	8.100"
Outside Dia. (In.)	8.1
Package Quantity	1
Pitch	20
Pitch Dia. (In.)	8
Pitch Diameter	8" (203.2mm)
Pressure Angle	14.5 Degrees PA
Pressure Angle (Deg.)	14.5
Storage Height	1
Storage Length	8.1
Storage Width	8.1
Style	B
UPC Code	697950058436
Weight	2.34, 2.34 lbs. (1.1 kg)
Width	0 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	industrialzone.com	C20160	140.2	2	In Stock		Martin	1.0	140.2 @ 2
	cbtcompany.com	C20160	152.36	1	In Stock		Martin Sprocket & Gear		152.36 @ 1
	us.rs-online.com	72332438	157.2	1	In Stock		Martin Sprocket & Gear	2.34	157.2 @ 1
	MRO Supply	250786	165.12	1	In Stock		Martin Sprocket		165.12 @ 1
	Zoro	G3304212	203.99	1	In Stock		Martin Sprocket & Gear	2.34	203.99 @ 1
	Purvis	C20160	205.58	1	In Stock		Martin		205.58 @ 1
