Woodhead / Molex 43045-0616

B09C12HTGD

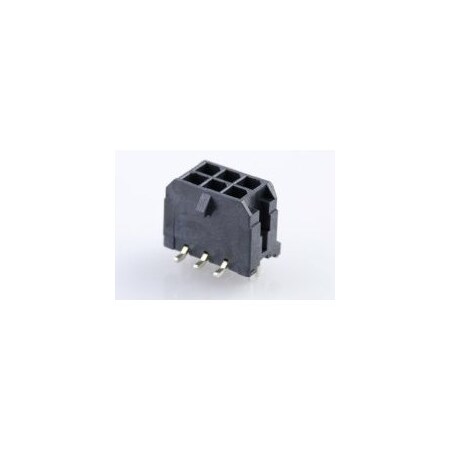

43045-0616,Conn Wire to Board HDR 6 POS 3mm Solder ST Top Entry SMD T/R (1800 Items)

43045-0616,Conn Wire to Board HDR 6 POS 3mm Solder ST Top Entry SMD T/R (1800 Items)zoom

Attributes

Key Value
Alternate Mfr Part Numb.6701945
ApplicationsAutomotive, General Pur.
Base Product Number043045
CategoryConnectors, Interconnec.
ColorBlack
Connector TypeHeader
Contact FinishGold Plated
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Mating-
Contact Length - Post-
Contact MaterialBrass
Contact Plating Thickne.0.381 ?m
Contact ShapeSquare
Contact TypeMale Pin
Current Rating8.5 A
Current Rating (Amps)8A
DescriptionCONN HEADER SMD 6POS 3MM
Detailed DescriptionConnector Header Surfac.
Digi-Key Part NumberWM6689TR-ND - Tape & Re.
Family NameMicro-Fit 3.0
Fastening TypeLocking Ramp
FeaturesGlow-Wire Capable, Boar.
Flammability RatingUL 94V-0
Hole Center to Center3 mm
Ingress Protection-
Insulation ColorBlack
Insulation Height0.390" (9.91mm)
Insulation MaterialLiquid Crystal Polymer .
ManufacturerMOLEX
Manufacturer Product Nu.0430450616
Manufacturer Standard L.17 Weeks
Mated Stacking Heights-
MaterialHigh Temperature Thermo.
Material Flammability R.UL94 V-0
Max. Temp.260?C
Max. Voltage600V
MfrMOLEX
Mounting TypeSurface Mount
Number of Circuits6
Number of Contacts6
Number of Positions6
Number of Positions Loa.All
Number of Rows2
Operating Temperature-40?C ~ 105?C
OrientationVertical
Overall Contact Length-
PackageTape & Reel (TR)
Package Quantity1
Pitch3.00 mm (0.118")
Pitch - Mating0.118" (3.00mm)
Plating MaterialGold
Primary TypeSoft Shell
Product StatusActive
Row Spacing - Mating0.118" (3.00mm)
SeriesMicro-Fit 3.0 43045, 43.
ShroudingShrouded - 4 Wall
Special FeaturesLow-Halogen
StandardsCSA Certified; UL E29179
StyleBoard to Cable/Wire
Terminal FinishTin Plated
Terminal TypeSurface Mount
TerminationSolder, Surface Mount
TypeVertical Header
Voltage Rating600V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark99AC71251.3611800MOLEX1.36 @ 1800
TMEMX-43045-06161.5121800MOLEX1.51 @ 1800
WaldomMOLEX 43045-06161.618002800MOLEX1.6 @ 1800
Onlinecomponents.com43045-06161.6713600MOLEX / WALDOM1.67 @ 1800
us.rs-online.com703734631.8311800Molex Incorporated1.83 @ 1800
Power and Signal Group04304506161.852818001800Molex1.8528 @ 1800
jensentools.com101892912.1314600Molex2.13 @ 1800
thumbzoomDigi-Key30447992.2046611800Molex2.12864 @ 2000
thumbzoomRadwell43045-06165.018001800MOLEX5.0 @ 1800
thumbzoomZoroG4004157534842.011800Molex4842.0 @ 1800
