ON Semiconductor MC74VHC00DTG

mpnMC74VHC00DTG
brandname: ON Semiconductor
manufacturername: ON Semiconductor

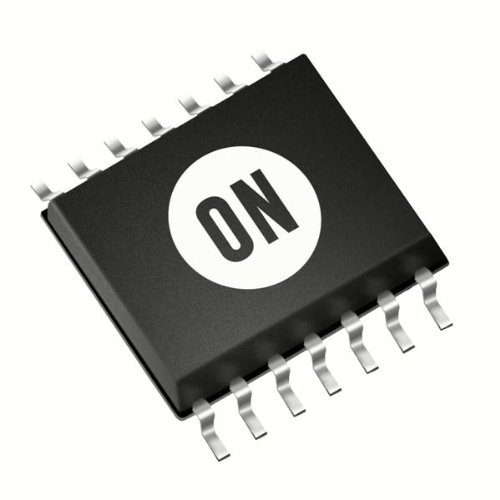

MC74VHC00DTG

MC74VHC00DTG

zoom

Brand: ON Semiconductor
PartNumber: MC74VHC00DTG
Model: MC74VHC00DTG
Size: 1 Piece
PackageQuantity: 1
Manufacturer: ON Semiconductor
Label: ON Semiconductor

Attributes

Key	Value
Alternate Part No.	863-MC74VHC00DTG
Base Product Number	MC74VHC00
Brand	ON Semiconductor
Case	TSSOP14
Category	Integrated Circuits (IC.
Current - Output High, .	8mA, 8mA
Current - Quiescent (Ma.	2 ?A
Features	-
High Level Output Curre.	- 8 mA
Kind of gate	NAND
Kind of package	tube
Logic Family	74VHC
Logic Level - High	1.5V
Logic Level - Low	0.5V
Logic Type	NAND Gate
Low Level Output Current	8 mA
Manufacturer	ON Semiconductor, ONSEMI
Manufacturer Part No.	MC74VHC00DTG
Manufacturer series	VHC
Max Propagation Delay @.	7.5ns @ 5V, 50pF
Maximum Operating Tempe.	+ 125 C
Mfr	ONSEMI
Minimum Operating Tempe.	- 55 C
Mounting	SMD
Mounting Style	SMD/SMT
Mounting Type	Surface Mount
Number of channels	4,
Number of Circuits	4
Number of Gates	4 Gate
Number of Input Lines	2
Number of Inputs	2
Number of inputs	2
Number of Lines In/Out	2 / 1
Number of Output Lines	1
Operating Temperature	-55?C ~ 125?C
Operating temperature	-55...125?C
Package	tube
Package / Case	14-TSSOP (0.173", 4.40m.
Package/Case	TSSOP-14
Packaging	tube
Product	NAND
Product Category	Logic Gates
Product Status	Active
Propagation Delay Time	11.4 ns
Quiescent current	40?A
Series	74VHC, MC74VHC00
Supplier Device Package	14-TSSOP
Supply Voltage - Max	5.5 V
Supply Voltage - Min	2 V
Technology	CMOS
Type of integrated circ.	digital
Voltage - Supply	2V ~ 5.5V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	TME	MC74VHC00DTG	0.27183	3	367		ONSEMI		0.27183 @ 3
	Future Electronics	5703012	0.28356	5472	423		ON Semiconductor		0.28356 @ 5472
	Hotenda	H2550446	0.37	1	3674		ON Semiconductor		0.37 @ 1
	Newark	42K1115	0.406	768	246		ONSEMI		0.406 @ 500
	RS Delivers	186-7303	0.624	1	96		onsemi		0.624 @ 1
	swatee.com	MC74VHC00DTG	0.85	1	2425		ON Semiconductor		0.85 @ 1
	Digi-Key	1480751	12.8395	1	367		onsemi		12.8395 @ 1
