QA1 MGML6TS

B00J151DAG

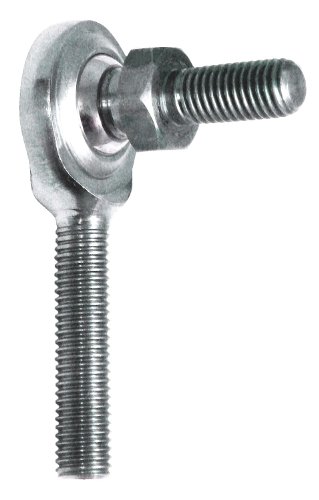

QA1 - MGML6TS - Stainless Steel/PTFE Race Rod End: Male Studded, 440C Stainless Steel Spherical, Left Hand

QA1 - MGML6TS - Stainless Steel/PTFE Race Rod End: Male Studded, 440C Stainless Steel Spherical, Left Handzoom

Attributes

Key Value
ApplicationLight Duty
Ball440C Stainless Steel Sp.
Ball Diameter12.7 mm
Ball MaterialStainless Steel
Ball Material Grade440C
Ball Stud Center Length29.76 mm
Ball Stud MaterialStainless Steel
Ball Stud Thread Direct.Left Hand
Ball Stud Thread Length11 mm
Ball Stud Thread SizeM6-1.0
Bearings440C SS Spherical Ball
Bore Diameter6 mm
Bore Diameter Tolerance+0.065/-0.012 in
ConstructionFollows SAE Specificati.
Country of Origin (subj.China
Dimension AM6 x 1.0
Dimension B10 mm
Dimension C14 mm
Dimension E19 mm
Dimension G36 mm
Dimension H22 mm
Dimension J45.5 mm
Dimension N9 mm
Head Outside Diameter19 mm
Head Width6.25 mm
Housing300 Series Stainless St.
Housing MaterialStainless Steel
Housing Material FinishChrome Plated
Inner Ring Width9 mm
ItemSpherical Rod End
Max. Angular Misalignme.23 Degrees
Maximum Ball Swivel23 Degrees
Overall Length45 1/2 mm
Race MaterialPTFE
Resistance PropertiesCorrosion Resistant
Rod End TypeSpherical Rod End
Self Lubricating BearingYes
Shank Thread DirectionLeft Hand
Shank Thread GenderMale
Shank Thread Length22 mm
Shank Thread SizeM6-1
Spherical Rod End TypeMale Studded
StandardsISO Certified 9001
Static Radial Load6,093 N
Static Radial Load Capa.6,093 N
Stud Length14 mm
System of MeasurementMetric
ThreadLeft Hand
Thread SizeM6 x 1.0
TypeMale Studded

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG579972628.01In Stock26Qa10.0528.0 @ 1
grainger.caGGF39N52551.619322721In StockQA10.0551.61932272 @ 1
thumbzoomsustainablesupply.comC160243952.281In StockQA10.0552.28 @ 1
thumbzoomRaptor SuppliesAC8EWK73.298161In StockQA173.29816 @ 1
