Schneider Electric 9001KR2UH13

B00E2YBWUW

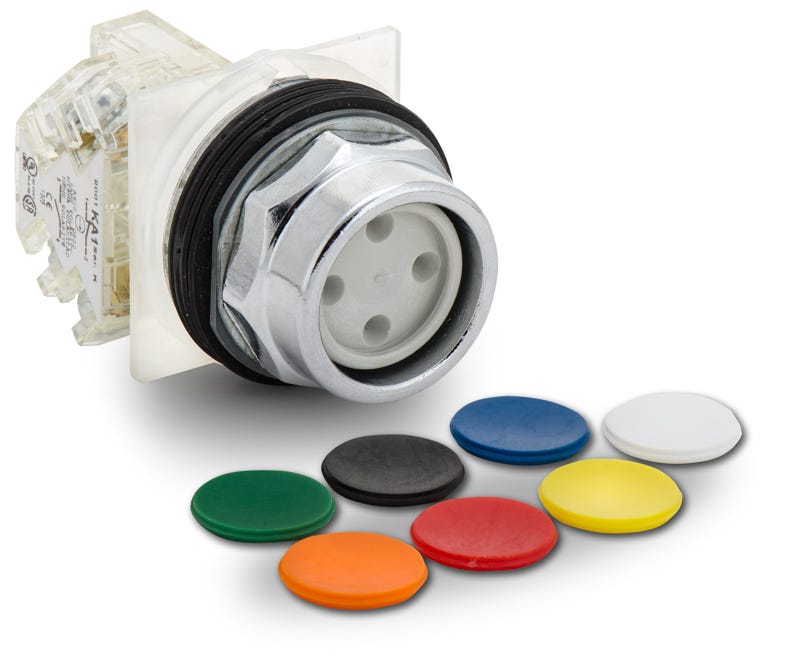

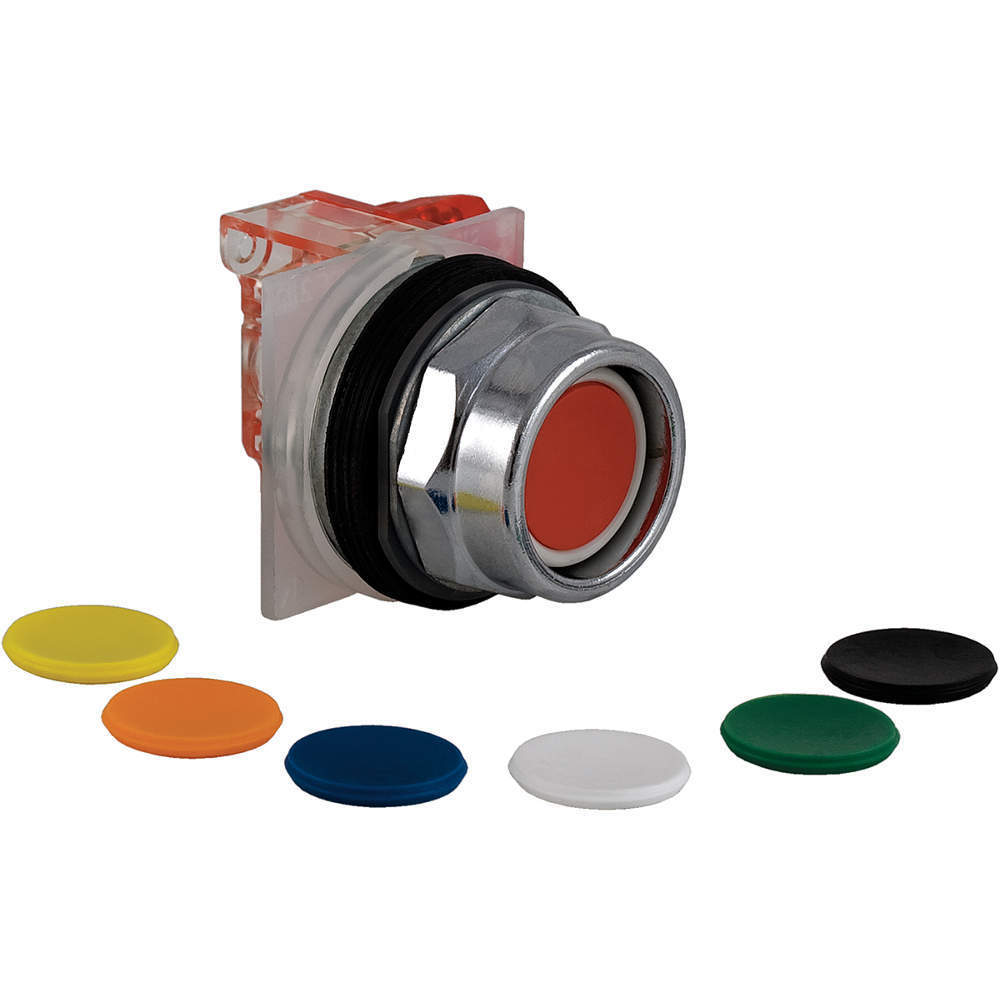

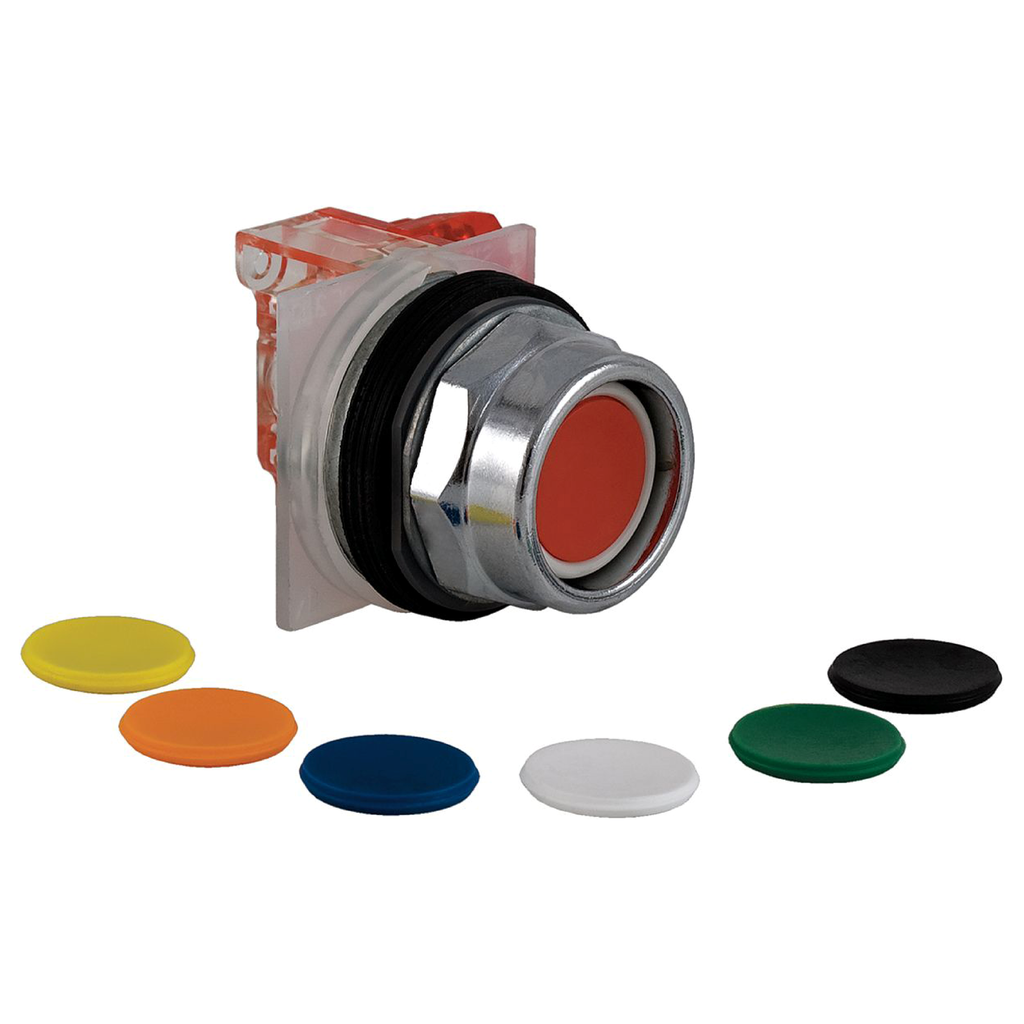

Schneider Electric 9001KR2UH13 Non-Illuminated Push Button, Universal

Schneider Electric 9001KR2UH13 Non-Illuminated Push Button, Universalzoom

Attributes

Key Value
[Icm] Rated Short-Circu.12 kA 600 V AC-15, 7200.
[Ie] Rated Operational .3 A 240 V, AC-15, A600-.
[Ith] Conventional Free.10 A
[Ui] Rated Insulation V.250 V 3)IEC 60947-1
[Uimp] Rated Impulse Wi.2.5 kV IEC 60947-1
ActionMomentary Push
ActuationSpring Return
Actuator Color7 Color ; Black ; Red ;.
Actuator TypeRound Flush 30mm, Round.
Ambient Air Temperature.-25-70 ?C
Ambient Air Temperature.-40-70 ?C
Amperage10A
Amperage Rating3A
Basic MaterialMetal
BezelChrome, Chrome Plated Z.
Bezel MaterialMetal
Body StyleStandard
BrandSchneider Electric
Cad Overall Depth56 mm
Cad Overall Height45 mm
Cad Overall Width48 mm
California Proposition .Lead and lead compounds.
Cap/Operator Or Lens Co.7 colours choice
Catalog Number9001KR2UH13
CategorySwitches
China Rohs RegulationX
CircuitSPDT
Circularity ProfileN/A
ColorUniversal
Color - Actuator/Cap-
ColourUniversal
Connection TypeScrew Clamp Terminals 1.
Connections - TerminalsScrew Clamp Terminals 1.
Contact Form1NO/1NC, 1NO ; 1NC
Contact Operation1 C/O, Standard
Contact Rating10A @ 600V AC, 10 A @ 6.
ContactsSilver Alloy
Contacts Materialsilver alloy contacts
Contacts Type And Compo.1 C/O
Country of OriginMX - Mexico, Mexico
Current Rating10 A
Current Rating (Amps)3A (AC), 550mA (DC)
Depth56 mm
DescriptionPUSH BUTTON 600VAC 10A .
Detailed DescriptionPushbutton Switch SPDT .
Device Presentationcomplete product
Device Short Name9001K
Diameter30 mm
Digi-Key Part Number4008-9001KR2UH13-ND
ECCNEAR99
Electrical Life-
Electrical Shock Protec.class II IEC 61140
Environmental DisclosureENVPEP121006EN
Eu Rohs DirectivePro-active compliance (.
FeaturesFinger-Safe Terminals, -
Gtin785901856870
Head MaterialMetal
Head TypeRound
Height45 mm
IEC RatingIP66 IEC 60529
Illumination Type, Color-
Illumination Voltage (N.-
IncludesBlack, Red, Green, Yell.
Ingress ProtectionIP66 - Dust Tight, Wate.
Insulation250 V 3)IEC 60947-1
Ip Degree Of ProtectionIP66 IEC 60529
IP Rating66, IP66
ItemNon-Illuminated Push Bu.
Item Typepush-button
Knob Stylerecessed
LegendNo legend
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.9001KR2UH13
Manufacturer Standard L.1 Weeks
MaterialMetal
Mechanical Durability5000000 cycles
Mechanical Life5,000,000 Cycles
Mercury FreeYes
MfrSchneider Electric
MountingPanel Mount
Mounting Diameter30 mm
Mounting Hole Size30 mm
Mounting TypePanel Mount, Front, Pan.
Mpn9001KR2UH13
NEMA Contact Rating Des.A600/Q600
Nema Degree Of Protecti.NEMA 1 || NEMA 12 || NE.
Nema RatingNEMA 1/2/3/3R/4/6/12/13
NEMA RatingNEMA 4, 1, 12, 13, 2, 3.
Net Weight0.136 kg
Number of Operators1
Operating Positionany position
Operating Temperature-25?C ~ 70?C
OperationMomentary
Operator Additional Inf.metal guard
Operator Profilerecessed, 7 colours cho.
Operator ShapeOctagonal
PackageBox
Panel Cutout DimensionsCircular - 30.00mm Dia
Positive Openingwithout
Product CertificationsNEMA || UL 508
Product Or Component Ty.push-button
Product StatusActive
Protective TreatmentTC
Range Of ProductHarmony 9001K
Rated Breaking Capacity3 kA 240 V AC-15, 720 V.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
Series9001K, Harmony 9001K Se.
Shape Of Screw Headcross slotted
Shape Of Signaling Unit.Octagonal
Shock Resistance50 gn IEC 60068-2-27
Short-Circuit Protection10 A cartridge fuse IEC.
Size30 MM,45 MM,48 MM,56 MM.
Special FeaturesEXTENDED METALLIC GUARD
Standard50 GN IEC 60068-2-27,7 .
StandardsEN/IEC 60947-5-4 || JIS.
Sub Brand9001K
Sustainable Offer StatusGreen Premium product
Switch FunctionOn-On
Terminal ConnectionPressure Plate
Terminal TypeScrews
Terminals Description I.(13-14-11-12)OF
TerminationScrew
Termination StyleScrew Terminal
Tightening Torque0.8-0.8 N.m IEC 60947-1
TypePush Button, Standard
Type Of OperatorSpring Return
Type of OperatorExtended Button
UNSPSC39122216
Upc785901856870
UPC785901856870
UPC Code785901856870
Vibration Resistance7 gn 2-500 Hz)IEC 60068.
Voltage600V
Voltage Rating600 V
Voltage Rating - AC240 V
Voltage Rating - DC125 V
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width48 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsuperbreakers.com9001KR2UH1349.911In StockSchneider Electric49.91 @ 1
RS Delivers515-86463.468114Schneider Electric63.468 @ 1
Graybar9400724465.28481In StockSquare D (Schneider Electric)65.2848 @ 1
thumbzoomkempstoncontrols.co.uk9001KR2UH1368.57176951In StockSchneider68.5717695 @ 1
thumbzoomZoroG324570681.99119Schneider Electric0.381.99 @ 1
Newark50F463783.431In StockSCHNEIDER ELECTRIC83.43 @ 1
thumbzoommostelectric.com9001KR2UH1388.5122SQUARE D/TELEMECANIQUE88.5 @ 1
us.rs-online.com7006035491.1311Schneider Electric91.13 @ 1
grainger.caTLQ9001KR2UH1392.308007081In StockSQUARE D0.392.30800708 @ 1
thumbzoommayerelectric.comSQD9001KR2UH1393.121In StockSCHNEIDER ELECTRIC0.299293.12 @ 1
thumbzoomsustainablesupply.comC120483698.851In StockSchneider Electric0.398.85 @ 1
thumbzoomDigi-Key17174997108.391In StockSchneider Electric108.39 @ 1
thumbzoomNational Supply Network55489439121.631In StockSquare D121.63 @ 1
thumbzoombscsource.com9001KR2UH13146.591In StockSquare D146.59 @ 1
thumbzoomcrescentelectric.com16086147.61In StockSchneider Electric147.6 @ 1
thumbzoomRaptor SuppliesAG7DDX164.5856551In StockSCHNEIDER ELECTRIC164.585655 @ 1
