Square D by Schneider Electric 9080GA6

mpn9080GA6
brandname: Square D
manufacturername: Square D

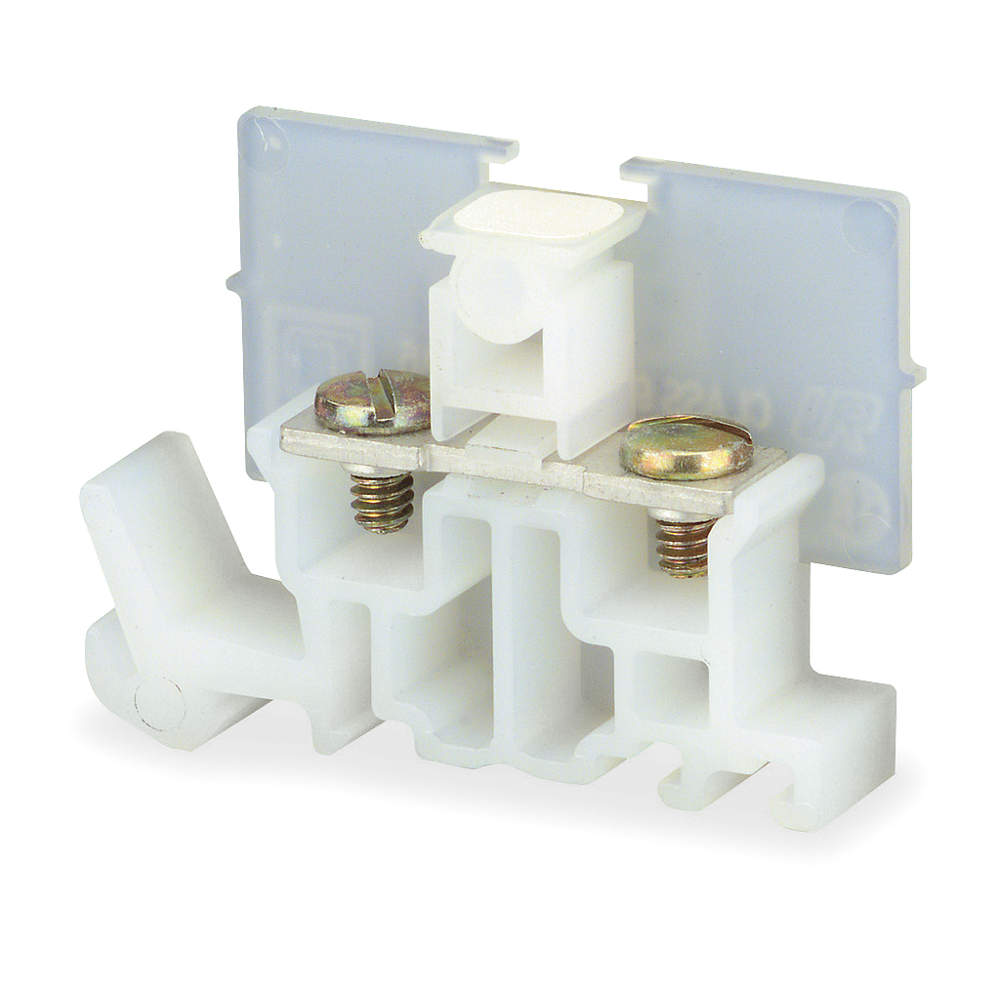

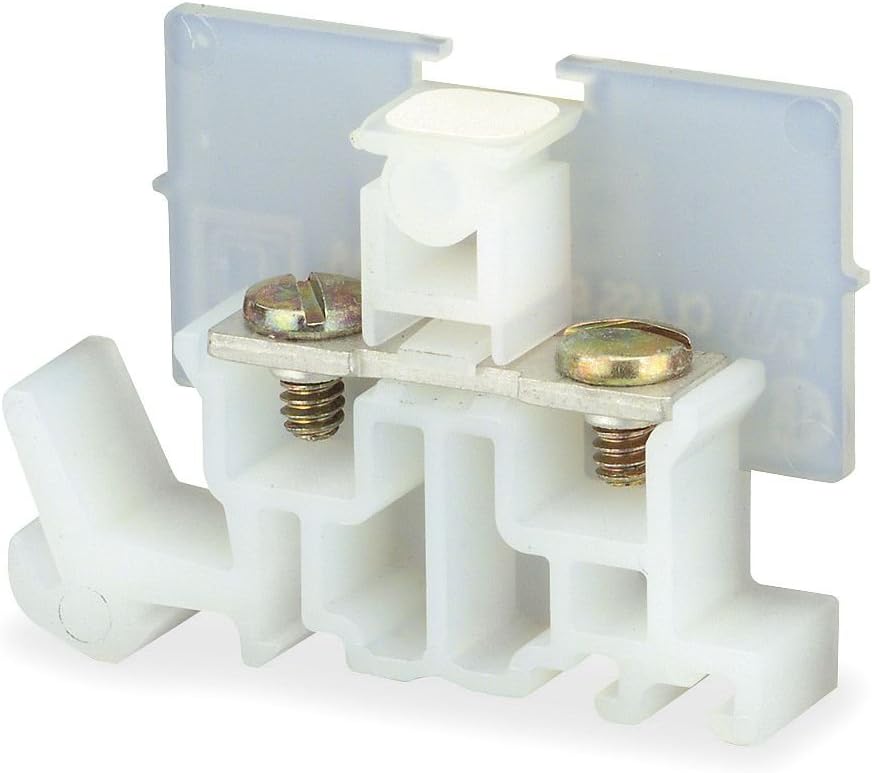

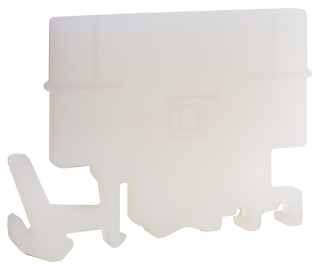

Square D by Schneider Electric 9080GA6 TERMINAL BLOCK, DIN RAIL, 2POS, 22-12AWG

Brand: Square D by Schneider Electric
PartNumber: 9080GA6
Manufacturer: SQUARE D BY SCHNEIDER ELECTRIC
Label: SQUARE D BY SCHNEIDER ELECTRIC

Attributes

Key	Value
2-Pole Jumper Compatibi.	2DD04
2-Pole Jumpers	2DD04
6-Pole Jumper Compatibi.	2DD05
Amps	40 A
Application	9080G,GP6B
ASIN	B00HPLKHQY
Brand	Square D, Square D by S.
Catalog Number	9080GA6
Category	Connectors, Interconnec.
Channel Size	35mm/GH
Circuit Protection Type	None
Color	Natural
Color Family	Natural
Compatible Grainger Par.	2DC93, 2DC94, 2DC97, 2D.
Compatible Manufacturer.	9080 GH31, GH10, GH11, .
Connection	Screw terminal zinc pla.
Connection Type	Screw Clamp
Country of Origin	MX - Mexico, Mexico
Current	40 A
Current - UL	40 A
Current Rating	40 A
Current Stock	397
Depth	1.8 in
Description	TERMINAL BLOCK 600V 40A.
Detailed Description	Terminal Block Connecto.
Digi-Key Part Number	4008-9080GA6-ND
Disconnect Type	-
ECCN	EAR99
End Barrier	5B359
End Barrier Compatibili.	5B359
Features	-
For Channel Rail Size	35 mm
For Conductor Material	Copper
For Conductor Type	Solid, Stranded
For Fuse Diameter	3 1/32 in
For Maximum Wire Size	12 AWG
For Minimum Wire Size	22 AWG
Fuse Type	-
Height	1.48 in
Housing Colour	Natural
Housing Material	Nylon
Includes	Adhesive Backed Strips,.
International Shipping	No
Item	Terminal Block
Item model number	9080GA6
Item Type	Terminal block;GP6B
Lead Time	Expected to ship in 1-2.
Made in USA	No
Manufacturer	Schneider Electric
Manufacturer Product Nu.	9080GA6
Manufacturer Standard L.	1 Weeks
Material	Nylon block;Tin plated .
Material - Insulation	Polyamide (PA), Nylon
Material Flammability R.	-
Max. Wire Size	12 AWG
Maximum Operating Tempe.	257 Degrees F
Maximum Voltage	600V AC/DC
Mfr	Schneider Electric
Min. Wire Size	22 AWG
Minimum Operating Tempe.	-40 Degrees F
Mounting	Din Rail
Mounting Type	DIN
Mpn	9080GA6
Number of Connections	2
Number of Levels	1
Number of Poles	1
Number of Positions	2
Number of Tiers	2
Overall Depth	0.37 in
Overall Length	1.48 in
Overall Width	1.8 in
Package	Box
Pieces per Foot	32
Product Status	Active
RoHS Compliant	Yes
Series	Square D, 9080 Series
Size	0.37
SKU	ZO-G1467715
Special Features	Fingersafe DIN 57470
Standard	CE;UL recognized E60616.
Standards	UL94V2
Stripping Length	-
SubCategory	Electrical
Temp. Range	-40 Degrees to 275 Deg.
Terminal - Width	9.0mm
Terminal Block Type	Flat Terminal Connector
Terminal Type	Flat Terminal Connectors
Termination Screw Size	#6-32 x 5/16 in
Termination Style	Screw
Torque	20 lb-in
Type	Feed Through
UL 94 Flammability Rati.	V-2
UNSPSC	39121410
UNSPSC Code	32000000
UPC	785901154952
UPC Code	785901154952
Voltage	600V AC
Voltage - IEC	-
Voltage - UL	600V
Voltage Rating	600 V AC/DC
Warranty Description	Contractual Warranty:18.
Width	0.38 in
Wire Gauge or Range - A.	12-22 AWG
Wire Gauge or Range - m.	-
Wire Size	AWG 22...AWG 12 copper
Wire Size Ranges	22 AWG - 12 AWG

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
steinerelectric.com	32289	1.73	1	50		Square D?		1.73 @ 50
Zoro	G1467715	1.85	1	737		Square D	0.02	1.85 @ 50
us.rs-online.com	70061004	1.96	1	60		Square D		1.96 @ 50
Graybar	88250246	1.96	1	50		Square D (Schneider Electric)		1.96 @ 50
sustainablesupply.com	C1203655	2.49	1	50		Square D	0.02	2.49 @ 50
National Supply Network	69682573	2.5198	1	50		Square D		2.5198 @ 50
Newark	11R7947	2.54	1	50		SQUARE D BY SCHNEIDER ELECTRIC		2.54 @ 50
Digi-Key	17175018	2.9552	50	50		Schneider Electric		2.9552 @ 50
crescentelectric.com	3715	3.11	1	480		Square D by Schneider Electric		3.11 @ 50
Raptor Supplies	AG7CHT	3.508479	1	50		SQUARE D		3.508479 @ 50
AmazonSC	B00HPLKHQY	3.67	1	50		Square D by Schneider Electric		3.67 @ 50
grainger.ca	SQD9080GA6	4.78306154	1	50		SQUARE D	0.02	4.78306154 @ 50
simsupply.com	ZO-G1467715	8.17	1	397		Square D		8.17 @ 50
AmazonTP	B00HPLKHQY	8.94	1	50	2	SQUARE D BY SCHNEIDER ELECTRIC		8.94 @ 50
AmazonUNK	B00HPLKHQY	8.94	1	50		SQUARE D BY SCHNEIDER ELECTRIC		8.94 @ 50
gordonelectricsupply.com	9080GA6	74.5	1	50	10	SQUARE D		74.5 @ 50
standardelectricsupply.com	173111	86.0	1	80		Square D		86.0 @ 50
